Radium Large Fuel Vent Charcoal Canister Universal

Radium Large Fuel Vent Charcoal Canister Universal

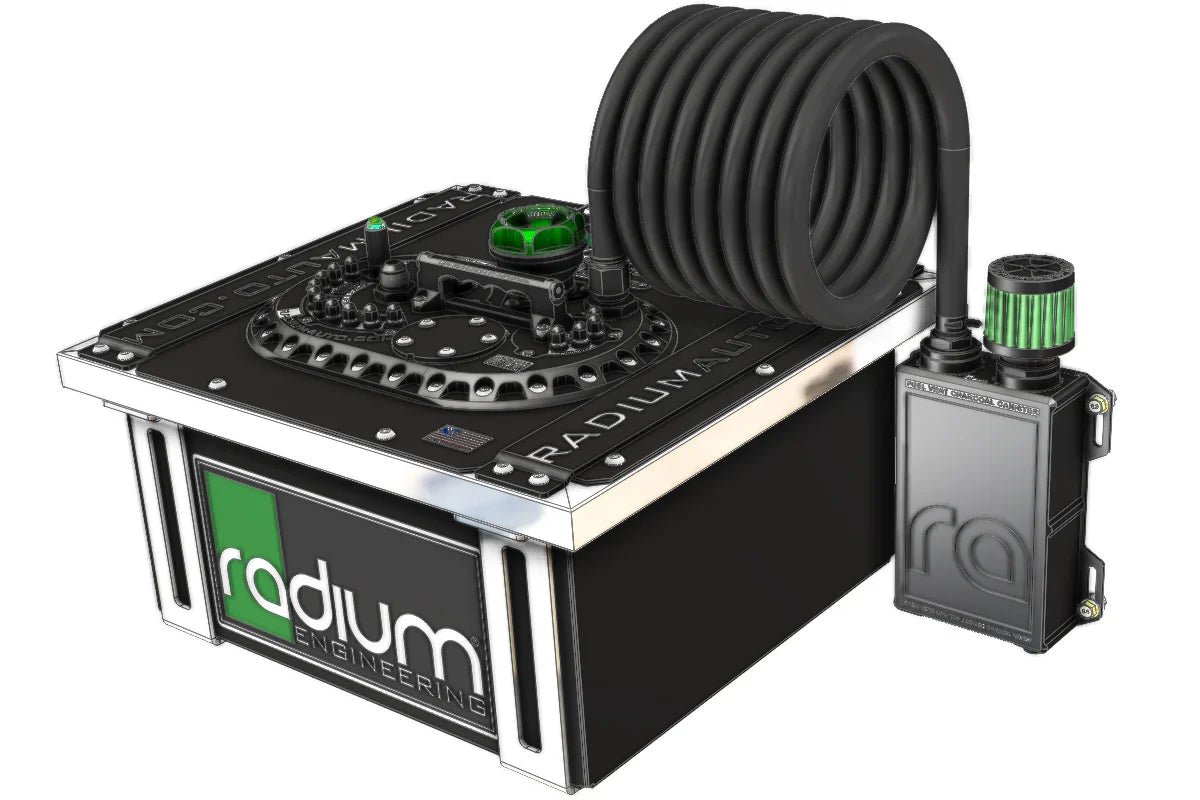

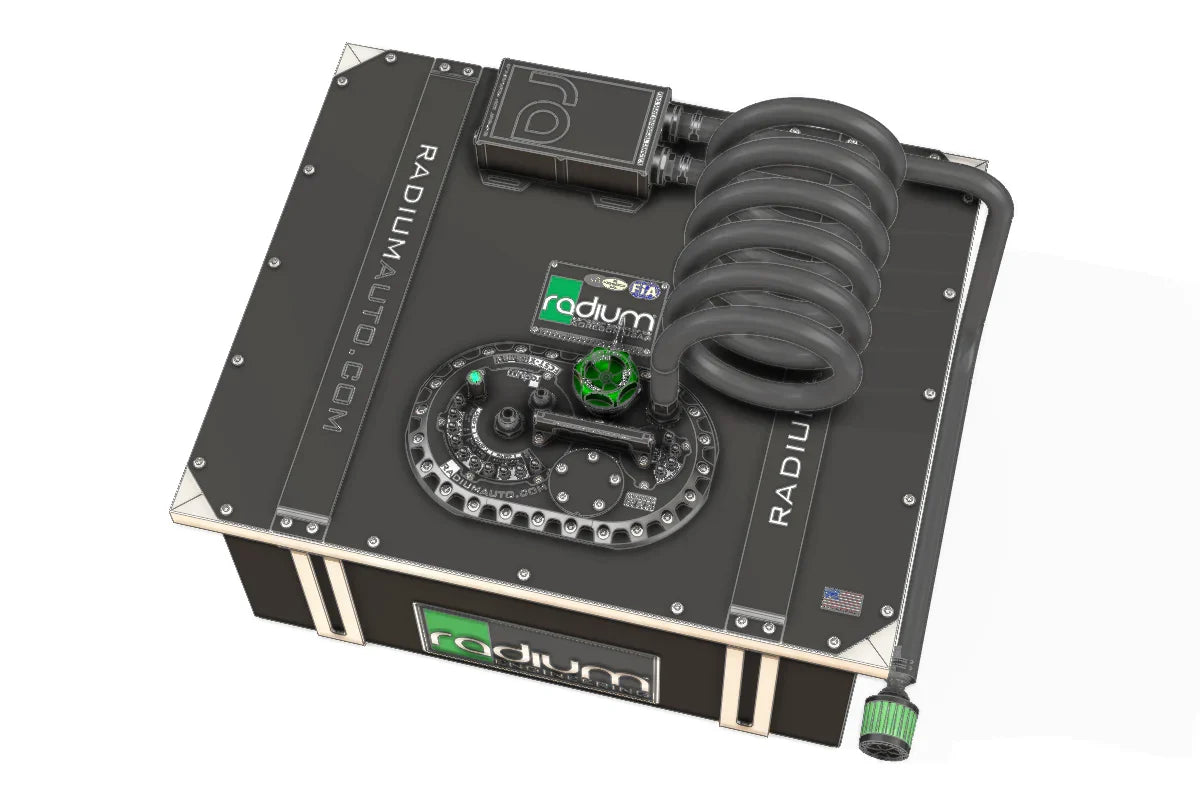

Application: Universal – EFI and carburetted fuel tank vent systems, incl. Radium fuel cell surge tanks
Part Type: Fuel vent charcoal canister (standard size)
Part Number: 20-1828-00, 20-1828-08, 20-1828-12

Radium fuel vent charcoal canisters filter fuel vapour odours from the fuel tank vent system on both EFI and carburetted vehicles. In Radium testing, a combustible gas detector read above 10,000 ppm at the vent without a canister and under 50 ppm with one fitted, while a dry break dump can flow test showed a negligible pressure drop.

The standard-size 20-1828 canister holds about five times more activated carbon than the compact version, so it needs less frequent servicing. Vibratory-packed activated carbon sits inside a 150 micron strainer and anodised aluminium baffle so no loose carbon can escape, and the canister can be recharged with a service kit.

Key Features

• Vapour Filtration: Reduces outlet fuel vapour to under 50 ppm in Radium testing

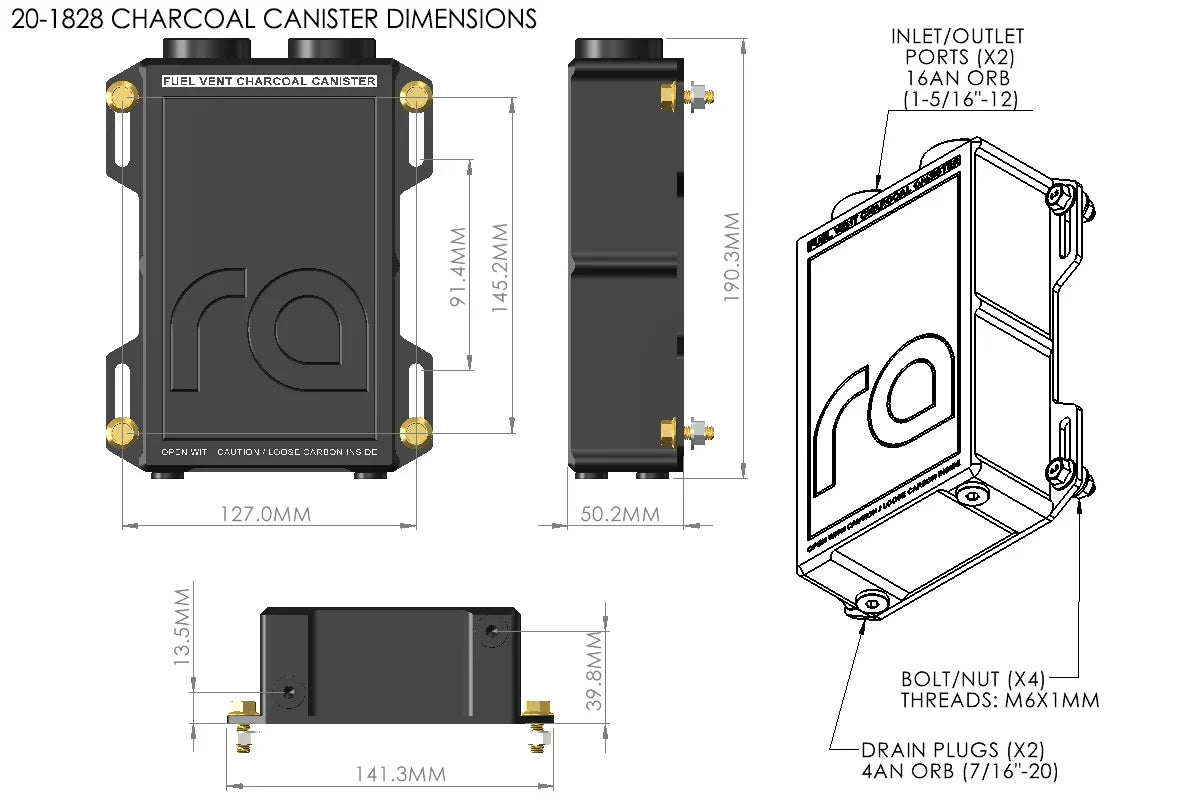

• High Flow: 16AN ORB (1-5/16"-12) female ports, usable interchangeably as inlet or outlet
• Drain Ports: Two 4AN ORB (7/16"-20) drain ports with preinstalled plugs – one can take a petcock drain kit
• Contained Media: Activated carbon inside a 150 micron strainer and anodised aluminium baffle
• Construction: CNC machined 6061 aluminium, type-II anodised
• Serviceable: Recharge with fresh carbon and a new strainer using service kit 20-1828-SK

Available Configurations

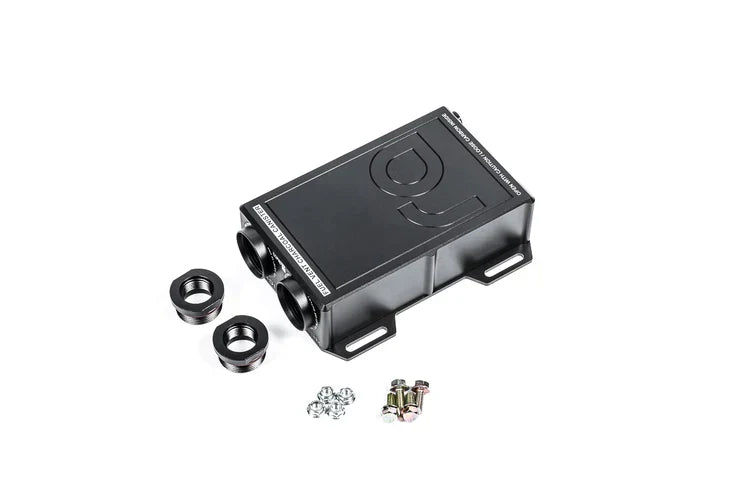

• 20-1828-00: Universal – includes two 16AN ORB male to 10AN ORB female couplers

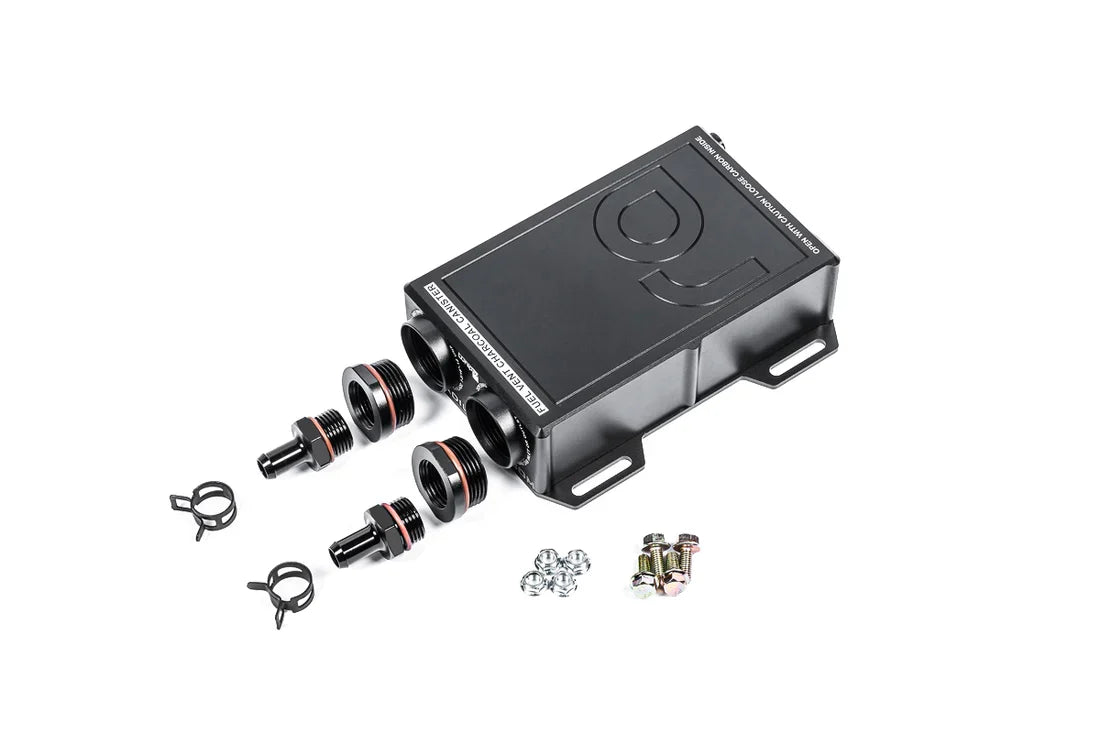

• 20-1828-08: Standard flow – for 1/2" fuel vent hose; pairs with vent kit 20-0484-08

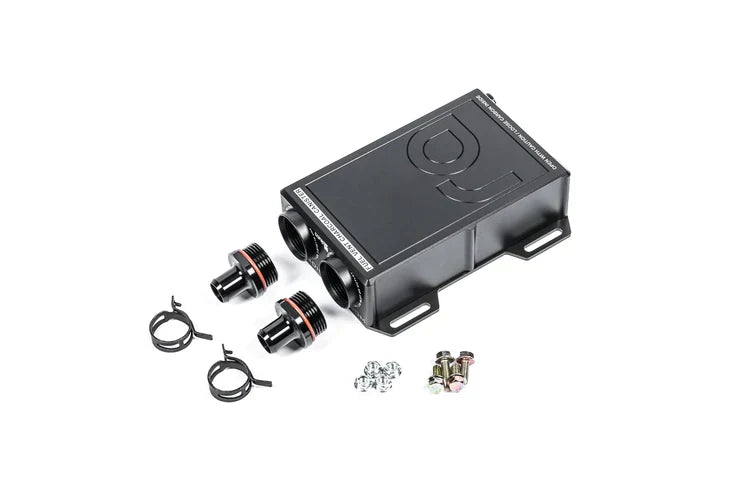

• 20-1828-12: High flow – for 3/4" fuel vent hose; pairs with vent kit 20-0484-12, and the 3/4" barb accepts an air filter directly

Optional Parts

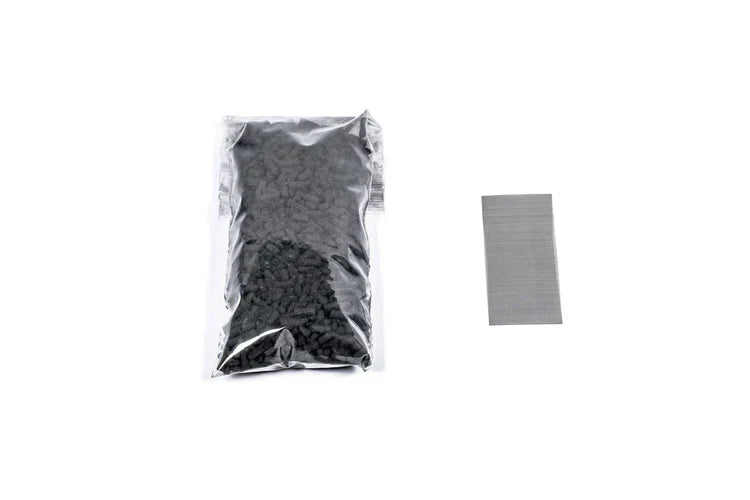

• Radium Fuel Vent Charcoal Canister Service Kit Standard/Compact/Cannister (20-1828-SK) – recharges the canister
• Radium Fuel Cell Vent Kit - 8AN (20-0484-08) – vent kit for the -08 canister
• Radium Fuel Cell Vent Kit - 12AN (20-0484-12) – vent kit for the -12 canister
• Radium Air Filter 0.75" ID (18-0042) – 3/4" air filter for the vent outlet
• Radium Catch Can Petcock Drain Kit (20-0024) – fits one of the 4AN ORB drain ports

Important Notes

• A section of vent hose upstream of the air filter must sit higher than the fuel filler
• Vent line loops are recommended to keep debris out of the fuel system
• Mount the air filter at the rear of the vehicle, away from the exhaust
• Most classic car tanks use a 1/4" (6mm), 5/16" (8mm) or 3/8" (10mm) vent line
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
