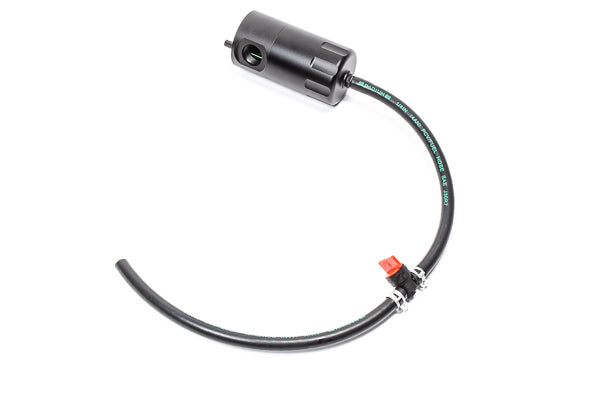

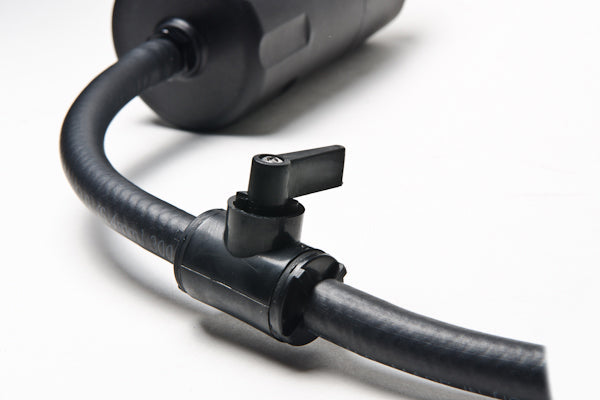

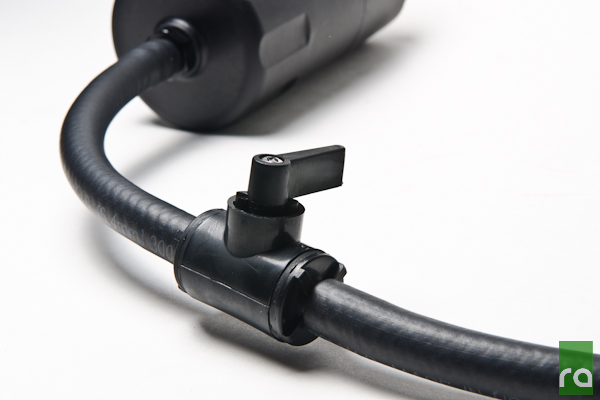

Radium Catch Can Petcock Drain Kit

Radium Catch Can Petcock Drain Kit

Application: Radium catch cans and any can or reservoir with a 4AN ORB drain port
Part Type: Catch can remote drain kit
Part Number: 20-0024

The Radium Catch Can Petcock Drain Kit adds a ball valve to the bottom port of your catch can, allowing any Radium catch can to be drained remotely without unscrewing the canister body.

The 4AN ORB barbed fitting installs in the bottom of the catch can in place of the original 4AN plug. The hose is cut to length to place the valve where you want it, and again after the valve to suit your preferred draining point under the car.

Key Features

• Remote Draining: Empty the catch can without removing the canister body
• Direct Fitment: 4AN ORB barbed fitting replaces the original 4AN drain plug
• Rated Ball Valve: 1/4" barbs, rated to 862 kPa (125psi) at 60°C (140°F)
• Flexible Routing: Hose is cut to length for the desired valve location and drain point

What's Included

• Anodised 4AN ORB barbed adapter fitting, black
• Ball valve with 1/4" barbs, rated 862 kPa (125psi) at 60°C (140°F)
• 1.2m (4ft) Radium 1/4" PCV hose
• Spring clamps

Important Notes

• Vehicle-specific catch can kits must be checked for space to install and route the hose and valve – many kits will not have room for the drain kit
• Secure both hoses at the valve with the included spring clamps – no hose clamp is needed at the catch can barb

Vehicle Fitment

• All Radium Fluid Lock and standard (non-Fluid Lock) catch cans
• Radium VTE Competition Catch Cans
• Radium VTA Competition Catch Cans
• Any can or reservoir with a 4AN ORB drain port

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
