Radium Fuel Cell Vent Kit - 8AN

Radium Fuel Cell Vent Kit - 8AN

Application: Universal – fuel cells with an 8AN male vent fitting, incl. Radium FCST and FCST-X
Part Type: Fuel cell vent kit, 8AN, standard flow
Part Number: 20-0484-08

A fuel cell vent lets air escape as the cell is filled and lets filtered air back in as fuel is used, so the tank can breathe and does not pressurise during normal operation. The Radium 8AN Fuel Cell Vent Kit is designed for standard-fill systems using direct or remote fill necks, and it can use the vent fitting supplied with the Radium FCST.

Radium notes that these vent kits work well with its Fuel Vent Charcoal Canister kits.

Key Features

• Standard-Flow: For direct or remote fill neck systems
• Filtered Breathing: Radium air filter prevents contamination entering the cell
• Complete Kit: 8AN push-lok hose end, filter, hose and adapter
• 1.83m (6ft) of 1/2" Hose: Plenty of length for correct vent routing

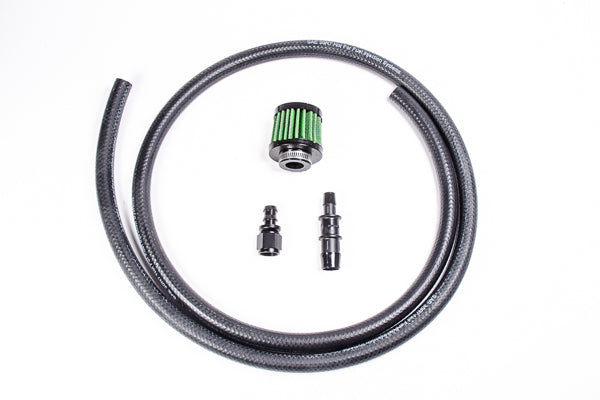

What's Included

• 8AN push-lok hose end
• Radium air filter
• 1.83m (6ft) of 1/2" PCV hose
• 1/2" to 3/4" hose adapter

Optional Parts

• Radium Fuel Cell Vent Kit - 12AN (20-0484-12) – high-flow version for quick-fill (dry break and dump can) systems

Important Notes

• Requires an 8AN male vent fitting on the fuel cell – the vent fitting included with the Radium FCST can be used

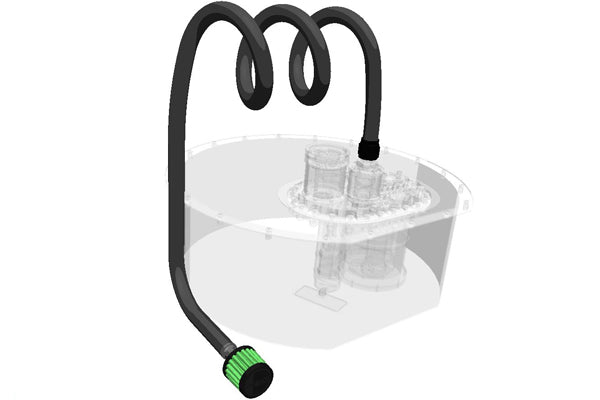

• Route the vent hose upward from the cell so any fuel in the line drains back, then briefly towards the front of the vehicle to limit sloshing
• Add vertical loops to act as expansion chambers and keep the total vertical height at or above approximately 305mm (12in)
• On remote-fill systems the loops must sit higher than the fill point; loops are also recommended to keep debris out
• Terminate the vent outside the cabin, below and behind the fuel cell, and away from the exhaust

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
