Radium Fuel Cell Vent Kit - 12AN

Radium Fuel Cell Vent Kit - 12AN

Application: Universal – fuel cells with a 12AN male vent fitting, incl. Radium FCST and FCST-X
Part Type: Fuel cell vent kit, 12AN, high flow
Part Number: 20-0484-12

A fuel cell vent lets air escape as the cell is filled and lets filtered air back in as fuel is used, so the tank can breathe and does not pressurise during normal operation. The Radium 12AN Fuel Cell Vent Kit is the high-flow version, designed for quick-fill systems that typically use a dry break and dump can.

Radium notes that these vent kits work well with its Fuel Vent Charcoal Canister kits.

Key Features

• High-Flow: For quick-fill systems with a dry break and dump can
• Filtered Breathing: Radium air filter prevents contamination entering the cell
• Complete Kit: 12AN push-lok hose end, filter, hose and union
• 1.83m (6ft) of 3/4" Hose: Plenty of length for correct vent routing

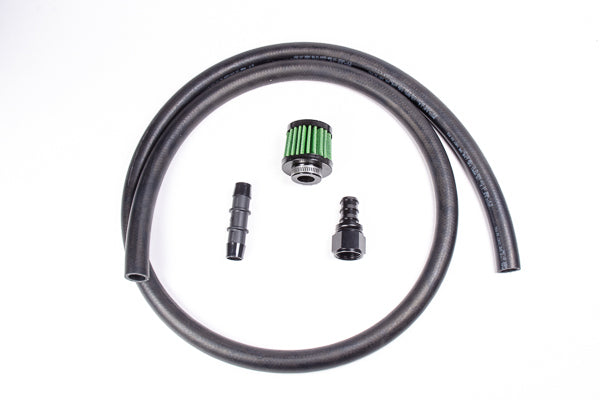

What's Included

• 12AN push-lok hose end
• Radium air filter
• 1.83m (6ft) of 3/4" PCV hose
• 3/4" hose union

Optional Parts

• Radium 12AN ORB 5-Bolt SAE Adapter (20-0439) – adapter for older FCST units (20-014X-XX) with the original small vent
• Radium Fuel Cell Vent Kit - 8AN (20-0484-08) – standard-flow version for direct or remote fill necks

Important Notes

• Requires a 12AN male vent fitting on the fuel cell
• On Radium FCST and FCST-X units, 12AN vent kits require a 12AN DSV (Radium 20-0462, 12AN ORB to 12AN male, quick fill) – contact us to order

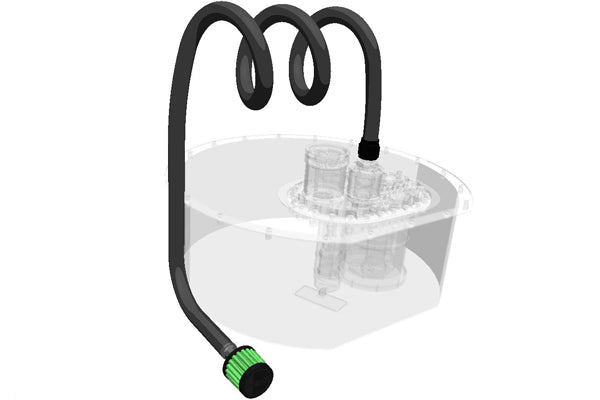

• Route the vent hose upward from the cell so any fuel in the line drains back, then briefly towards the front of the vehicle to limit sloshing
• Add vertical loops to act as expansion chambers and keep the total vertical height at or above approximately 305mm (12in)
• On remote-fill systems the loops must sit higher than the fill point; loops are also recommended to keep debris out
• Terminate the vent outside the cabin, below and behind the fuel cell, and away from the exhaust

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
