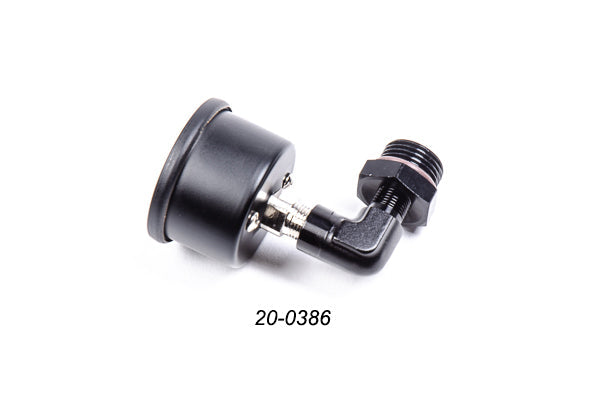

Radium Engineering Fuel Pressure Gauge w/8AN ORB Adapter

Radium Fuel Pressure Gauge w/8AN ORB Adapter

Application: Universal – any 8AN ORB female port
Part Type: Fuel pressure gauge with 8AN ORB adapter and 90° fitting
Part Number: 20-0386

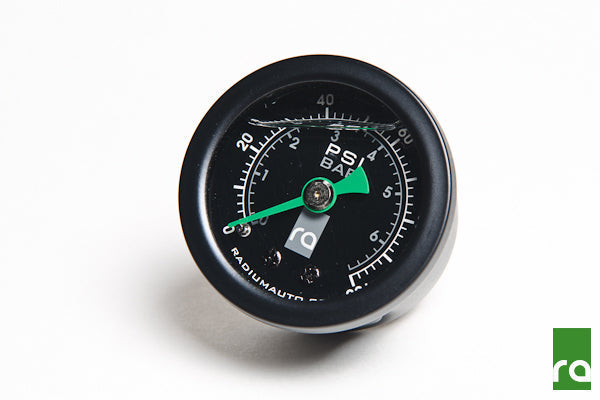

The Radium Fuel Pressure Gauge is a high-accuracy, silicone-filled gauge suitable for all fuelling applications. The silicone fluid stops the needle vibrating so readings are easy to take, and it reads 0-100 psi (0-6.9 bar) at ±2% accuracy through an acrylic lens.

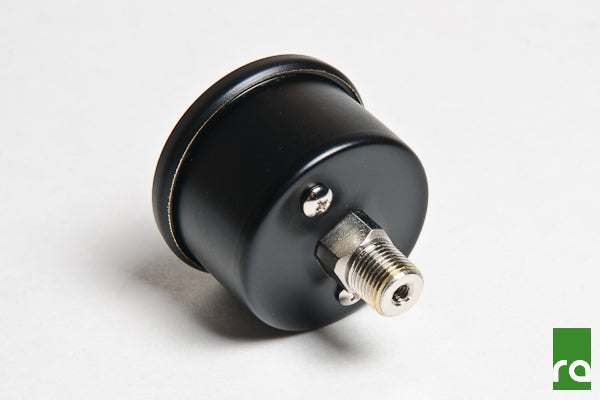

The gauge has a rugged stainless steel case with a nickel-plated 1/8" NPT male fitting. The 20-0386 kit adds an 8AN ORB to 1/8" NPT adapter and a 90° 1/8" NPT fitting, so the gauge can be mounted to any 8AN ORB port and angled for visibility.

Key Features

• High Accuracy: ±2% across 0-100 psi (0-6.9 bar)
• Silicone Filled: Damps needle vibration for steady readings
• Rugged Case: Stainless steel case with acrylic lens
• 8AN ORB Adapter: 8AN ORB to 1/8" NPT adapter included
• 90° Fitting: 1/8" NPT male to 1/8" NPT female 90° fitting included
• Finish: Black bezel and housing

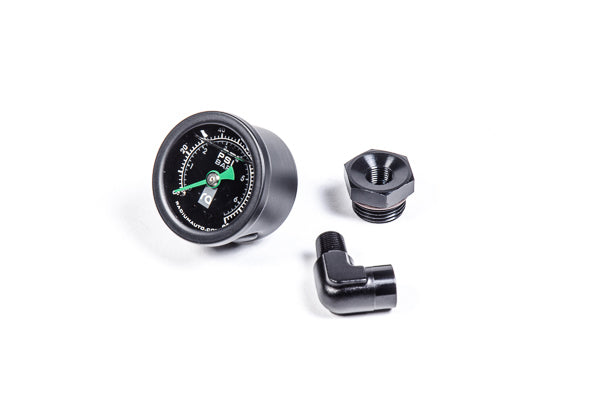

What's Included

• 0-100 psi fuel pressure gauge
• 8AN ORB to 1/8" NPT adapter fitting
• 90° 1/8" NPT male to 1/8" NPT female fitting

Optional Parts

• Radium Fuel Pressure Gauge 0-100psi (20-0029) – Gauge only
• Radium Fuel Pressure Gauge 0-100psi w/8AN ORB Adaptor (20-0075) – Gauge with 8AN ORB adapter, no 90° fitting
• Radium Fuel Pressure Gauge w/ 6AN Inline Adapter (20-0152) – Gauge with 6AN inline tee
• Radium Fuel Pressure Gauge With 90 Deg Adapter (20-0407) – Gauge with 90° fitting only

Important Notes

• The small internal silicone bubble is normal
• Over-pressurising the gauge can permanently misalign the needle calibration
• Use PTFE thread sealant paste or tape on NPT threads – hand tighten, then 1.5 to 3 turns past hand tight with a spanner
• Do not thread the gauge in by gripping the gauge body – this damages the gauge

Vehicle Fitment

• Universal – see Application

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
