Radium Fuel Pressure Gauge w/ 6AN Inline Adapter

Radium Fuel Pressure Gauge w/ 6AN Inline Adapter

Application: Universal – AN-plumbed fuel systems
Part Type: 0-100 psi fuel pressure gauge with 6AN inline tee
Part Number: 20-0152

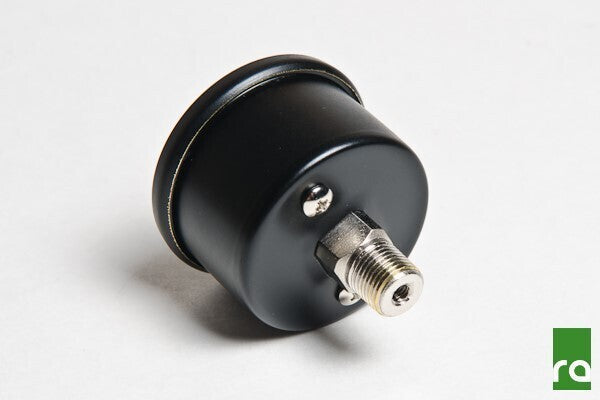

The Radium Fuel Pressure Gauge is a high-accuracy gauge suitable for all fuelling applications. Its acrylic lens and silicone-filled dial read 0 to 100 psi (0 to 6.9 bar) with ±2% accuracy, and the silicone fluid stops the needle vibrating for easy reading.

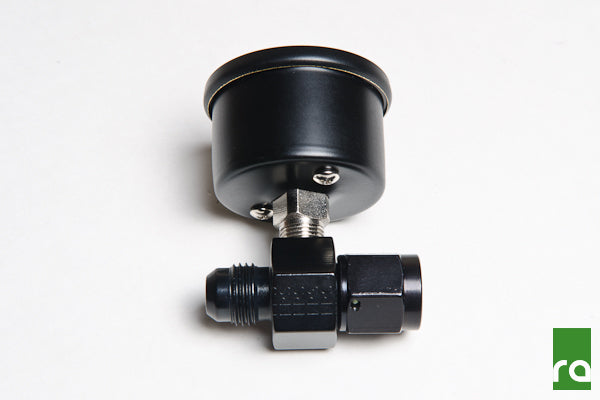

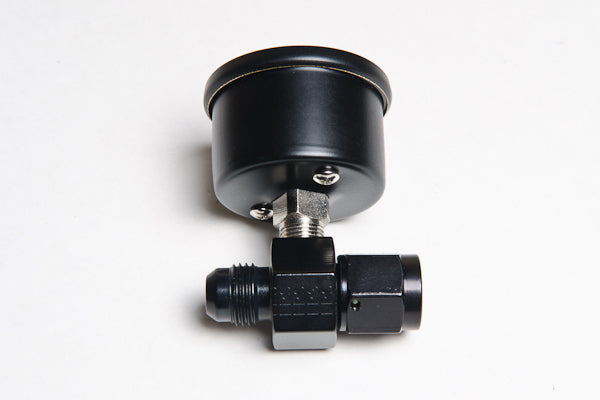

This version is supplied with a 6AN inline tee fitting so the gauge can be plumbed straight into a 6AN fuel line.

Key Features

• 0-100 psi Range: Reads 0-100 psi (0-6.9 bar) with ±2% accuracy
• Silicone Filled: Damps needle vibration for a steady reading
• Rugged Case: Stainless steel 1-5/8in OD case with 1-3/4in OD bezel
• 1/8in NPT Fitting: Nickel-plated male 1/8in NPT
• 6AN Inline Tee: Included for direct installation into a 6AN line
• Black Finish: Black bezel and housing

What's Included

• 1x 0-100 psi fuel pressure gauge
• 1x 6AN inline tee fitting

Important Notes

• The small bubble inside the silicone fluid is normal
• Overpressurising can permanently misalign the needle calibration
• Always use PTFE thread sealant paste or tape on the NPT threads
• Do not thread the gauge in by gripping the gauge body – hand tighten gently, then finish with a wrench 1.5 to 3 turns past hand tight

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
