Radium Fuel Pressure Gauge 0-100psi

Radium Fuel Pressure Gauge 0-100psi

Application: Universal
Part Type: Fuel pressure gauge, 0–100psi (gauge only)
Part Number: 20-0029

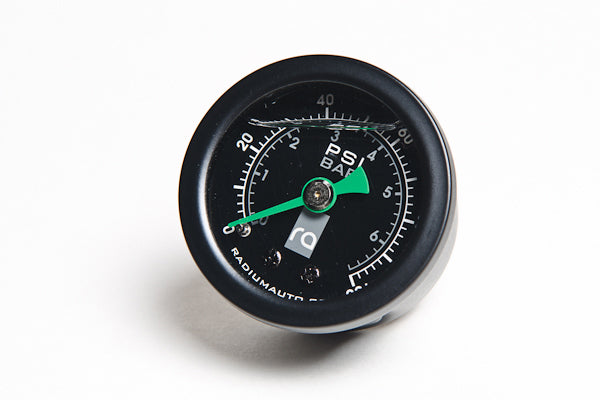

This high-accuracy Radium fuel pressure gauge is suitable for all fuelling applications. It reads 0–100psi (0–6.9 bar) with ±2% accuracy through an acrylic lens, and the silicone-filled dial steadies the needle so readings are easier to take.

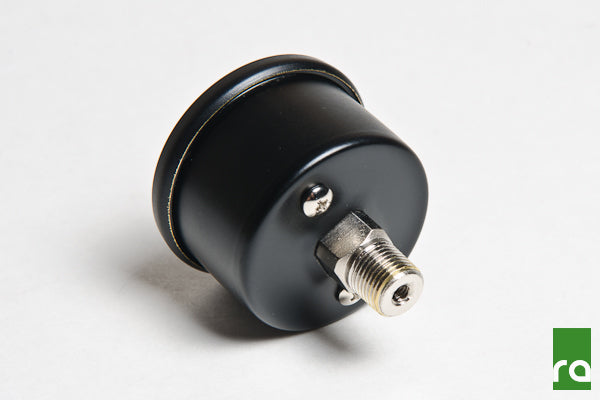

The rugged stainless steel case has a nickel-plated male 1/8" NPT fitting with a black bezel and housing. The 20-0029 is the gauge only – Radium also offers it bundled with 8AN ORB, 6AN inline and 90° adapters.

Key Features

• 0–100psi Range: 0–6.9 bar with ±2% accuracy
• Silicone-Filled Dial: Damps needle vibration for easier reading
• Acrylic Lens: Clear, easy-to-read face
• Stainless Steel Case: Rugged construction with black bezel and housing
• 1/8" NPT Fitting: Nickel-plated male thread

What's Included

• 1x Radium 0–100psi fuel pressure gauge

Important Notes

• An internal bubble in the silicone fluid is normal
• Over-pressurising can permanently misalign the needle calibration – do not exceed the gauge range
• Always use PTFE-based thread sealant paste on NPT threads
• Install by gently hand-tightening, then turn 1.5–3 turns past hand-tight with a spanner
• Do not thread the gauge in by gripping and turning the gauge body past light hand-tightness – this will damage the gauge
• Requires a 1/8" NPT female port or suitable adapter

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
