Radium Fuel Pressure Gauge With 90 Deg Adapter

Radium Fuel Pressure Gauge With 90 Deg Adapter

Application: Universal
Part Type: Fuel pressure gauge, 0-100 psi, with 90 degree adapter
Part Number: 20-0407

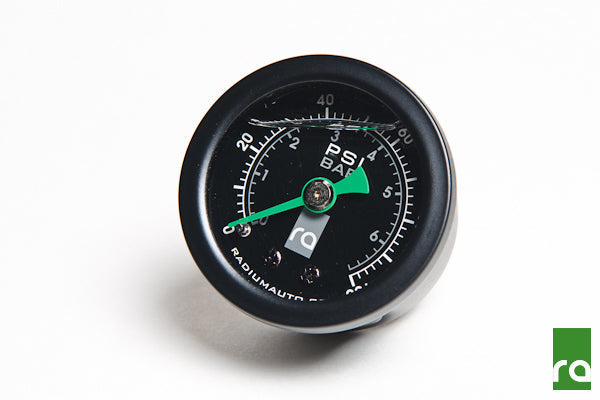

The Radium Fuel Pressure Gauge is designed for fuel system pressure monitoring in any fuelling application. It reads 0–100 psi (0–6.9 bar) with ±2% accuracy, and its silicone-filled dial dampens needle vibration for easy, steady readings.

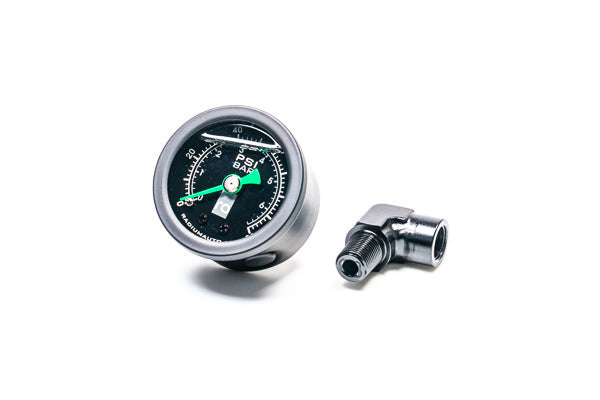

This version is supplied with a 90 degree 1/8" NPT male to 1/8" NPT female adapter, allowing the gauge to be turned to face the most convenient direction.

Key Features

• Wide Range: 0–100 psi (0–6.9 bar)
• Accurate: ±2% accuracy
• Silicone-Filled Dial: Dampens needle vibration for easier reading
• Rugged Case: Stainless steel case with acrylic lens
• 90 Degree Adapter: 1/8" NPT male to female adapter included
• Finish: Black bezel and housing

What's Included

• Fuel pressure gauge, 0-100 psi
• 90 degree 1/8" NPT male to 1/8" NPT female adapter

Important Notes

• A small internal silicone bubble is normal and does not affect operation
• Over-pressurising can permanently misalign the needle calibration
• Always use PTFE thread sealant or tape on NPT threads
• Hand-tighten gently, then tighten 1.5 to 3 turns past hand-tight with a spanner – do not thread the gauge in by gripping and turning the body

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
