Radium Engineering Fuel Hanger Surge Tank for Chevrolet Corvette C8 2020+ - Walbro F900

Radium Fuel Hanger Surge Tank, Chevrolet Corvette C8 (2020+) - Walbro F900

Application: Chevrolet Corvette C8 (2020+) – RH fuel tank
Part Type: In-tank fuel hanger surge tank (1-3 pumps)
Part Number: 20-1112

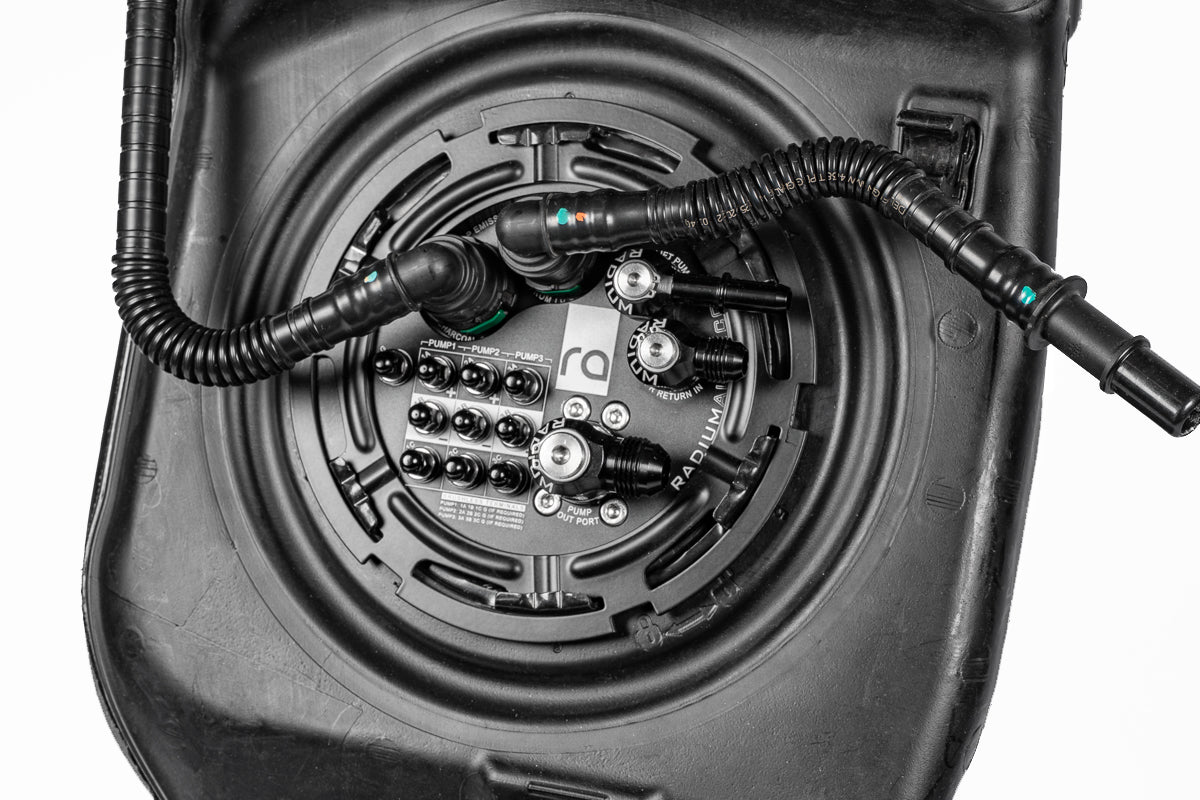

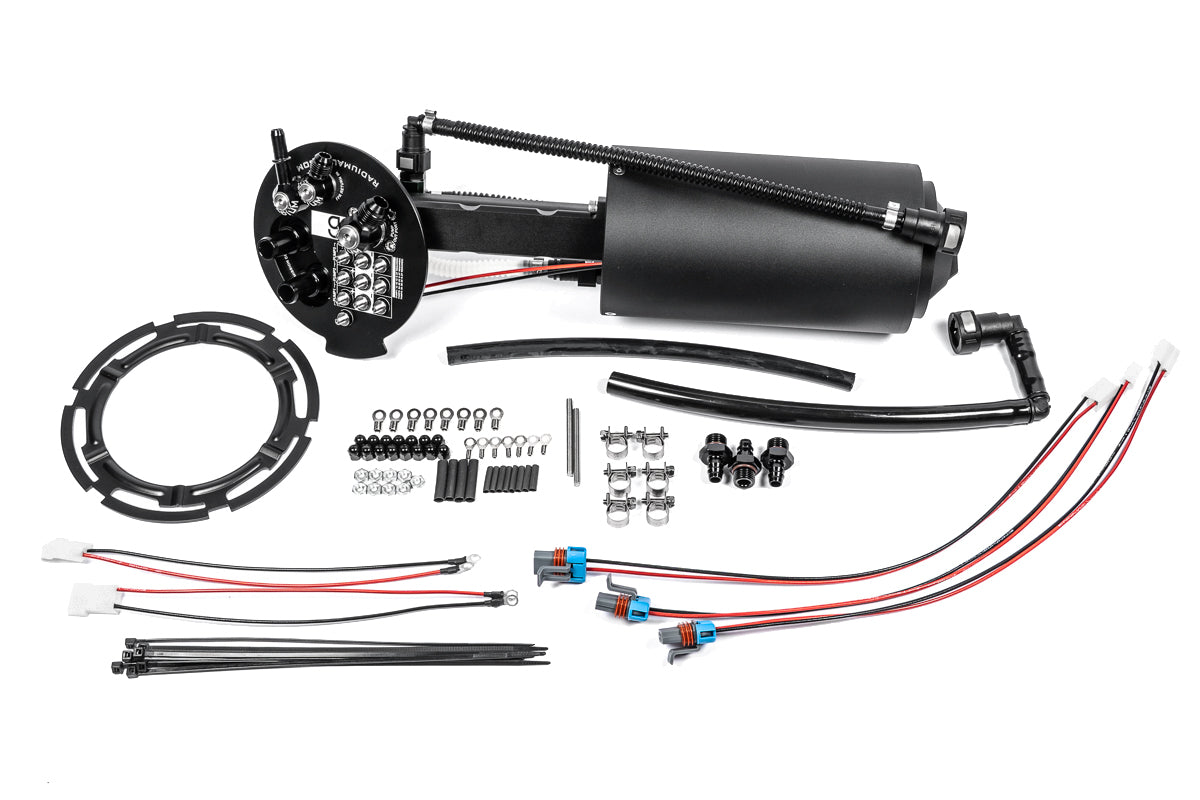

The Radium 20-1112 Fuel Hanger Surge Tank allows 1, 2 or 3 aftermarket fuel pumps to be run in the stock RH fuel tank of the 2020+ Chevrolet Corvette C8. It installs on the side opposite the OEM fuel pump module, which stays in place, and seamlessly reuses the large EVAP connections. This version suits Walbro F90000-series, Protec 11928, Fuelab 49614 and DeatschWerks DW810 pumps, and is compatible with brushless pumps.

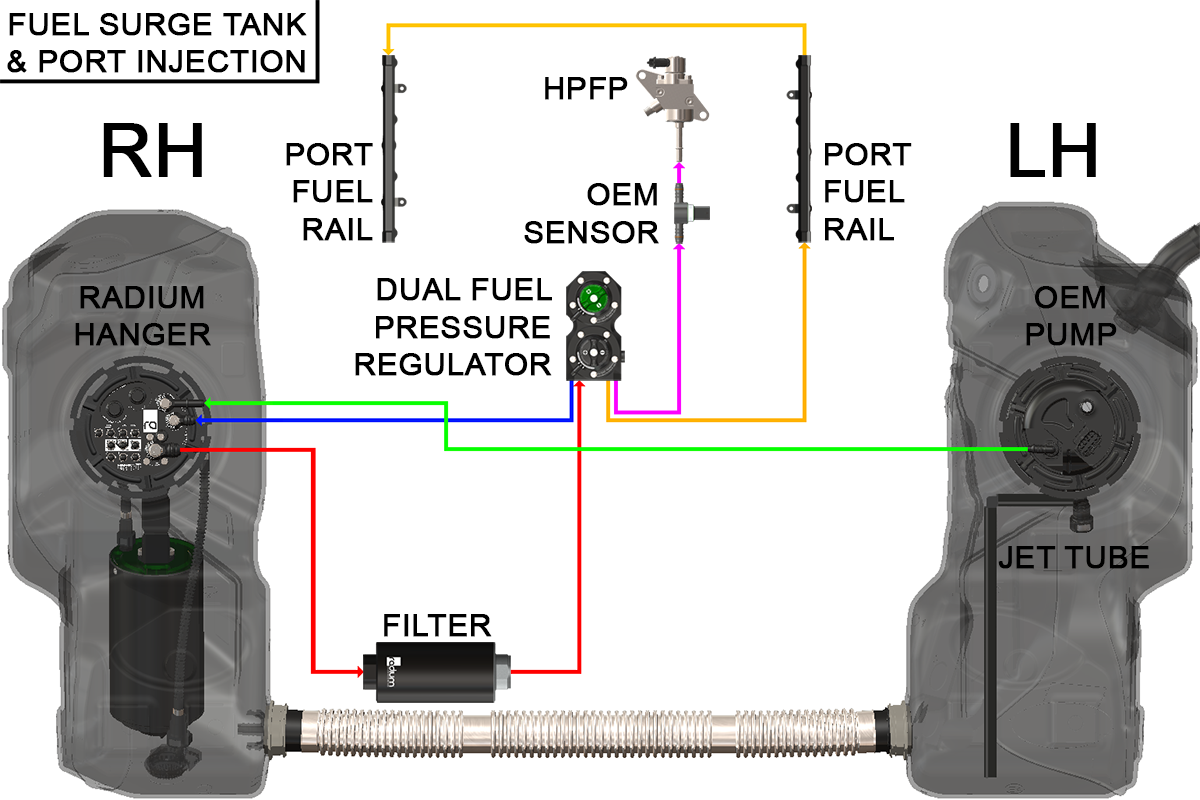

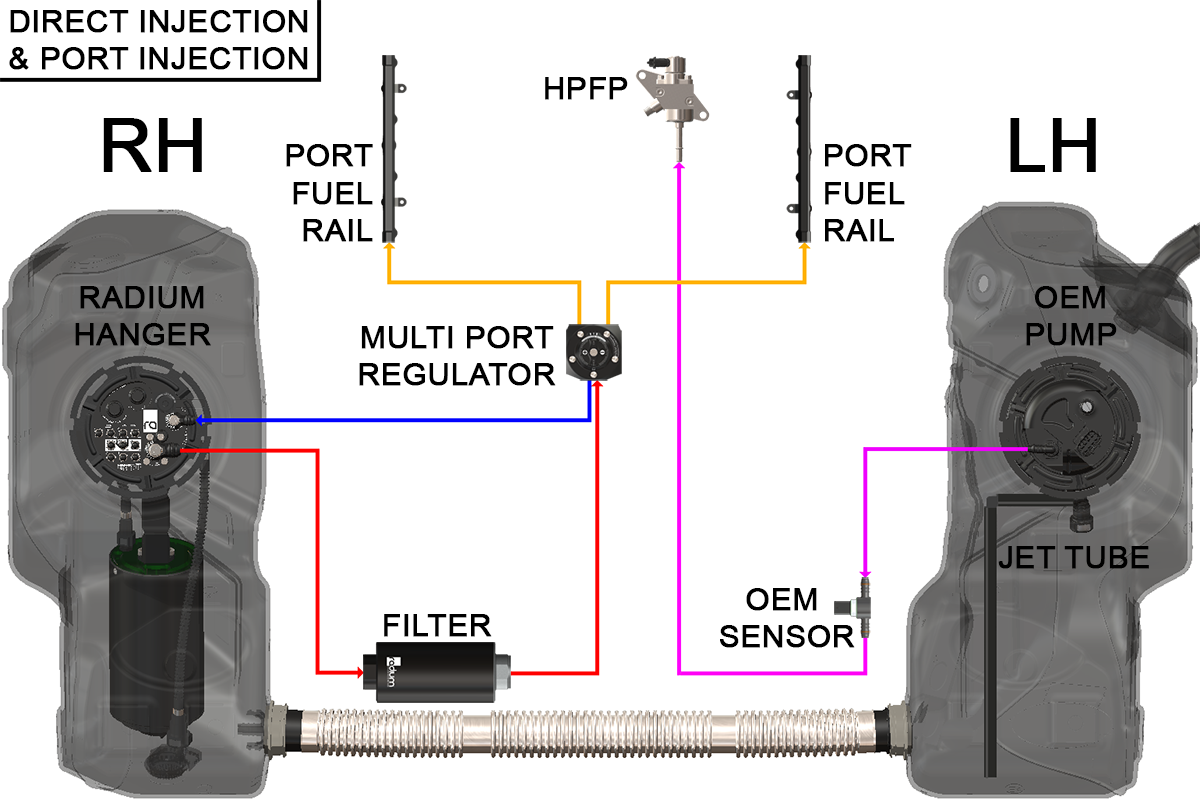

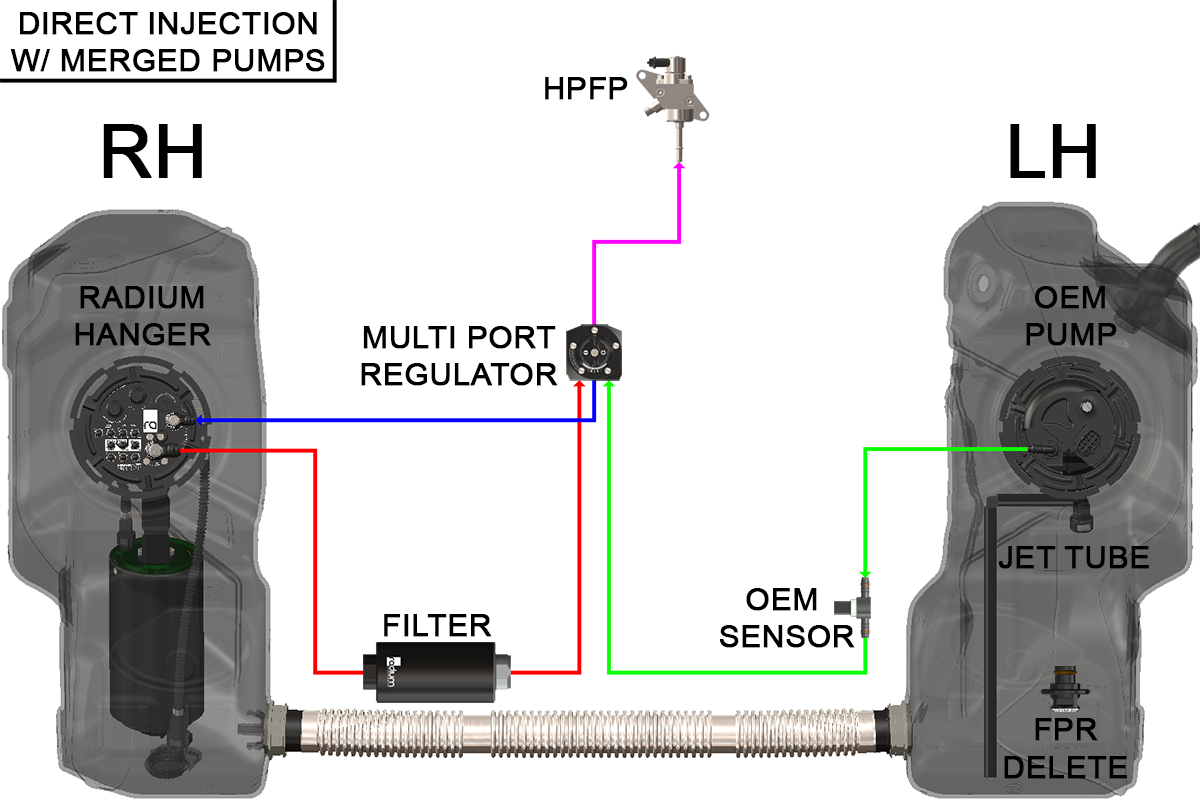

There are three common ways to configure the system: direct injection only, direct injection with port injection, and direct plus port injection using the hanger as a true surge tank. A venturi siphon jet pump draws fuel from outside the collector to the pump inlets (consuming 15-45 LPH depending on fuel pressure – allow for this when sizing pumps), while the one-piece anodised aluminium collector box is kept full by three 355 LPH one-way fill valves and fuel returning from the regulator. The 10AN ORB feed port has a low-profile 8AN male fitting, the 8AN ORB return port a low-profile 6AN male fitting, and a 3/8in SAE quick connect is supplied for surge tank use.

Key Features

• Drop-In Surge Tank: Installs into the stock RH fuel tank
• 1-3 Pumps: Permits one, two or three aftermarket fuel pumps
• Starvation Protection: Venturi jet pump plus three 355 LPH one-way fill valves
• Low-Profile Plumbing: 10AN ORB outlet with 8AN fitting; return with 6AN fitting; 6AN ORB lift pump port with quick connect fitting
• Brushless Compatible: Suits brushless fuel pumps
• High-Current Electrical: Anti-rotation stainless studs, nonconductive acorn nuts, ETFE-insulated wiring
• Construction: Anodised aluminium

What's Included

• 8AN male fitting for the pump outlet
• 6AN male fitting for the aftermarket return
• 8.5mm barb hose end for the OEM return
• 6.5mm barb fitting for the OEM vent
• OEM fuel sensor mount
• Venturi siphon jet pump
• Fuel-resistant submersible tubing
• Fuel-resistant ETFE-insulated wiring
• Pump inlet filtration
• 6AN ORB plug (for the lift pump port when no lift pump is used)
• Stainless hardware

Optional Parts

• Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) – one per pump for pumps without an integrated check valve (Walbro F90000295, DeatschWerks DW810)
• Radium Engineering Fuel Pump Filter Base Adapter – 12mm Brushless Pumps (13-1187) – required for Protec 11928, Fuelab 49614 and DeatschWerks DW810 pumps, which do not fit the included strainer
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump (qty 1, 2 or 3) to supply full pump current
• Radium DFPR, Dual Fuel Pressure Regulator (20-1102) – recommended for surge tank setups running both direct and port injection, to reduce HPFP pulse oscillations
• Radium MPR RA Multi Port FPR Fuel Pressure Regulator (20-1100-00 / 20-1100-01) – Radium multi-port regulator option

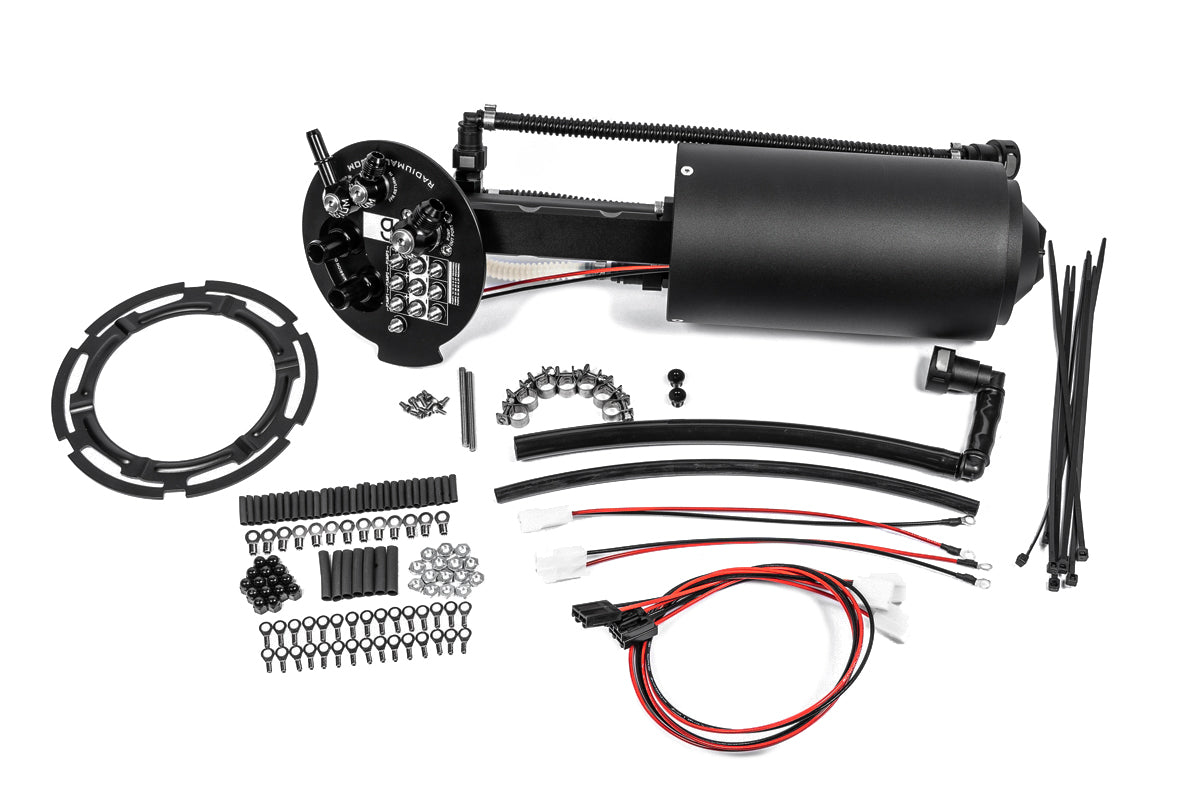

• Radium Fuel Hanger Surge Tank, Chevrolet Corvette C8 (2020+) - Walbro GSS342 / AEM 50-1200 (20-1110) – version for Walbro GSS342 / AEM 50-1200 pumps

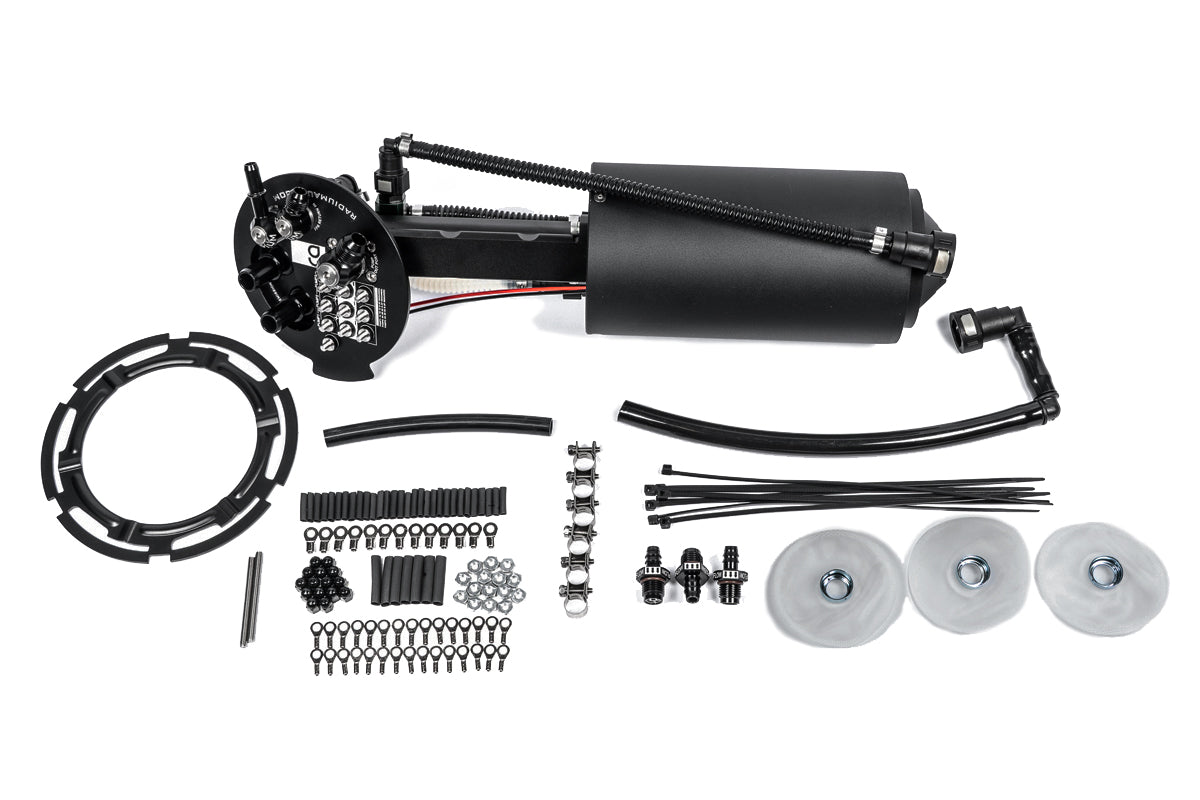

• Radium Fuel Hanger Surge Tank, Chevrolet Corvette C8 (2020+) - Pumps Not Included (20-1111) – version Radium lists for the Ti Automotive E5LM brushless pump

Important Notes

• Fuel pumps are not listed in Radium's kit contents
• Verified pumps: Walbro F90000267, F90000274, F90000285, F90000295; Protec 11928; Fuelab 49614; DeatschWerks DW810 – other similar pumps may fit but are not verified by Radium
• The Walbro F90000295 and DeatschWerks DW810 have no integrated check valve – each needs a 20-1534 check valve
• The Protec 11928, Fuelab 49614 and DeatschWerks DW810 do not fit the included strainer and need the 13-1187 12mm strainer base
• The rear subframe / drivetrain must be removed to access the OEM tanks – the engine is commonly removed as well
• Each pump needs its own wiring kit – order qty 1, 2 or 3 to match the pump count
• The OEM FPR delete (Radium 20-1278) is only required for the merged configuration; Radium also offers a C8 FPR mount (20-1279) and RWD fuel filter mount (20-1280) – contact iilumolab for availability
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with iilumolab before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Chevrolet Corvette C8 (2020+) – RH fuel tank
