Radium DIY Fuel Pump Hard Wiring Kit

Radium DIY Fuel Pump Hard Wiring Kit

Application: Universal – one fuel pump or other high-current device
Part Type: Fuel pump power wiring kit (relay and fuse harness)
Part Number: 17-0031

The Radium DIY Fuel Pump Wiring Kit includes the parts needed to build a dedicated power wiring harness for one fuel pump or other high-current device. All components are high quality and sealed for weather-exposed installations, and are rated for proper operation in all conditions.

Aircraft-grade TXL wire resists chemicals and elevated temperatures, and crimpless solder heat shrink butt splices give reliable connections. Radium recommends a dedicated fuse and relay for each fuel pump.

Key Features

• Weatherproof Relay: 40A relay with leads
• Weatherproof Fuse Holder: ATC fuse holder with leads and 25A ATC fuse
• TXL Wire: 10AWG aircraft-grade wire, resistant to chemicals and heat
• Crimpless Splices: Solder heat shrink butt splices
• Posi-Tap Trigger: Quick-connect connector for the relay trigger wire

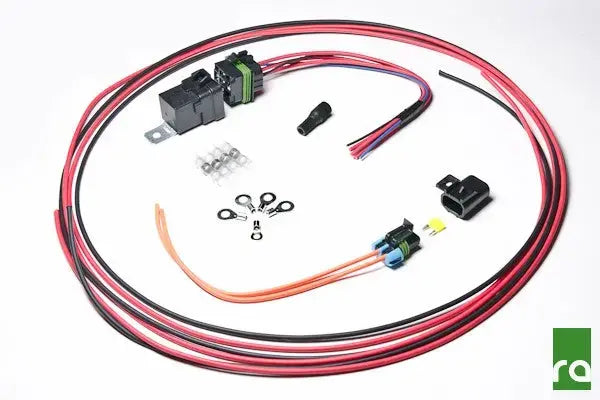

What's Included

• 1x Weatherproof 40A relay with leads
• 1x Weatherproof ATC fuse holder with leads
• 1x Quick-connect Posi-Tap connector
• 4x Crimpless solder heat shrink butt splices
• 4x 6mm stud ring terminals for 10AWG wire
• 1x 5mm stud ring terminal for 10AWG wire
• 1x 10AWG black TXL wire, 3m (10ft)
• 1x 10AWG red TXL wire, 3m (10ft)
• 1x 25A ATC fuse

Important Notes

• Order one wiring kit for EACH fuel pump being installed

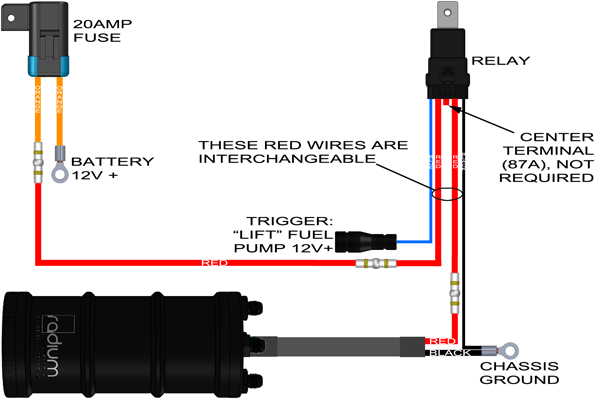

• The relay trigger can be wired to ground or a 12V signal, provided the other end of the low-current relay coil wire is connected to the opposing source
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
