Radium Engineering Fuel Hanger Plumbing Kit with Stainless Filter for Ford Mustang 2015-2017

Radium Fuel Hanger Plumbing Kit with Stainless Filter, Ford Mustang (2015-2017)

Application: Ford Mustang S550 (2015-2017) incl. Shelby GT350 / GT500 – with Radium 20-180X hanger
Part Type: Fuel hanger plumbing kit (10 micron stainless filter)
Part Number: 20-1816-03

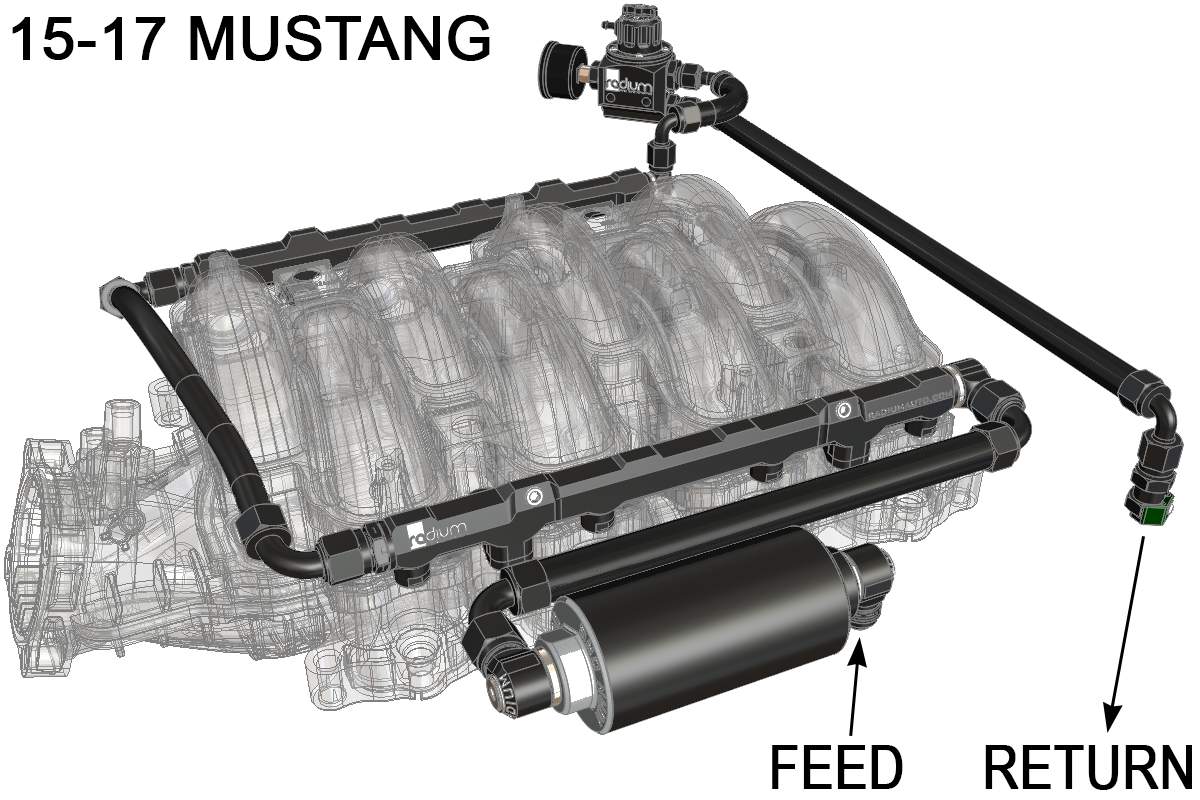

The Radium 20-1816-03 Fuel Hanger Plumbing Kit includes everything required to install a return fuel system from the Radium 20-180X fuel pump hanger all the way to the engine bay of the 2015-2017 Mustang. A new high-flow check valve fuel filter (10 micron stainless steel element that can be cleaned and reused), fuel lines, AN fittings and undercarriage fuel line retainers replace the OEM components, and the OEM feed hard line is repurposed as the return line.

The 2015-2017 models are port injection only, so this kit uses Radium's multi-port fuel pressure regulator (MPR). Because the Radium hanger removes the in-tank low-micron filter, the external filter in this kit is required.

Key Features

• Complete Return System: Plumbs from the fuel hanger to the engine bay
• PTFE Lines: 6AN and 8AN PTFE fuel lines, long 8AN feed line under the car
• Check Valve Filter: Radium check valve fuel filter in a heat shield bracket
• Filter Element: 10 micron stainless steel element that can be cleaned and reused

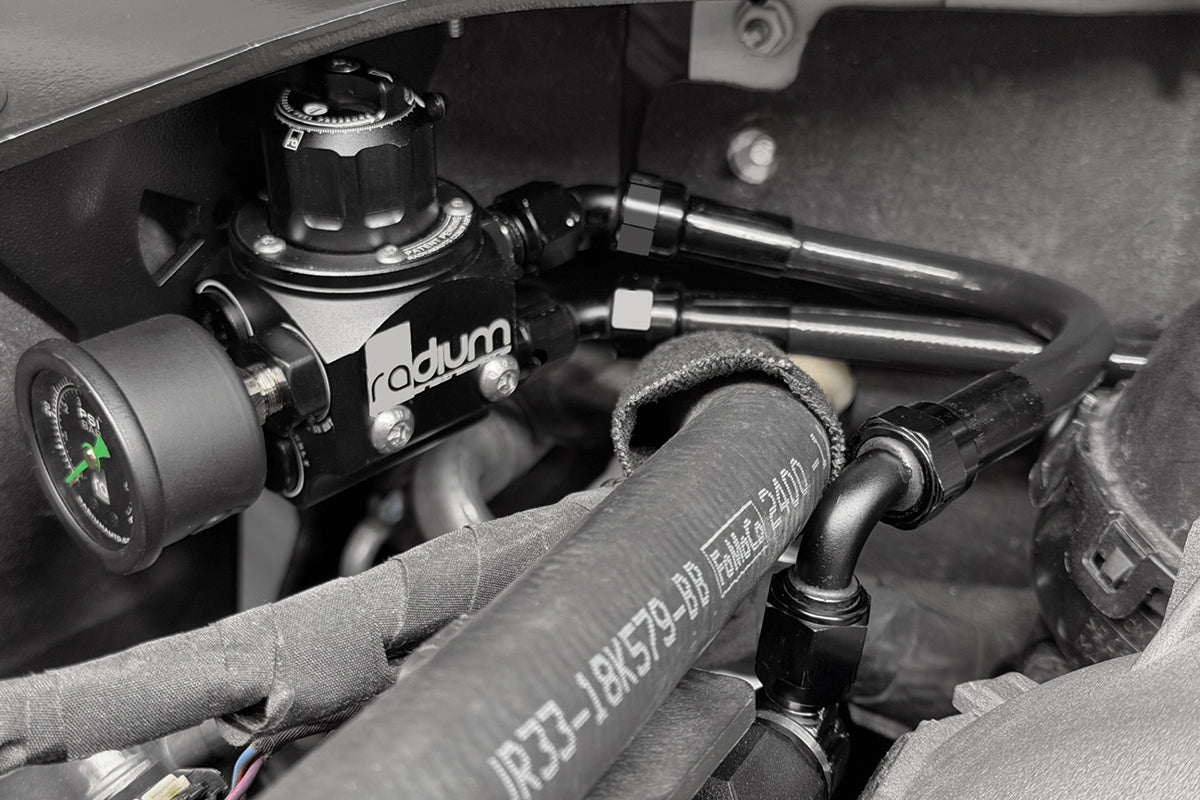

• Regulator: Radium multi-port fuel pressure regulator (MPR)
• Billet Line Retainers: 2 billet fuel/brake line retainers secure the 8AN feed line
• Hanger FPR Block-Off: Block-off kit for the hanger's integrated FPR included

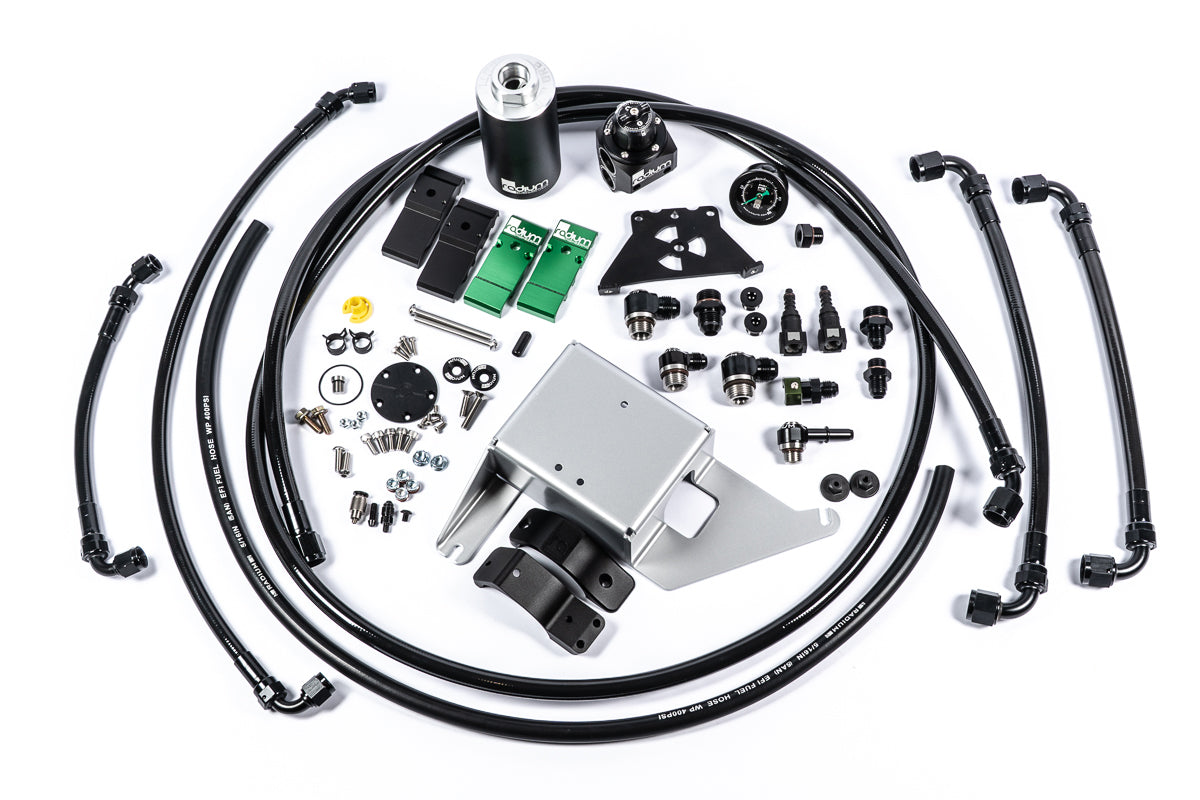

What's Included

• Fuel hanger FPR block-off kit (20-0806)
• New feed and return fittings
• 6AN PTFE fuel lines
• 8AN PTFE fuel lines (x3), including the long underbody feed line
• Billet fuel/brake line retainers (x2)
• Radium check valve fuel filter (10 micron stainless steel element that can be cleaned and reused) with heat shield bracket
• Radium multi-port fuel pressure regulator (MPR)
• Adapters and fittings for the port injection fuel rail

Optional Parts

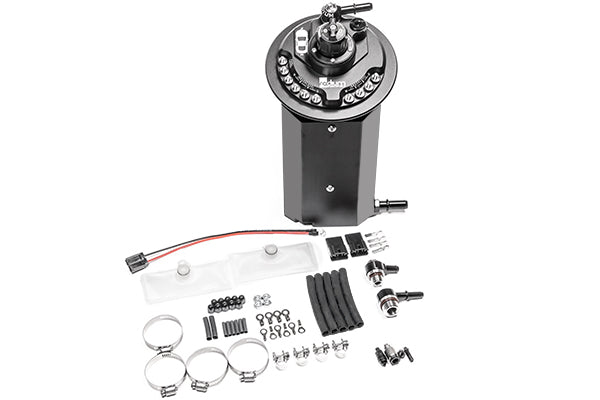

• Radium Fuel Pump Hanger, 2011+ Ford Mustang/Shelby (20-1800 / 20-1801 / 20-1802) – Radium 20-180X dual pump hanger the kit plumbs from – select the version to suit your pumps
• Radium Fuel Rails, Ford Coyote / Voodoo (20-1433) – Radium Coyote port injection fuel rails used in Radium's complete fuel delivery system
• Radium Fuel Pressure Gauge 0-100psi (20-0029) – 0-100psi gauge Radium uses to monitor and adjust fuel pressure
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump (qty 1, 2 or 3) to supply full pump current
• Radium Fuel Hanger Plumbing Kit with Microglass Filter, Ford Mustang (2015-2017) (20-1816-05) – same kit with the alternative filter element

Important Notes

• Requires a Radium 20-180X fuel pump hanger – fuel pumps, fuel rails and injectors are not included (OEM injectors can be reused)
• Manual transmission cars: the 2-bolt flange clutch line bracket must be moved slightly to clear the filter inlet fitting
• Fuel pressure gauges are not listed in Radium's kit contents
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with iilumolab before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang S550 (2015-2017) – all models
• Ford Shelby GT / GTE / GT-H / GTS S550 (2015-2016)
• Ford Shelby GT350 S550 (2015-2020)
• Ford Shelby GT500 S550 (2020-2022)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
