Radium Engineering Fuel Rails for Ford Coyote / Voodoo

Radium Fuel Rails, Ford Coyote / Voodoo

Application: Ford 5.0L Coyote and 5.2L Voodoo
Part Type: Billet port injection fuel rails
Part Number: 20-1433

The Radium 20-1433 Fuel Rails are high-flow upgrade rails for Ford Coyote and Voodoo engines. Their large internal bores can support all necessary engine power requirements, and they are CNC machined from solid 6061 aluminium, black anodised and laser etched.

Like the OEM rails, the injector bores are 14mm ID so factory injectors can be used, with provisions for the retaining clips to index all OEM injectors. Two sets of mounting feet cover all Ford Coyote intake manifolds, and the ports are tapped for 8AN ORB and 1/8in NPT.

Key Features

• High Flow: Large internal bores support all necessary engine power requirements
• Billet Construction: CNC machined from solid 6061 aluminium, black anodised, laser etched
• OEM Injectors: 14mm ID injector bores with clip provisions to index OEM injectors
• Universal Coyote Mounting: Two sets of mounting feet suit all Ford Coyote intake manifolds
• Ports: 8AN ORB and 1/8in NPT

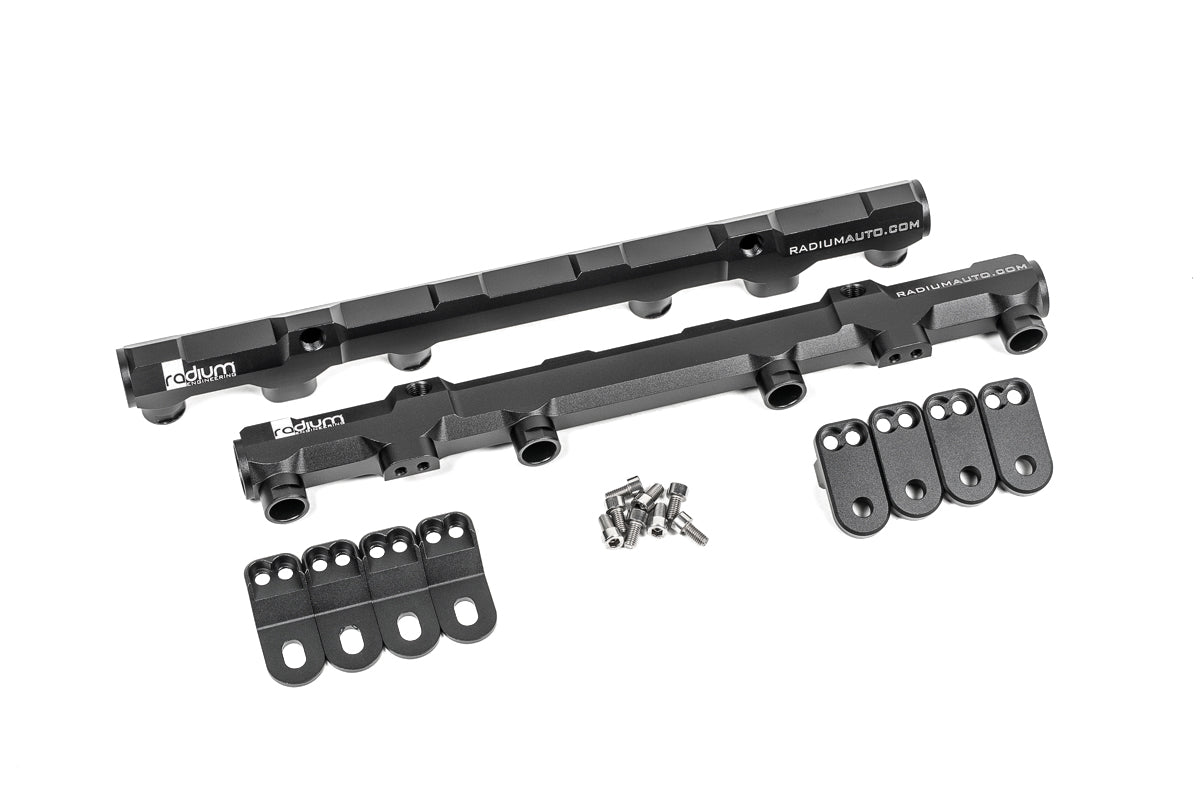

What's Included

• Anodised billet aluminium fuel rails
• Mounting feet (two sets)
• Stainless steel mounting hardware

Optional Parts

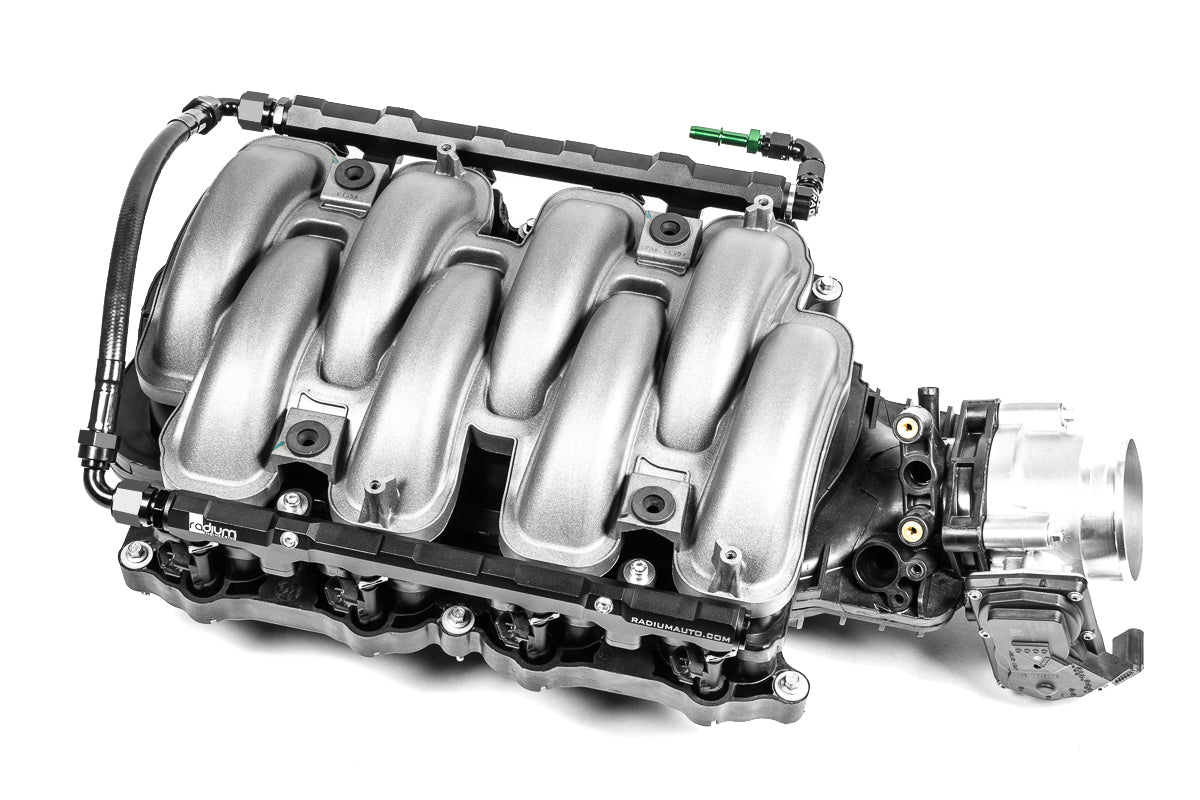

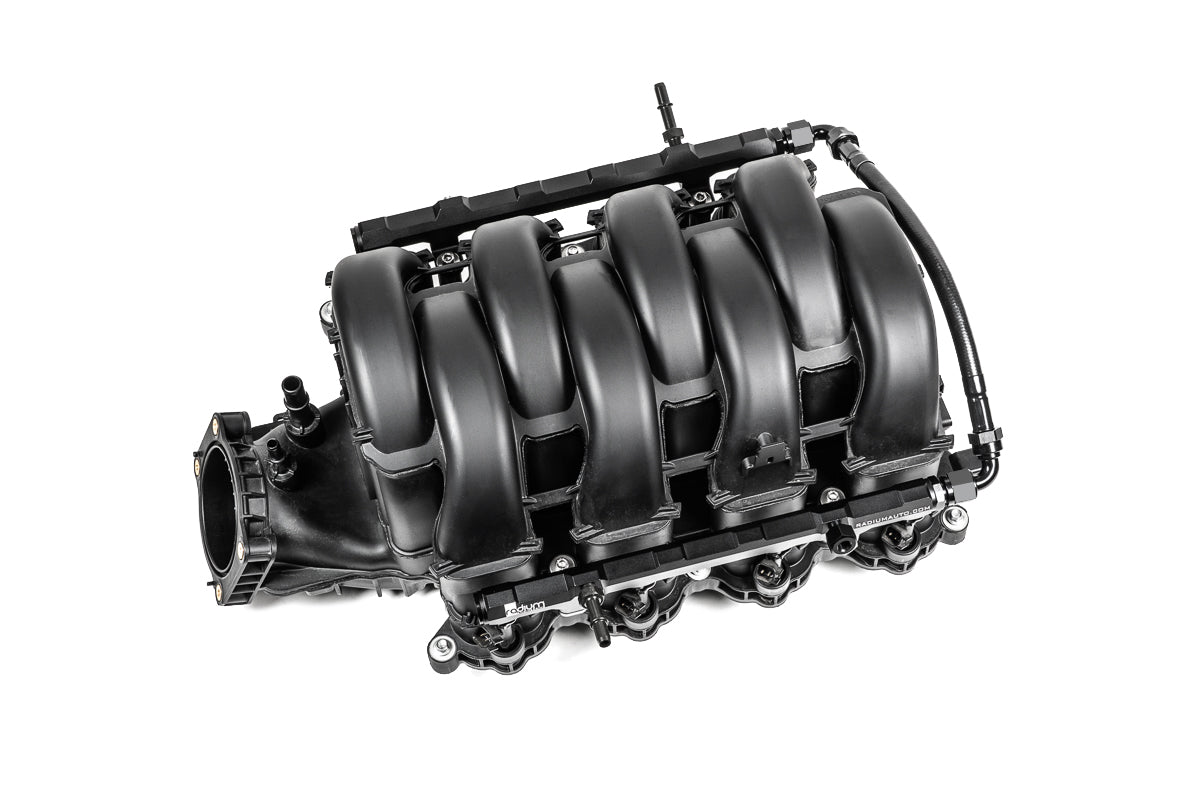

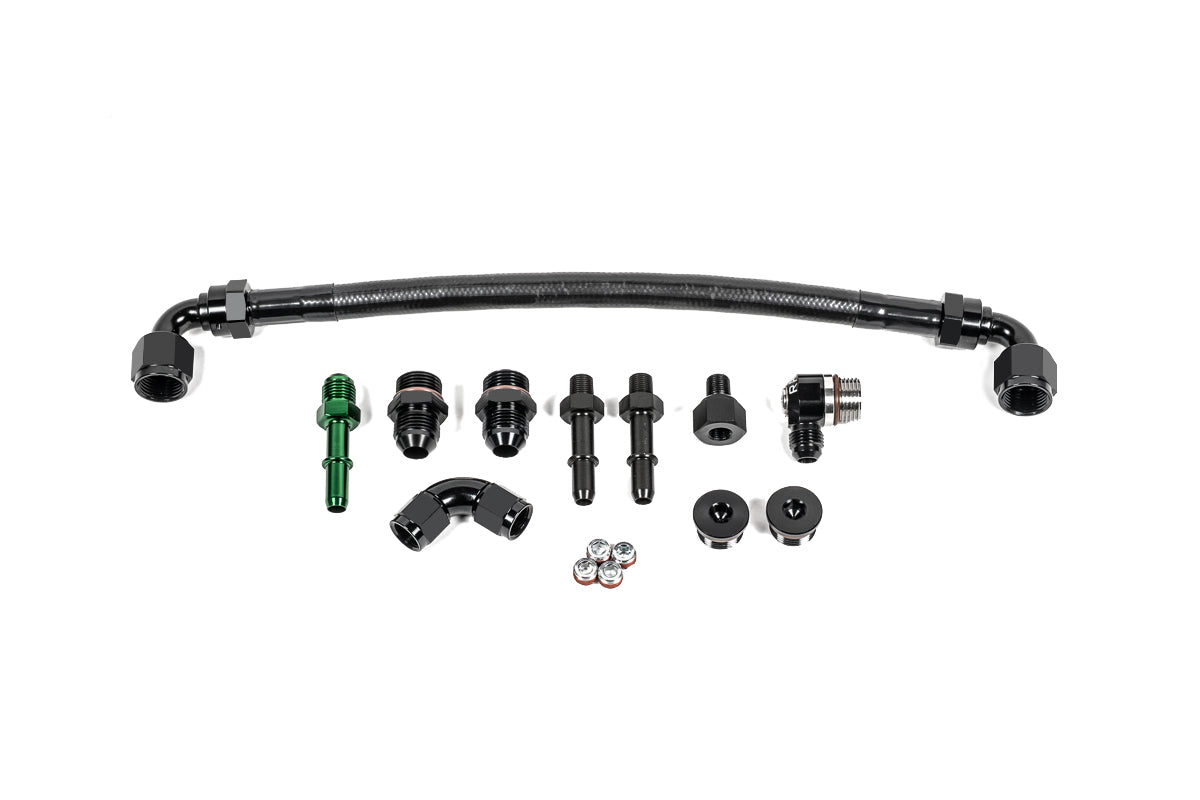

• Radium Fuel Rail Plumbing Kit, Ford Coyote / Voodoo (20-1433-PK) – bolt-on plumbing kit that fully replaces the OEM rail system (not compatible with 2024+ S650)
• Radium 3/8in SAE Male to 1/8NPT Male - Ford Mustang GT FN 18-21 (14-0358) – adapts the OEM direct injection pump feed hose – required unless 20-1433-PK is purchased
• Radium M10x1mm Female to 1/8NPT Male Fitting - Ford Mustang GT FN 18-21 (14-0359) – adapts the OEM fuel sensor – required unless 20-1433-PK is purchased

Important Notes

• This is an upgrade rail – OEM or OEM-equivalent injectors must be used (same height and the same upper and lower O-ring diameters and styles)
• Radium does not make injector recommendations – consult your tuner for brand and flow rate, and the injector manufacturer for a dimensionally correct part number
• The rails do not come with adapter fittings – unless the 20-1433-PK plumbing kit is purchased, 14-0358 (OEM DI pump feed hose) and 14-0359 (OEM fuel sensor) adapters are required
• Fittings must be selected to suit the application – allow ample clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang GT (2011-2014)
• Ford Mustang GT (2015-2023)
• Ford Mustang GT (2024+)
• Ford Shelby GT350 (2015-2020)
• Ford Falcon FG-X (2014-2016)
• Ford F-150 5.0L (2011+)
• Also compatible with the Ford Racing Boss 302 intake manifold

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
