Radium Fuel Hanger Plumbing Kit with Microglass Filter, Ford Mustang (2015-2017)

Radium Fuel Hanger Plumbing Kit with Microglass Filter, Ford Mustang (2015-2017)

Application: Ford Mustang S550 (2015-2017) incl. Shelby GT350 / GT500 – with Radium 20-180X hanger
Part Type: Fuel hanger plumbing kit (6 micron microglass filter)
Part Number: 20-1816-05

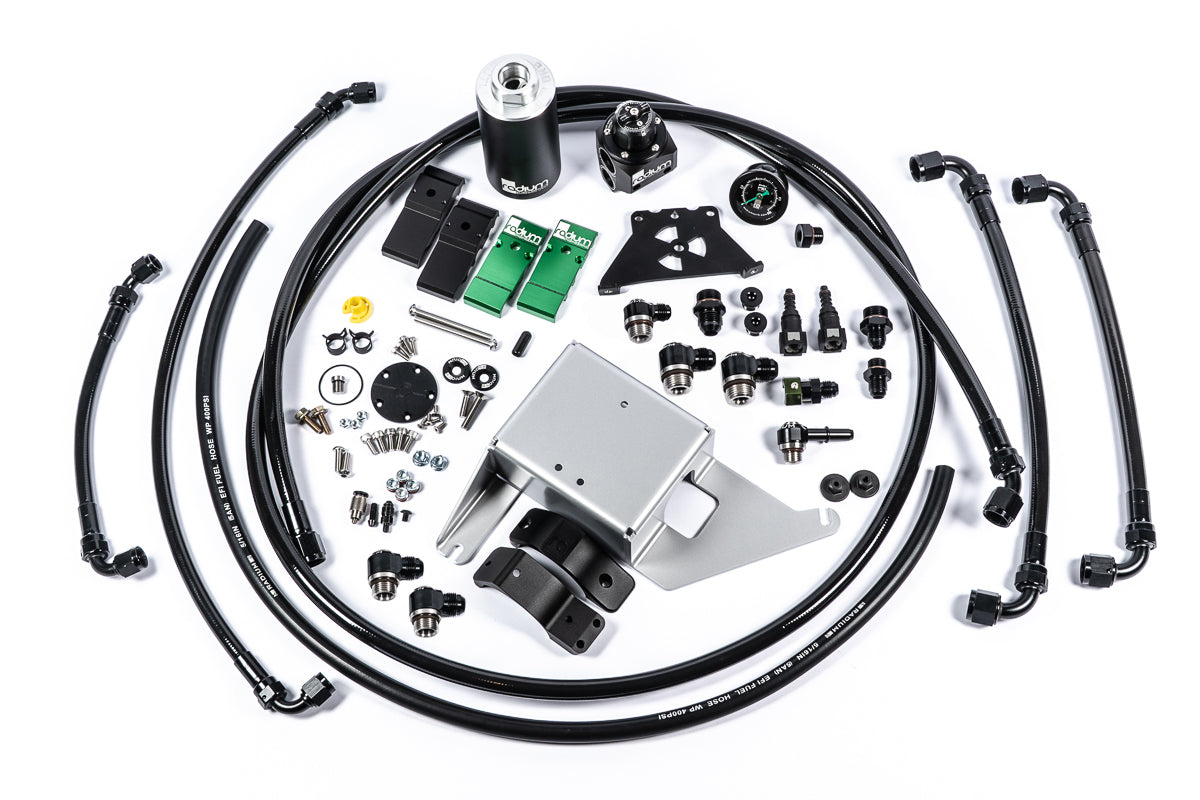

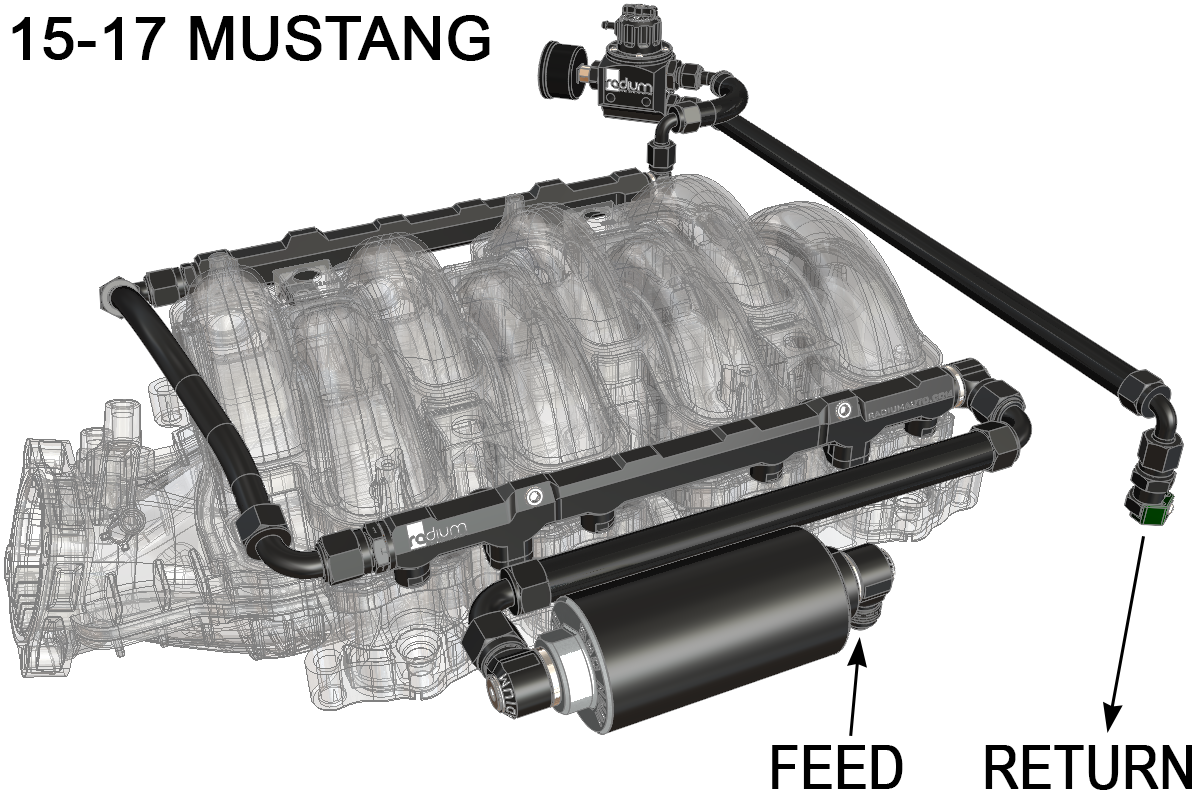

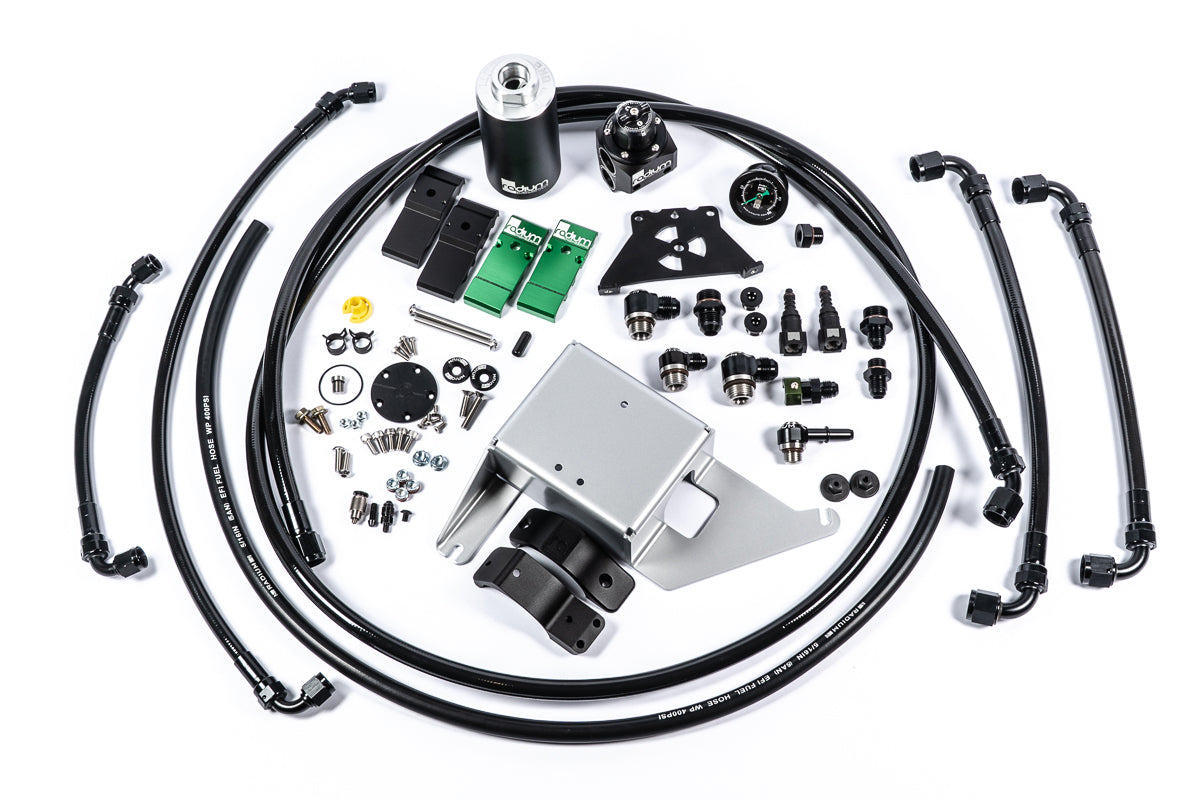

The Radium 20-1816-05 Fuel Hanger Plumbing Kit includes everything required to install a return fuel system from the Radium 20-180X fuel pump hanger all the way to the engine bay of the 2015-2017 Mustang. A new high-flow check valve fuel filter (finer 6 micron microglass element), fuel lines, AN fittings and undercarriage fuel line retainers replace the OEM components, and the OEM feed hard line is repurposed as the return line.

The 2015-2017 models are port injection only, so this kit uses Radium's multi-port fuel pressure regulator (MPR). Because the Radium hanger removes the in-tank low-micron filter, the external filter in this kit is required.

Key Features

• Complete Return System: Plumbs from the fuel hanger to the engine bay
• PTFE Lines: 6AN and 8AN PTFE fuel lines, long 8AN feed line under the car
• Check Valve Filter: Radium check valve fuel filter in a heat shield bracket
• Filter Element: finer 6 micron microglass element

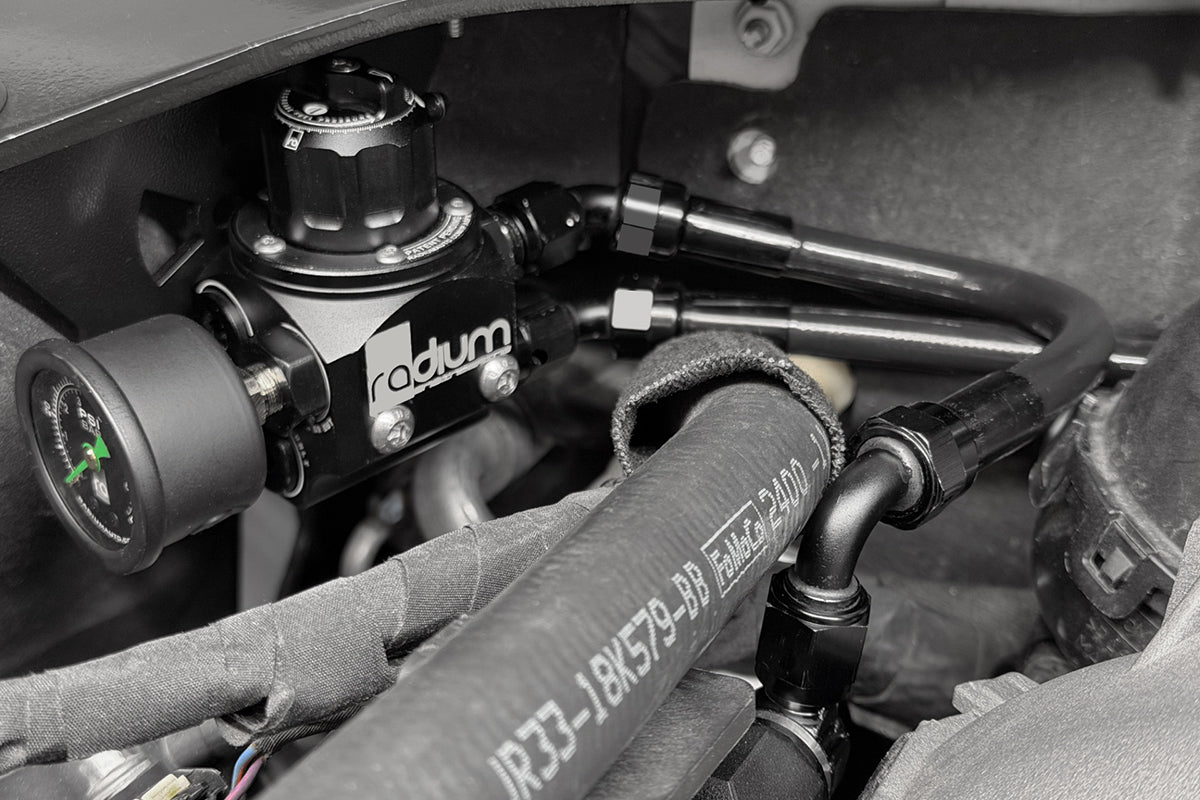

• Regulator: Radium multi-port fuel pressure regulator (MPR)
• Billet Line Retainers: 2 billet fuel/brake line retainers secure the 8AN feed line
• Hanger FPR Block-Off: Block-off kit for the hanger's integrated FPR included

What's Included

• Fuel hanger FPR block-off kit (20-0806)
• New feed and return fittings
• 6AN PTFE fuel lines
• 8AN PTFE fuel lines (x3), including the long underbody feed line
• Billet fuel/brake line retainers (x2)
• Radium check valve fuel filter (finer 6 micron microglass element) with heat shield bracket
• Radium multi-port fuel pressure regulator (MPR)
• Adapters and fittings for the port injection fuel rail

Optional Parts

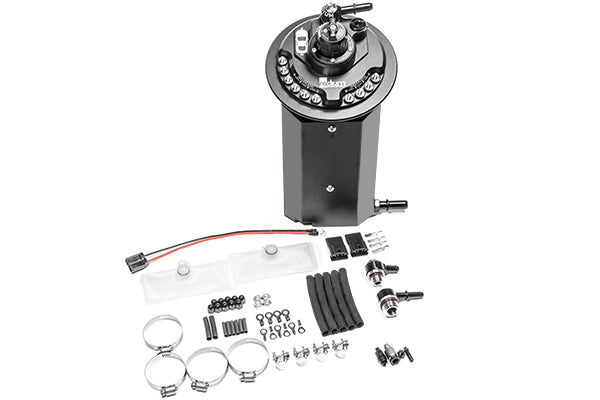

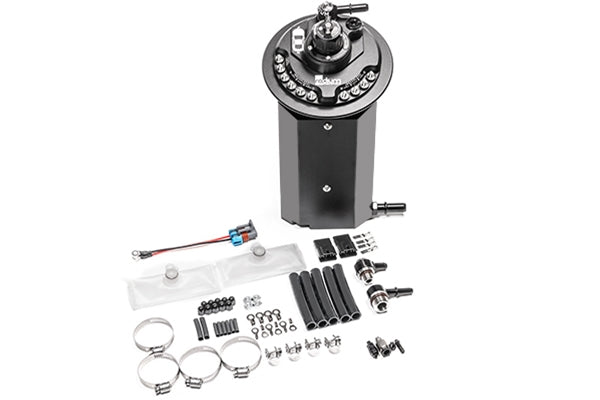

• Radium Fuel Pump Hanger, 2011+ Ford Mustang/Shelby (20-1800 / 20-1801 / 20-1802) – Radium 20-180X dual pump hanger the kit plumbs from – select the version to suit your pumps
• Radium Fuel Rails, Ford Coyote / Voodoo (20-1433) – Radium Coyote port injection fuel rails used in Radium's complete fuel delivery system
• Radium Fuel Pressure Gauge 0-100psi (20-0029) – 0-100psi gauge Radium uses to monitor and adjust fuel pressure
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump (qty 1, 2 or 3) to supply full pump current
• Radium Fuel Hanger Plumbing Kit with Stainless Filter, Ford Mustang (2015-2017) (20-1816-03) – same kit with the alternative filter element

Important Notes

• Requires a Radium 20-180X fuel pump hanger – fuel pumps, fuel rails and injectors are not included (OEM injectors can be reused)
• Manual transmission cars: the 2-bolt flange clutch line bracket must be moved slightly to clear the filter inlet fitting
• Fuel pressure gauges are not listed in Radium's kit contents
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with Coore before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang S550 (2015-2017) – all models
• Ford Shelby GT / GTE / GT-H / GTS S550 (2015-2016)
• Ford Shelby GT350 S550 (2015-2020)
• Ford Shelby GT500 S550 (2020-2022)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
