Radium Engineering Fuel Hanger Surge Tank for Chevrolet Corvette C8 2020+ - Walbro GSS342 / AEM 50-1200

Radium Fuel Hanger Surge Tank, Chevrolet Corvette C8 (2020+) - Walbro GSS342 / AEM 50-1200

Application: Chevrolet Corvette C8 (2020+) – RH fuel tank
Part Type: In-tank fuel hanger surge tank (1-3 pumps)
Part Number: 20-1110

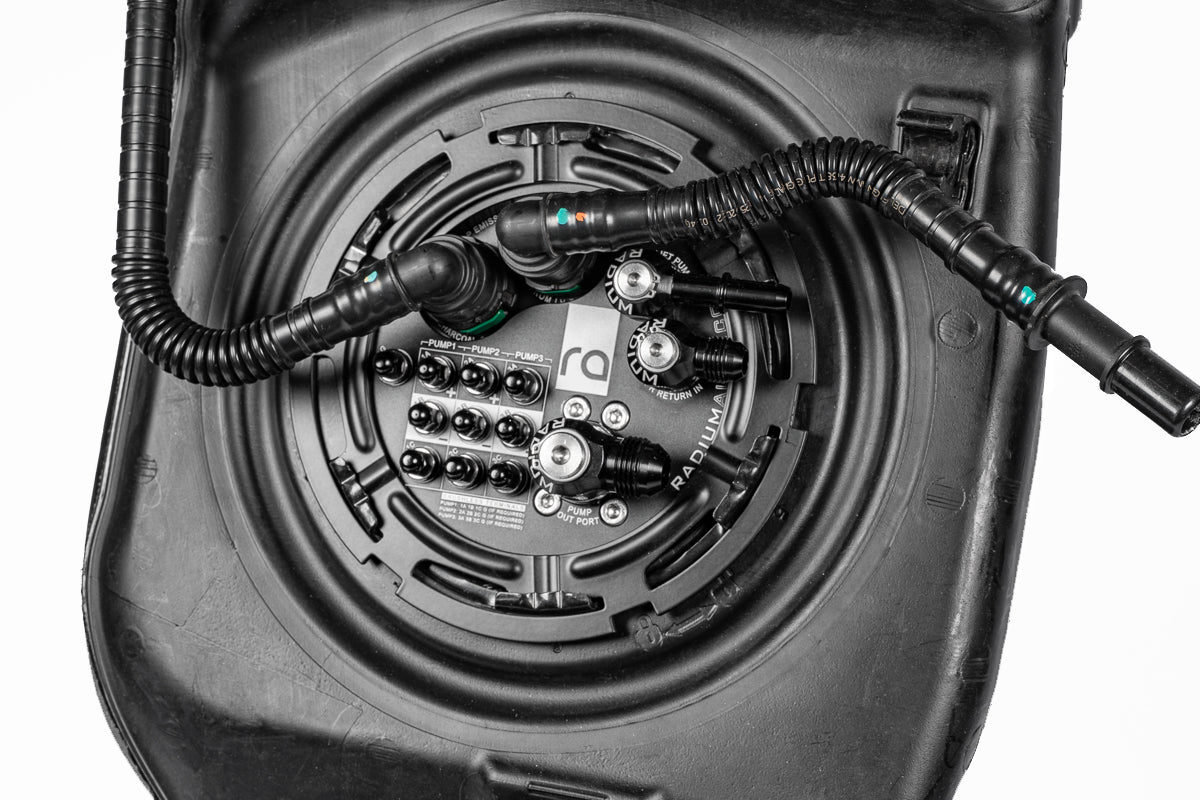

The Radium Fuel Hanger Surge Tank allows 1, 2 or 3 aftermarket fuel pumps to be run in the stock RH fuel tank of the 2020+ Corvette C8, installing on the side opposite the OEM pump module. The 20-1110 version suits Walbro GSS342 and AEM 50-1200.

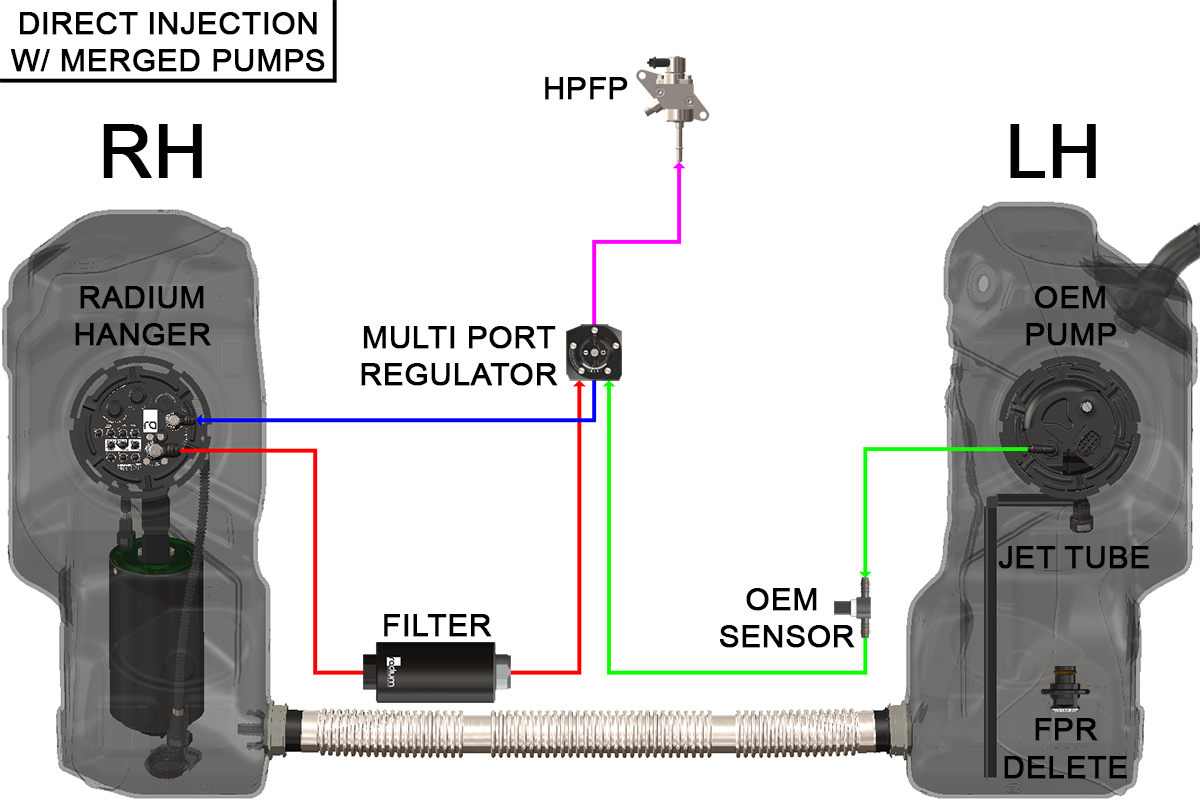

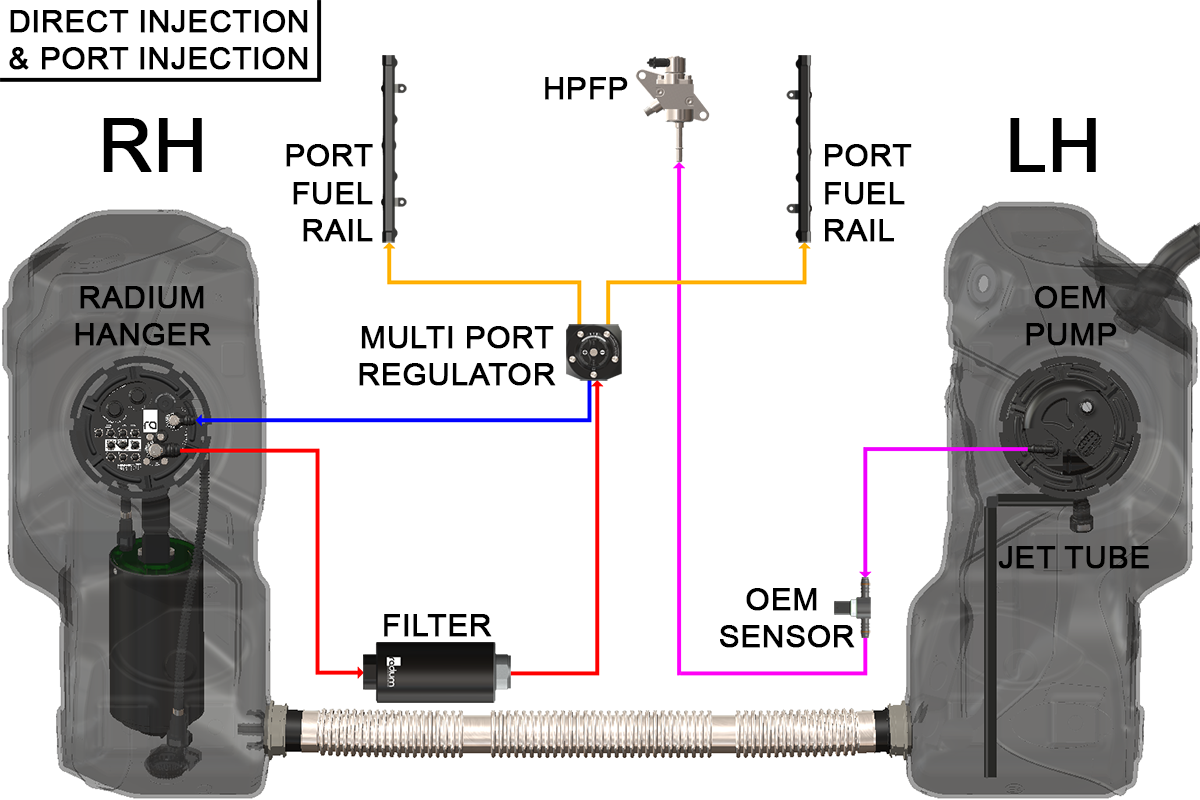

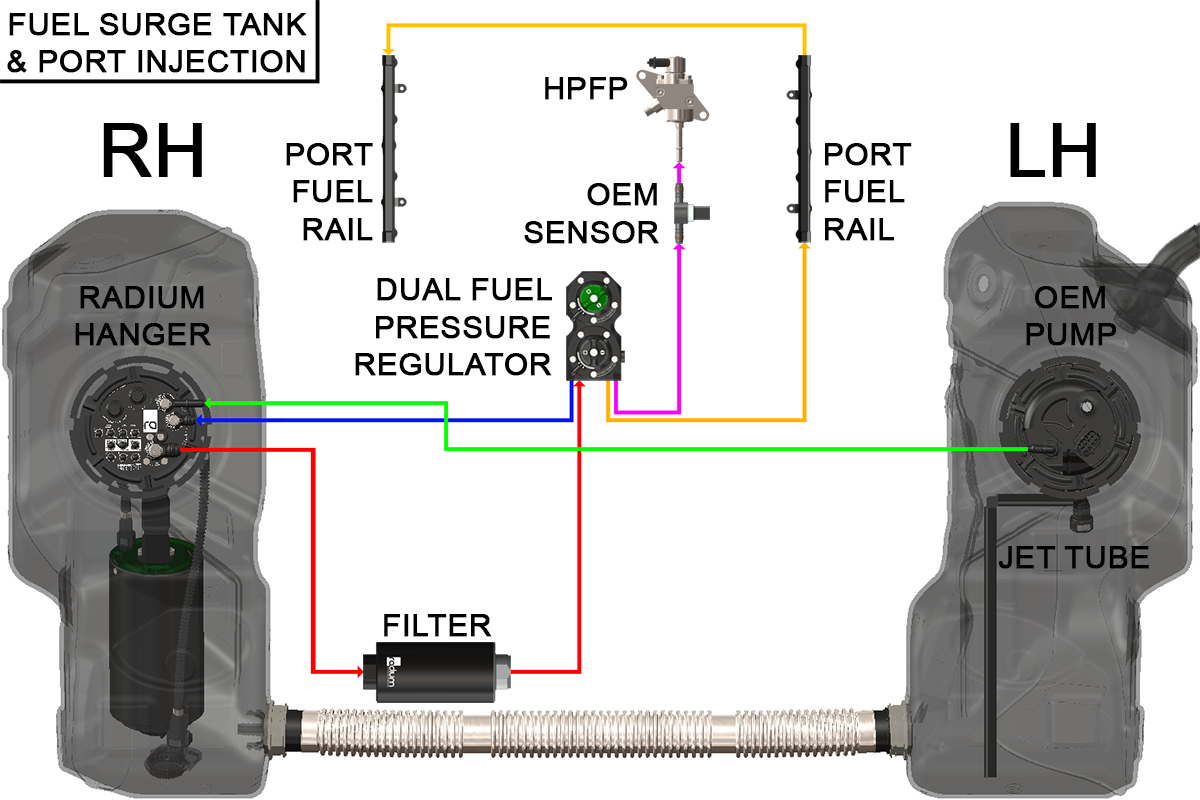

It can be configured three ways: as a true surge tank (direct injection only, or direct plus port injection), as a merged hanger for direct injection only, or as isolated direct and port injection systems. A venturi siphon jet pump draws fuel from outside the collector to the pump inlets (using 15-45 LPH depending on fuel pressure – allow for this when sizing pumps), while the one-piece anodised collector box is kept full by three 355 LPH one-way fill valves and fuel returning from the regulator. The 10AN ORB feed port has a low-profile 8AN male fitting, the return has a low-profile 6AN male fitting, and a 3/8in SAE quick connect is supplied for surge tank use.

Key Features

• 1-3 Pumps: Run one, two or three aftermarket pumps in the RH tank
• Three Configurations: Surge tank, merged hanger, or isolated DI and PI systems
• Starvation Protection: Venturi jet pump plus three 355 LPH one-way fill valves
• One-Piece Collector: Anodised aluminium collector box keeps fuel around the pump inlets
• Low-Profile Fittings: 10AN ORB outlet with 8AN male fitting; return with 6AN male fitting
• Lift Pump Port: 6AN ORB lift pump port with quick connect
• Brushless Compatible: Suits brushless fuel pumps
• High-Current Electrical: Anti-rotation stainless studs, nonconductive acorn nuts, ETFE wiring

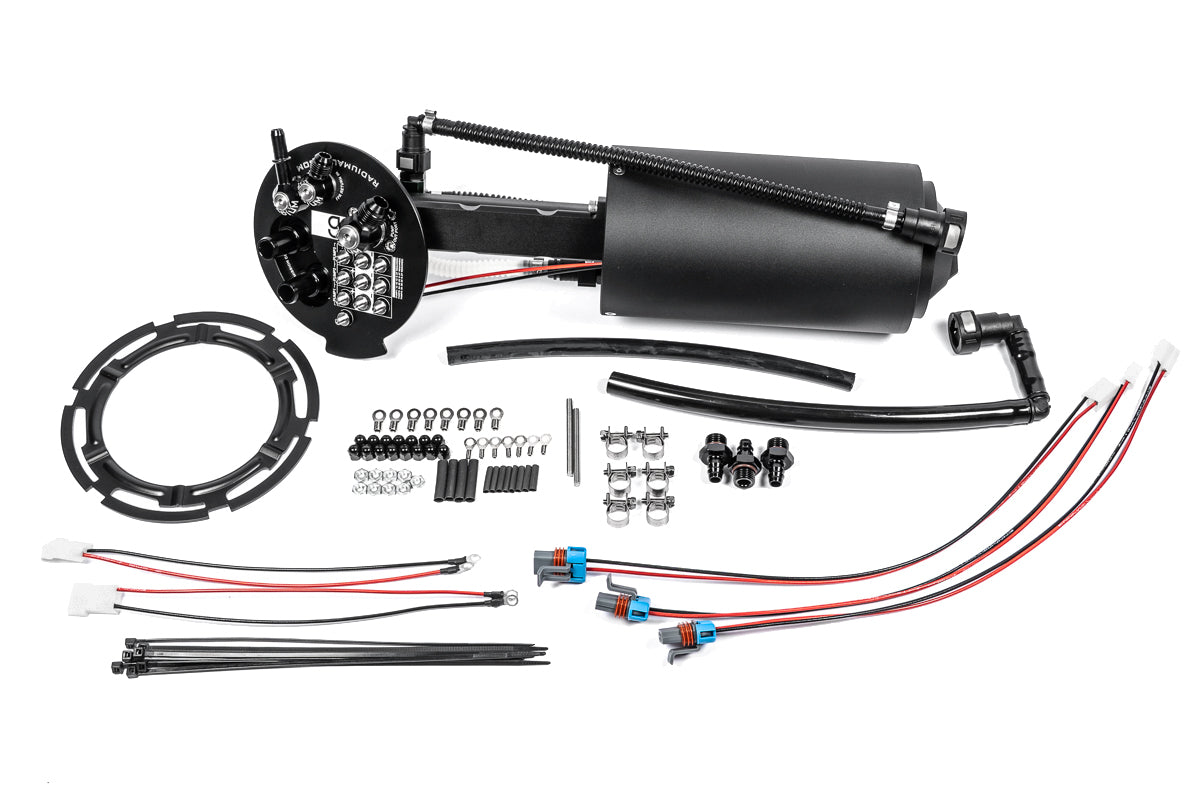

What's Included

• 8AN male fitting for the pump outlet
• 6AN male fitting for the aftermarket return
• 8.5mm barb for the OEM return
• 6.5mm barb fitting for the OEM vent
• OEM fuel sensor mount
• Venturi siphon jet pump
• Fuel-resistant submersible tubing
• ETFE-insulated wiring
• Pump inlet filtration
• 6AN ORB plug
• Stainless steel hardware

Optional Parts

• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump; upgraded wiring recommended for full pump power
• Radium MPR RA Multi Port FPR Fuel Pressure Regulator (20-1100-00 / 20-1100-01) – multi-port regulator accepted by the 20-1279 FPR mount
• Radium DFPR, Dual Fuel Pressure Regulator (20-1102) – dual regulator option for port-injection setups

Important Notes

• Fuel pumps are not listed in Radium's kit contents
• For Walbro F90000-series, Protec, Fuelab or DeatschWerks DW810 pumps see 20-1112; for the Ti Automotive E5LM see 20-1111
• The rear subframe / drivetrain must be removed to access the OEM tanks – the engine is commonly removed as well
• Each pump needs its own relay and fuse – order one wiring kit per pump (qty 1, 2 or 3)
• The OEM FPR delete (Radium 20-1278) is only required for the merged configuration
• Radium also offers a C8 FPR mount (20-1279, accepts 20-1100-00 / -01 or 20-1102 regulators) and an RWD fuel filter mount (20-1280) – contact iilumolab for availability
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) C8s – confirm fitment with iilumolab before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Chevrolet Corvette C8 (2020+) – RH fuel tank
