Radium Engineering CCV Fluid Lock Catch Can Kit for Ford Mustang GT 2011-2014

Radium CCV Fluid Lock Catch Can Kit, Ford Mustang GT (2011-2014)

Application: Ford Mustang GT 5.0 Coyote (2011-2014) – S197
Part Type: CCV Fluid Lock oil catch can kit
Part Number: 20-0279-FL

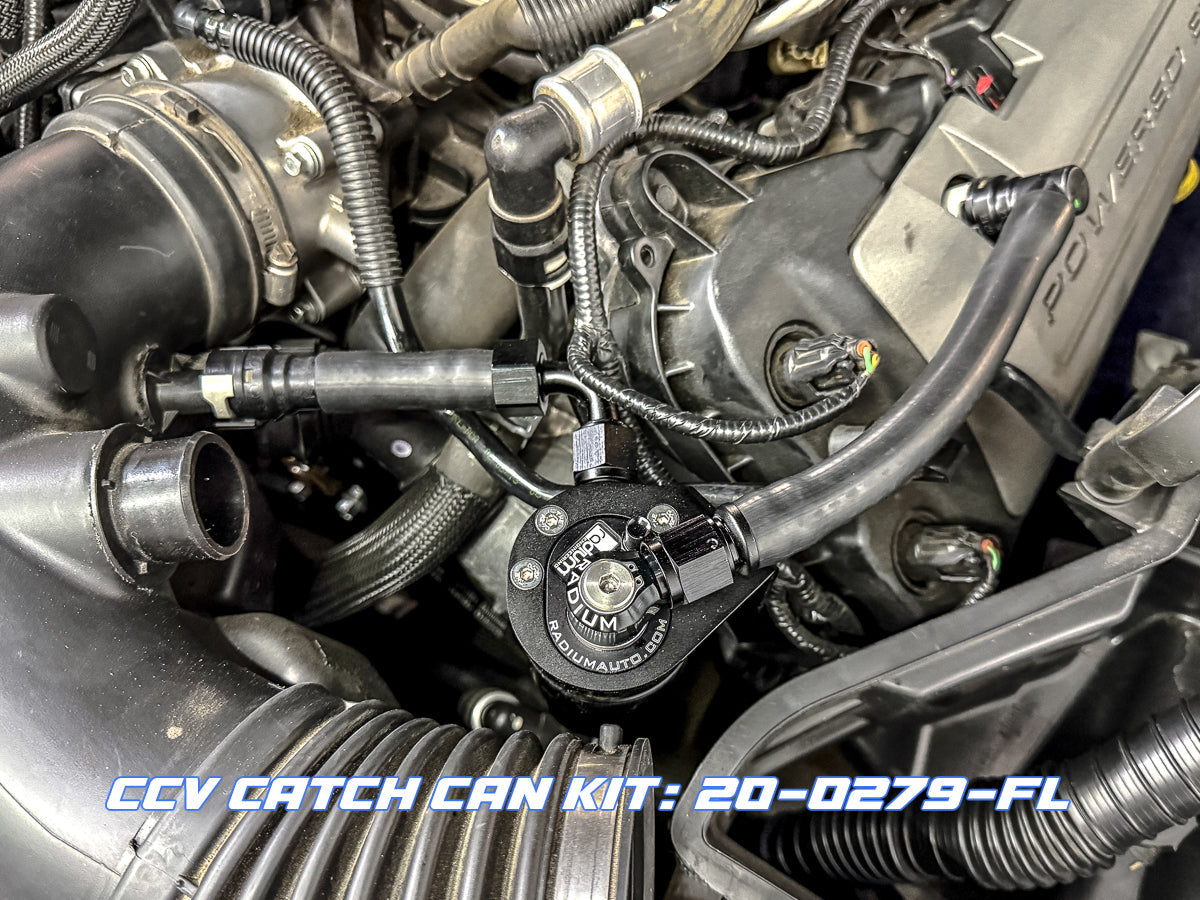

The Radium 20-0279-FL Crankcase Vent (CCV) Catch Can Kit fits the Mustang GT in the S197 chassis from 2011 to 2014. It mounts on the front left engine bank and installs inline between the crankcase breather port and the air filter inlet pipe. The catch can separates oil and water condensation from the crankcase gases before they are drawn into the intake, preventing oil build-up in the intake, intercooler system, throttle body and intake manifold. This effectively raises octane, can improve performance through cleaner inlet air and can lower hydrocarbon emissions, while the closed system keeps oil vapour out of the cabin.

Radium's Fluid Lock design, introduced in 2022, adds a patented mechanism that stops the reservoir overfilling and traps the collected fluid until the can is emptied, so contaminants can't spill into the intake if servicing is missed.

Key Features

• Fluid Lock: Patented Fluid Lock system stops overfilling and traps collected fluid
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required

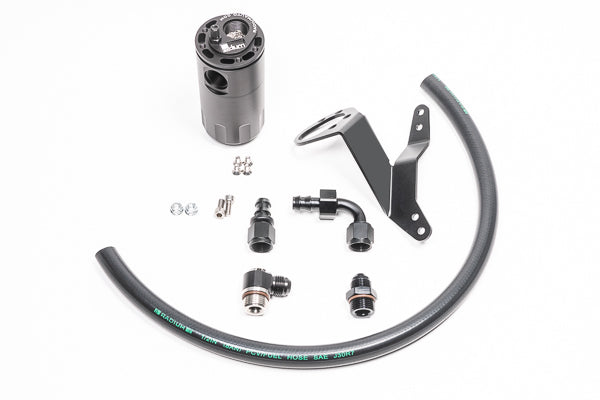

What's Included

• Anodised oil catch can with integrated condenser and dipstick
• Anodised laser-cut Mustang GT specific mounting bracket
• Anodised aluminium 8AN adapter fittings and hose ends
• 1/2in PCV hose (enough for custom applications)
• Stainless steel mounting hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is space under the can
• Radium PCV Fluid Lock Catch Can Kit, Ford Mustang GT (2011-2017) (20-0267-FL) – matching PCV kit

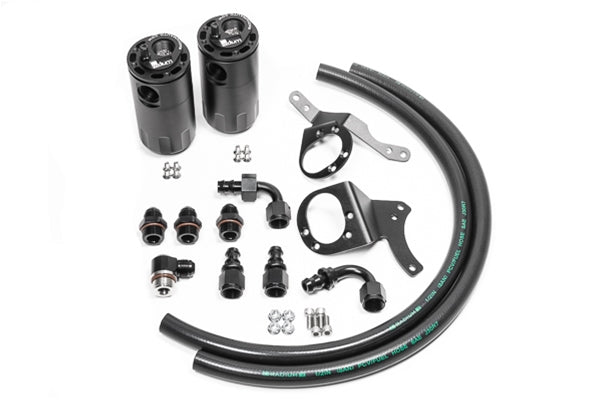

• Radium Dual Fluid Lock Catch Can Kit, Ford Mustang GT (2011-2014) (20-0324-FL) – PCV + CCV dual kit for 2011-2014 S197

Important Notes

• CCV side only – pair with the 20-0267-FL PCV kit or choose the 20-0324-FL dual kit for full coverage
• For 2015-2017 S550 Mustang GT the CCV kit is 20-0287-FL
• There is no fixed emptying interval – start checking the integrated dipstick after 3-4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve not closing under heavy load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang GT S197 (2011-2014) – 5.0 Coyote

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
