Radium Engineering Dual Fluid Lock Catch Can Kit for Ford Mustang GT 2011-2014

Radium Dual Fluid Lock Catch Can Kit, Ford Mustang GT (2011-2014)

Application: Ford Mustang GT 5.0 Coyote (2011-2014) – S197
Part Type: Dual (PCV + CCV) Fluid Lock oil catch can kit
Part Number: 20-0324-FL

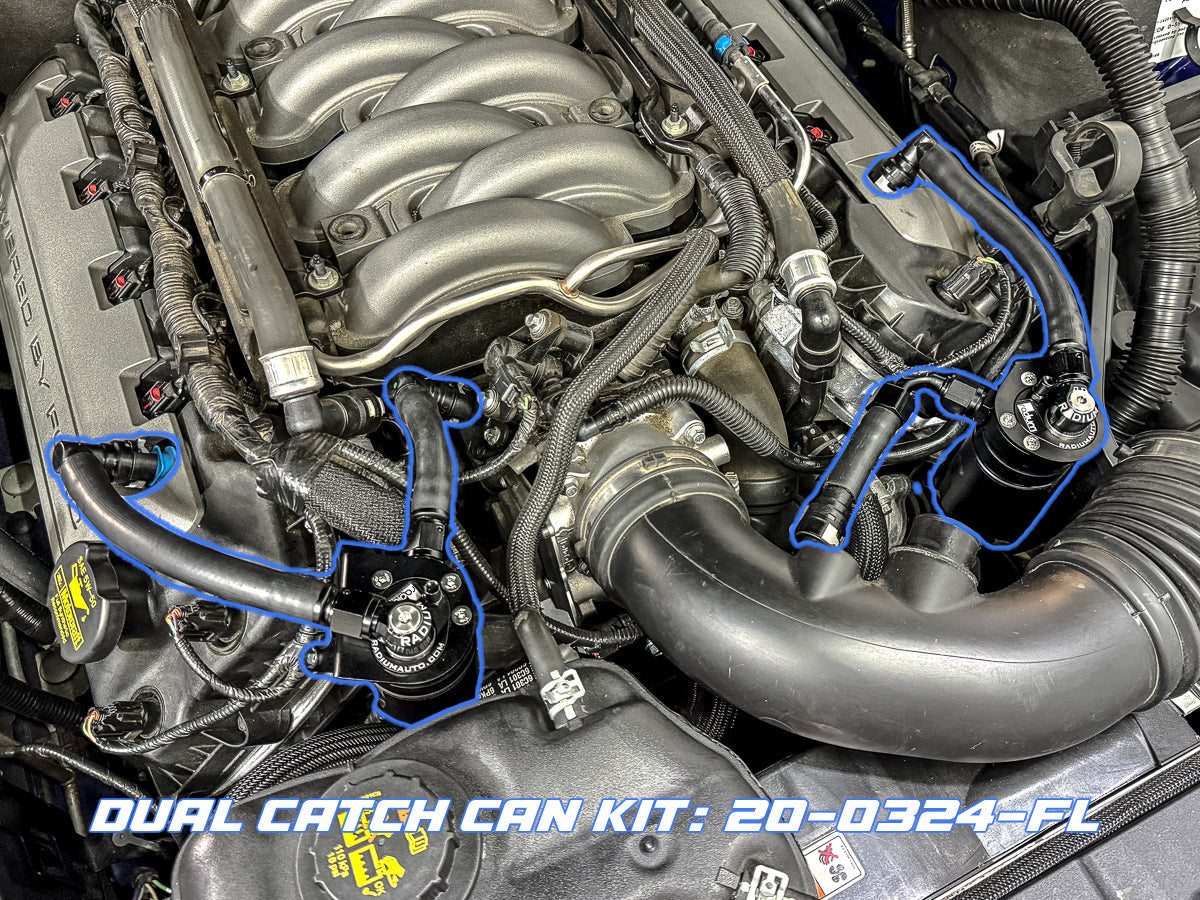

For the ultimate in engine protection, Radium recommends the 20-0324-FL Dual Catch Can Kit, which combines the CCV and PCV catch can kits in a single product for the 2011-2014 S197 Mustang GT. The PCV can mounts on the front right engine bank inline between the PCV breather and the intake manifold, and the CCV can mounts on the front left bank inline between the crankcase breather port and the air filter inlet pipe. The catch can separates oil and water condensation from the crankcase gases before they are drawn into the intake, preventing oil build-up in the intake, intercooler system, throttle body and intake manifold. This effectively raises octane, can improve performance through cleaner inlet air and can lower hydrocarbon emissions, while the closed system keeps oil vapour out of the cabin.

Radium's Fluid Lock design, introduced in 2022, adds a patented mechanism that stops the reservoir overfilling and traps the collected fluid until the can is emptied, so contaminants can't spill into the intake if servicing is missed.

Key Features

• Complete Coverage: PCV and CCV catch cans in one kit
• Fluid Lock: Patented Fluid Lock system stops overfilling and traps collected fluid
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required

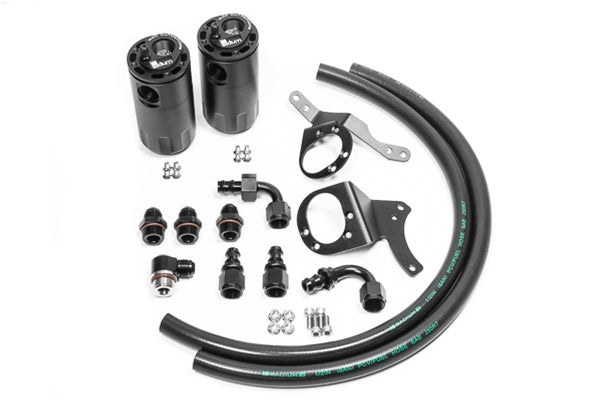

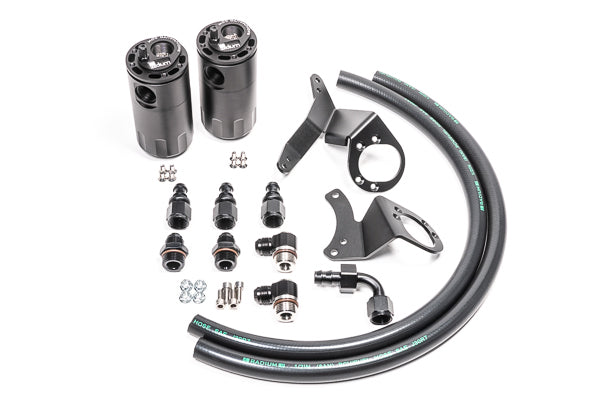

What's Included

• Everything from the 20-0267-FL PCV kit and the 20-0279-FL CCV kit
• Anodised oil catch cans with integrated condenser and dipstick (x2)
• Anodised laser-cut Mustang GT specific mounting brackets
• Anodised aluminium 8AN adapter fittings and hose ends
• 1/2in PCV hose (enough for custom applications)
• Stainless steel mounting hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• Also available separately as the 20-0267-FL PCV kit and 20-0279-FL CCV kit
• For 2015-2017 S550 Mustang GT the dual kit is 20-0325-FL
• There is no fixed emptying interval – start checking the integrated dipstick after 3-4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve not closing under heavy load
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with iilumolab before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang GT S197 (2011-2014) – 5.0 Coyote

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
