Radium 20-0611 RA-Series Fuel Cell, 10.5 Gallon (39.7L) Spare Tyre, FIA & SFI

Radium 20-0611 RA-Series Fuel Cell, 10.5 Gallon (39.7L) Spare Tyre, FIA & SFI

Application: Universal – motorsport fuel cell installations
Part Type: FIA & SFI certified competition fuel cell (RA-Series)
Part Number: 20-0611

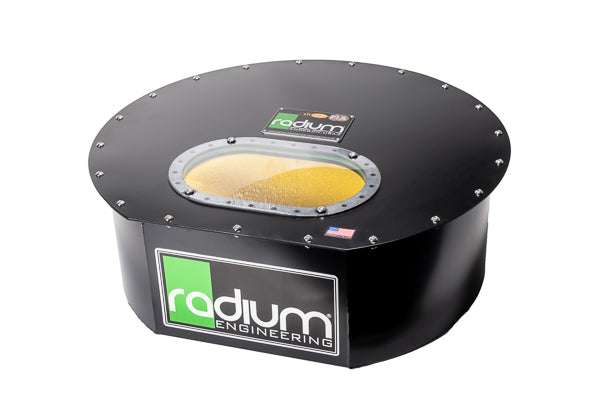

The Radium Engineering 20-0611 is a 10.5 US gallon (39.7L nominal) RA-Series competition fuel cell, designed and manufactured to meet the safety requirements of the FIA and SFI. A competition-grade fuel cell provides maximum performance and safety for high performance vehicles, and RA-Series cells suit all types of motorsport including road racing, time attack, drifting, rally, off-road and endurance. Its circular shape suits mounting in the spare tyre well.

The heart of the cell is a seamless polymer bladder that undergoes thorough testing and carries the critical certifications. The bladder is filled with explosion-suppressing anti-slosh foam and housed in a powder-coated aluminium enclosure with an anodised aluminium nut ring and a removable inspection plate.

Key Features

• Certification: tested and approved by the FIA and SFI; every cell is serialised and supplied with certification paperwork
• Certification life: certifications are valid for 5 years from the date of manufacture
• Capacity: 38.9–39.7 litres (10.3–10.5 US gallons)
• Shape: circular, for spare tyre well mounting
• Fuel compatibility: bladder polymer resists all fuel types, including petrol, diesel, AV gas, E15, E85, ethanol and methanol
• Safety foam: explosion-suppressing anti-slosh foam fitted inside the bladder
• Enclosure: powder-coated aluminium can with anodised aluminium nut ring and removable inspection plate

What's Included

• Seamless polymer bladder (compatible with all popular fuels)
• Explosion-suppressing anti-slosh foam
• Powder-coated aluminium enclosure
• Anodised aluminium nut ring
• Removable inspection plate
• 2 x FKM 6x10 24-bolt gaskets
• Stainless steel hardware
• Certificate of Conformance

Optional Parts

• Radium Spare Tire Fuel Cell Mounting Kit (20-0931) – mounting kit for the RA-Series spare tyre cell
• Radium FCST-X, Fuel Cell Surge Tank (20-1990-00) – Radium fuel cell surge tank and pump system (sold separately)
• Radium Carbon Fibre Fuel Cell Lid, Spare Tyre Cell (13-0411-01) – carbon fibre lid for the spare tyre cell
• Radium Fuel Cell Vent Kit - 8AN (20-0484-08) – fuel cell vent kit
• Radium Fuel Cell Vent Kit - 12AN (20-0484-12) – fuel cell vent kit
• Radium Fuel Cell Subharness Kit (20-0774) – pre-terminated wiring for fuel cell pump systems

Important Notes

• Volumes are given as a range because bladder manufacturing has large tolerances.

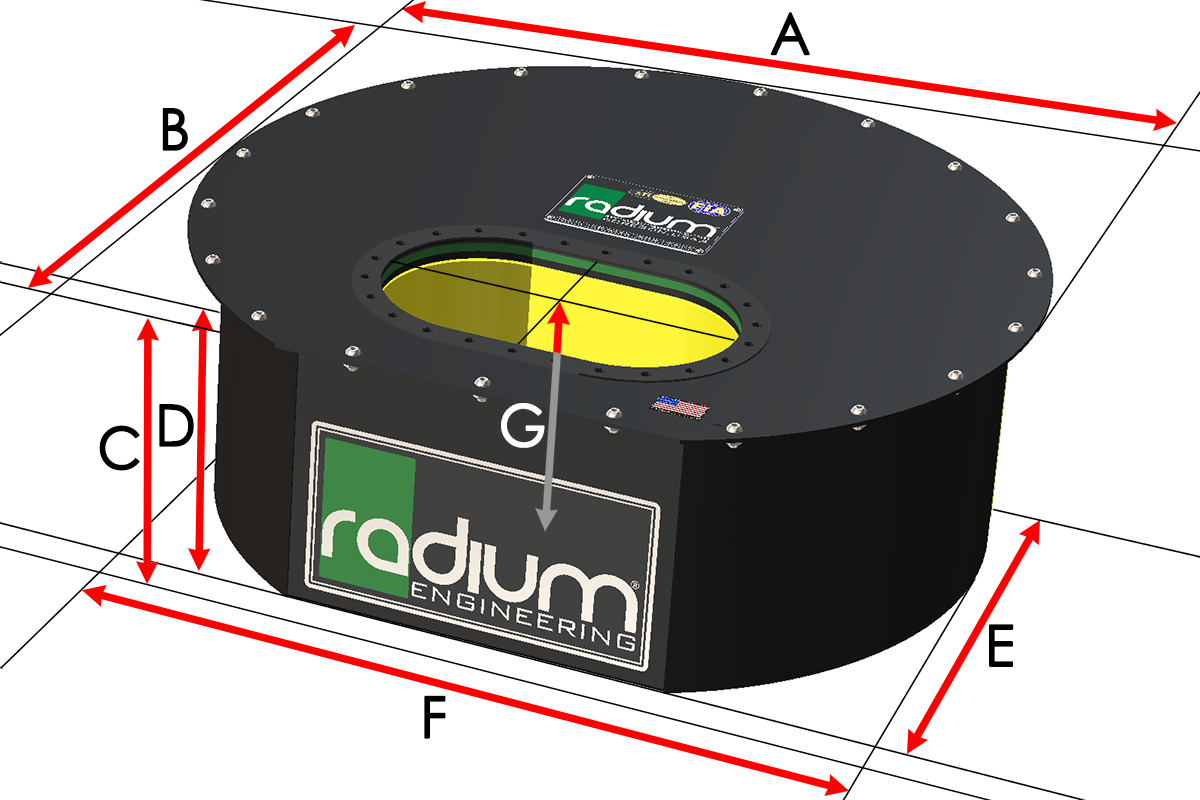

• Measure carefully before ordering – measurements do not account for objects inside the cell. Custom sizes are not available.
• Surge tanks, pump systems and other accessories are sold separately.
• Radium weld-in cages are listed for the 6, 10, 14 and 22 gallon cells only (20-0906/0910/0914/0922) – for this spare tyre cell see the Spare Tire Fuel Cell Mounting Kit (20-0931).
• Radium does not sell cells without certifications.

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
