Radium Spare Tire Fuel Cell Mounting Kit

Radium Spare Tire Fuel Cell Mounting Kit

Application: Radium RA-Series Spare Tire Cell – vehicle spare tyre well
Part Type: Spare tyre fuel cell mounting bracket kit
Part Number: 20-0931

The Radium 20-0931 bracket kit mounts a spare tyre fuel cell in the vehicle's spare tyre well. Spare tyre wells vary between vehicles, so the mounts have slotted holes giving about 15mm (0.6in) of height adjustment.

The kit uses upper and lower brackets with powder-coated aluminium mounts, 1/4in-20 stainless bolts and flange nuts, and adhesive mounting foam. Review the product dimensions and measure your vehicle before ordering.

Key Features

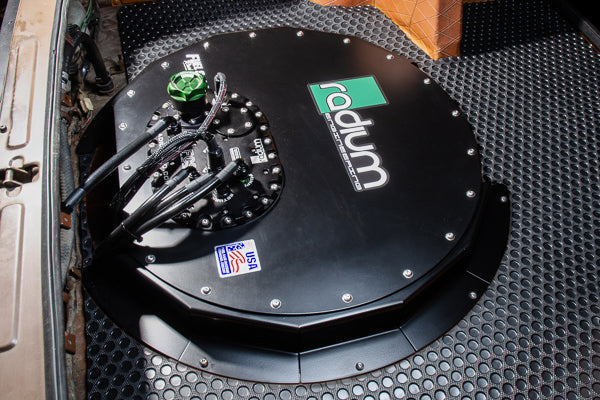

• Spare Well Mounting: Mounts the fuel cell in the spare tyre well

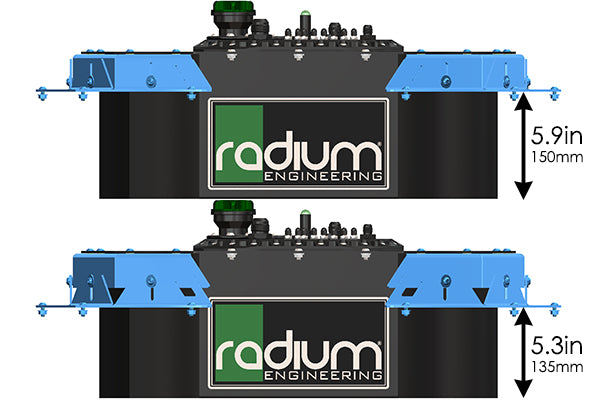

• Height Adjustable: Slotted holes allow about 15mm (0.6in) of adjustment
• Powder-Coated Aluminium: Upper and lower aluminium mounts
• Hardware Included: Stainless 1/4in-20 bolts, zinc-plated flange nuts and adhesive foam

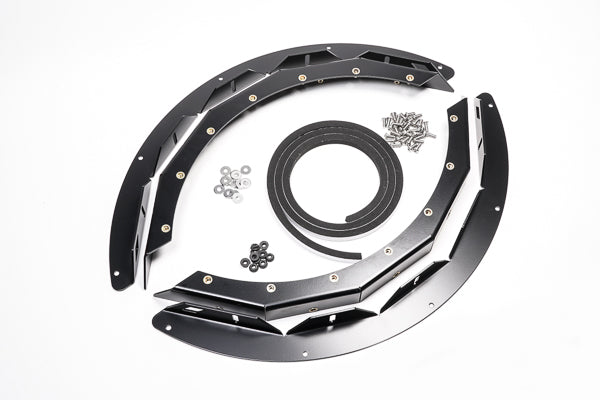

What's Included

• Powder-coated aluminium mounts
• Stainless steel 1/4in-20 mounting bolts
• Zinc-plated 1/4in-20 flange nuts
• Mounting adhesive foam

Important Notes

• Fuel cell not included
• Verified with the Radium RA-Series Spare Tire Cell – other spare tyre cells may fit but are not verified

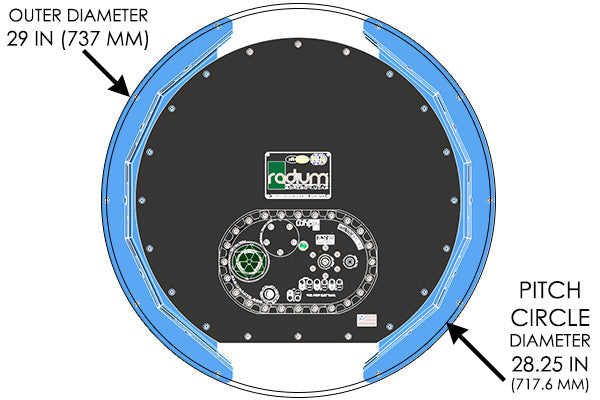

• Spare tyre wells vary – check the dimensions and measure your vehicle before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
