Radium Engineering PCV Fluid Lock Catch Can Kit for Ford Fiesta ST 2013-2018

Radium PCV Fluid Lock Catch Can Kit - Ford Fiesta ST 13-18

Application: Ford Fiesta ST (2014-2019)
Part Type: Fluid Lock PCV oil catch can kit
Part Number: 20-0377-FL

Radium catch cans separate oil and water condensation from crankcase gases before they reach the intake, preventing oil build-up in the intake, intercooler, throttle body and intake manifold. Cleaner inlet air raises effective octane and improves performance, lowers hydrocarbon emissions, and the closed system keeps oil vapour out of the cabin.

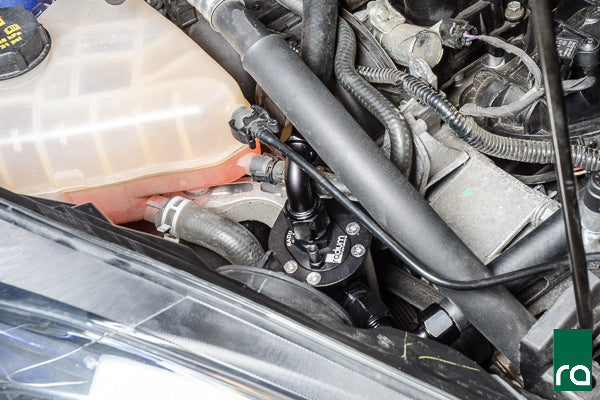

The 20-0377-FL PCV kit runs inline with the PCV valve and retains its factory function. The valve closes under boost, so this line sees metered vacuum at idle, cruise and deceleration – and because the Radium can is pressure sealed, a direct intake manifold connection is permitted on this boosted engine. The can secures to the front right-hand motor mount and fits under the OEM engine cover without modification.

Key Features

• Fluid Lock: Patented design prevents overfilling and holds collected fluid until emptied
• Large Ports: 10AN ORB inlet/outlet, 4AN ORB drain
• 2-Step Baffling: Two-step oil separation
• Dipstick: O-ring sealed dipstick for easy inspection
• Direct Fitment: No drilling required
• Under-Cover Fitment: Mounts to the front RH motor mount, under the OEM engine cover

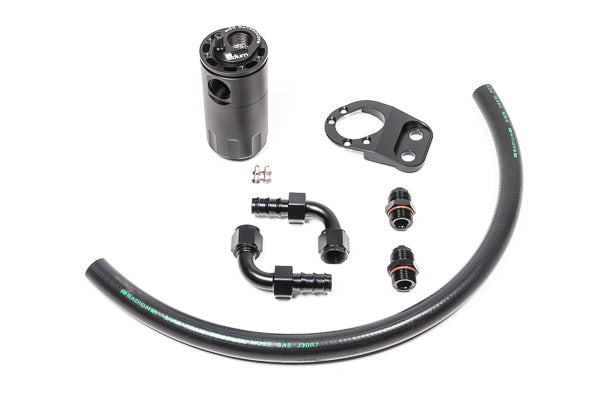

What's Included

• Anodised oil catch can with integrated condenser and dipstick
• Fiesta ST-specific anodised aluminium mounting bracket
• Anodised aluminium AN adapter fittings and hose ends
• PCV hose for custom applications
• Stainless steel mounting hardware

Optional Parts

• Radium Fluid Lock Crankcase Catch Can Kit - Ford Fiesta ST 13-18 (20-0378-FL) – Crankcase vent-side catch can kit
• Radium Dual Fluid Lock Catch Can Kit - Ford Fiesta ST 13-18 (20-0379-FL) – Both cans together – recommended by Radium for maximum engine protection
• Radium Catch Can Petcock Drain Kit (20-0024) – Drain the can without removing the reservoir, where space allows

Important Notes

• Covers the PCV side only – the crankcase vent side is covered by 20-0378-FL, or buy both as 20-0379-FL
• There is no set emptying interval – check the dipstick from 3-4 weeks and adjust; PCV systems typically collect more than CCV systems
• Excessive collection can indicate an engine problem such as blow-by, an overfilled crankcase, poor breather placement or a PCV valve that does not close under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Fiesta ST (2014-2019)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
