Radium Engineering Fluid Lock Crankcase Catch Can Kit for Ford Fiesta ST 2013-2018

Radium Fluid Lock Crankcase Catch Can Kit - Ford Fiesta ST 13-18

Application: Ford Fiesta ST (2014-2019)
Part Type: Fluid Lock crankcase (CCV) oil catch can kit
Part Number: 20-0378-FL

Radium catch cans separate oil and water condensation from crankcase gases before they reach the intake, preventing oil build-up in the intake, intercooler, throttle body and intake manifold. Cleaner inlet air raises effective octane and improves performance, lowers hydrocarbon emissions, and the closed system keeps oil vapour out of the cabin.

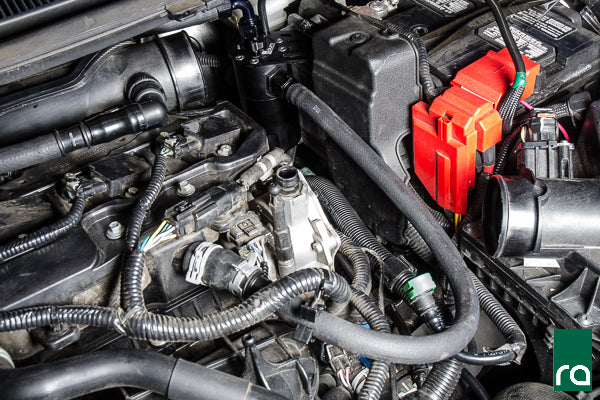

The 20-0378-FL crankcase kit runs inline with the crankcase vent port. Flow is low at light load, but at wide-open throttle the vent sees high blow-by flow that would otherwise leave oil in the intake pipe and intercooler. The can secures to the two ECU mounting studs on the rear left-hand side of the engine bay and fits under the OEM engine cover.

Key Features

• Fluid Lock: Patented design prevents overfilling and holds collected fluid until emptied
• Large Ports: 10AN ORB inlet/outlet, 4AN ORB drain
• 2-Step Baffling: Two-step oil separation
• Dipstick: O-ring sealed dipstick for easy inspection
• Direct Fitment: No drilling required
• Under-Cover Fitment: Mounts to the two ECU studs, rear LH side, under the OEM engine cover

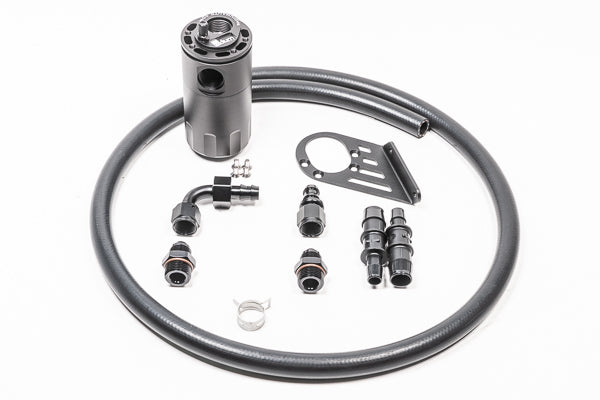

What's Included

• Anodised oil catch can with integrated condenser and dipstick
• Fiesta ST-specific anodised aluminium mounting bracket
• Anodised aluminium AN adapter fittings and hose ends
• PCV hose for custom applications
• Stainless steel mounting hardware

Optional Parts

• Radium PCV Fluid Lock Catch Can Kit - Ford Fiesta ST 13-18 (20-0377-FL) – PCV-side catch can kit
• Radium Dual Fluid Lock Catch Can Kit - Ford Fiesta ST 13-18 (20-0379-FL) – Both cans together – recommended by Radium for maximum engine protection
• Radium Catch Can Petcock Drain Kit (20-0024) – Drain the can without removing the reservoir, where space allows

Important Notes

• RHD vehicles: the ECU cover near the battery is metal, and Radium's instructions state it must be modified to fit the crankcase catch can
• Covers the crankcase vent side only – the PCV side is covered by 20-0377-FL, or buy both as 20-0379-FL
• There is no set emptying interval – check the dipstick from 3-4 weeks and adjust; PCV systems typically collect more than CCV systems
• Excessive collection can indicate an engine problem such as blow-by, an overfilled crankcase, poor breather placement or a PCV valve that does not close under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Fiesta ST (2014-2019)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
