Radium Fuel Pump Hanger, Mitsubishi Lancer Evolution X - Brushless Pumps (Pumps Not Included)

Radium Fuel Pump Hanger, Mitsubishi Lancer Evolution X - Brushless Pumps (Pumps Not Included)

Application: 2008-2015 Mitsubishi Lancer Evolution X (4B11T)
Part Type: In-tank fuel pump hanger (brushless pumps, pumps not included)
Part Number: 20-1643

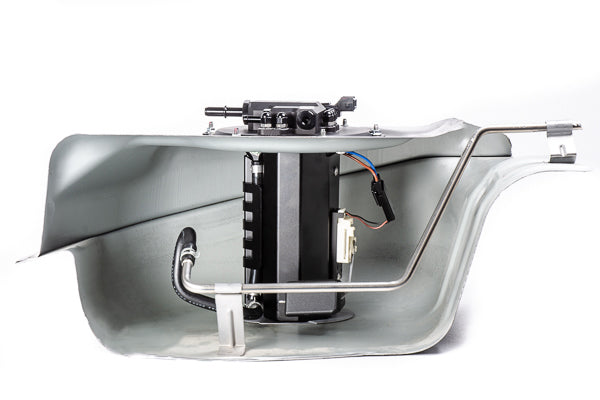

The Radium 20-1643 fuel pump hanger for the Mitsubishi Evo X suits brushless pumps. It has been redesigned for improved fuel collection and easier installation, completely replaces the factory in-tank fuel pump module and allows one or two aftermarket pumps to be used. The OEM level sender, fuel temperature sensor and fuel tank pressure sensor are retained to keep factory functionality.

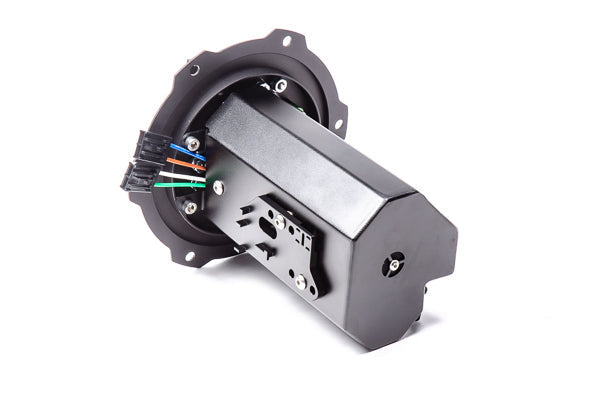

A one-piece anodised aluminium collector box keeps fuel trapped around the pump inlet(s), with a 355 LPH one-way fill valve in its base and constant replenishment from the regulator return. Radium has also redesigned the siphon system to remove the restriction of the OEM venturi jet pump while still scavenging fuel, so higher flowing pumps can be used without fuel pressure issues.

Key Features

• Factory Functions Retained: OEM level sender, fuel temperature sensor and tank pressure sensor are kept
• Collector Box: One-piece anodised aluminium collector with a 355 LPH one-way fill valve
• Redesigned Jet Pump: Removes the OEM venturi restriction while still scavenging fuel
• Twin Pump Capable: Components for one or two compatible pumps
• Plumbing: Adapter fittings for the OEM fuel lines plus 8AN and 6AN adapters for AN hoses
• AN Ports: 8AN ORB female pump-out port and 6AN ORB female return port

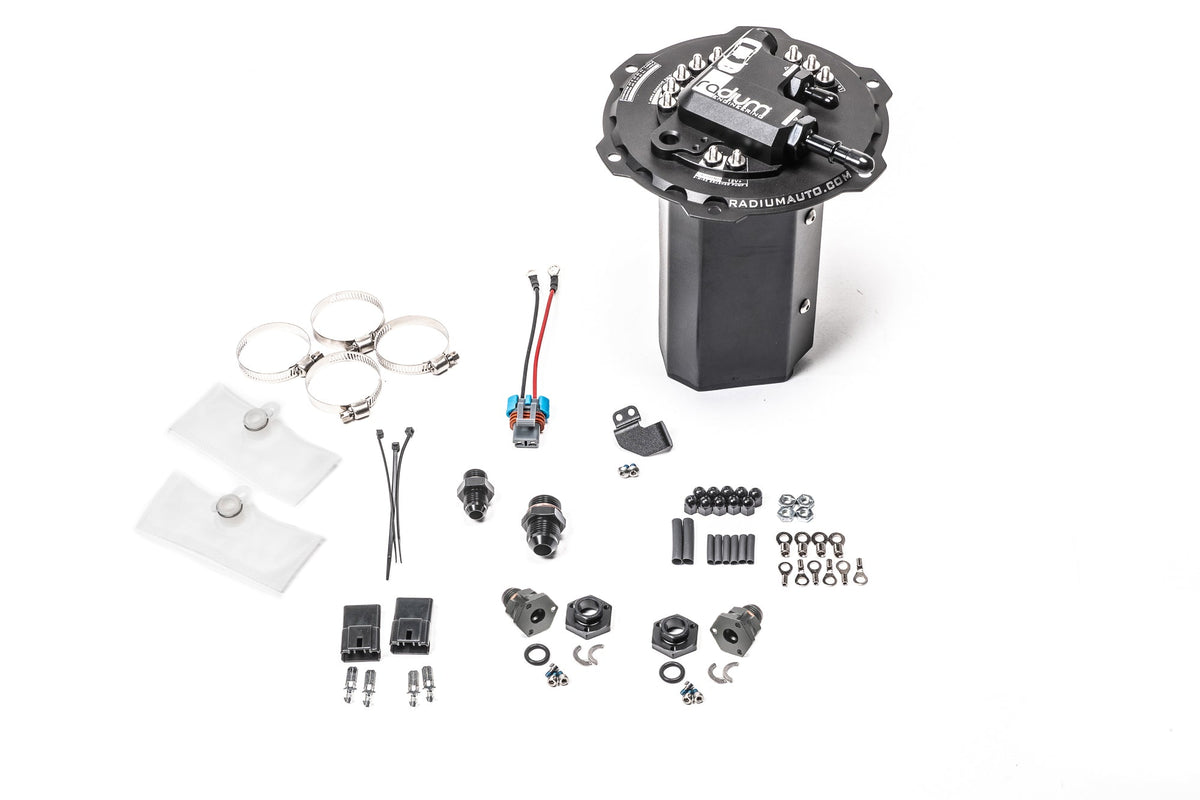

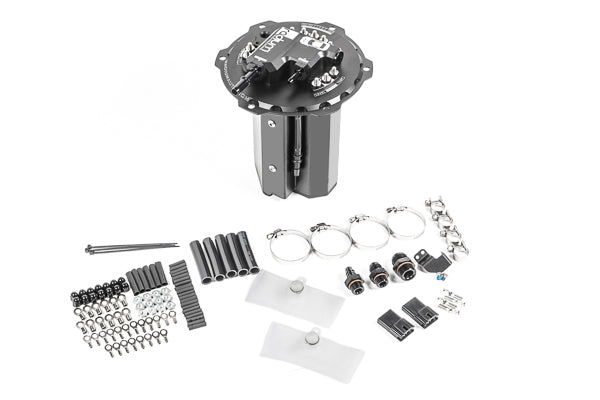

What's Included

• Partially assembled hanger with the components for one or two compatible pumps (some parts are unused depending on configuration)
• Electrical parts for external wiring on top of the hanger
• Adapter fittings for direct connection to the OEM fuel lines
• 8AN and 6AN adapter fittings for aftermarket AN hoses
• One-piece anodised aluminium collector box with 355 LPH one-way fill valve

Optional Parts

• Radium Engineering Evo X Fuel Feed - Stainless Filter (20-0946-03) – 8AN PTFE feed kit with a 10 micron stainless filter (integrated check valve) – replaces the OEM post-pump filter the hanger removes
• Radium Fuel Feed Line Kit w/Microglass Filter - Mitsubishi Evo X (20-0946-05) – same feed kit with a 6 micron microglass filter
• Radium Fuel Hanger Return - Mitsubishi Evo X (20-0249) – converts the OEM feed line into a 6AN PTFE return line to a Radium direct-mount regulator
• Radium Fuel Tank Pressure Sensor Plug - Mitsubishi Evo X (20-0421) – blocks the port on cars without the OEM fuel tank pressure sensor (many non-North American cars)
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump, with an independent relay and fuse, so each pump gets full current
• Radium Fuel Pump Hanger, Mitsubishi Lancer Evolution X - DW400 (Pumps Not Included) (20-1644) – version for other pumps

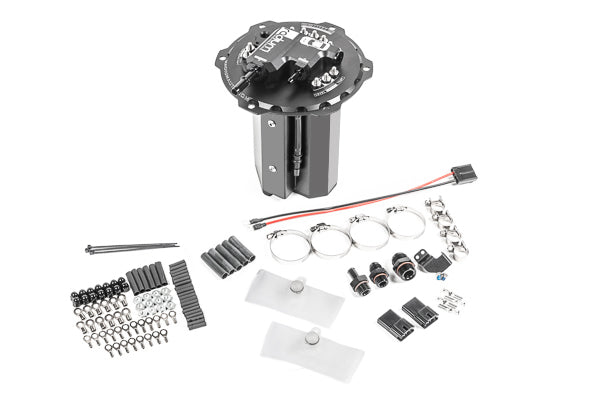

• Radium Fuel Pump Hanger - Mitsubishi Evo X (20-1640 / 20-1642) – Evo X hanger versions for other pumps

Important Notes

• Fuel pumps are not included
• Compatible pumps: DeatschWerks DW440, DeatschWerks DW810, Fuelab 49614 and Protec 11928 (brushless; filter socks supplied by the pump maker)
• Brushless pumps need flying lead harnesses (not included), supplied by the pump manufacturer
• DeatschWerks DW810: fit the 10mm barb supplied with the pump to the pump outlet
• Other similar pumps may fit but have not been verified by Radium
• Depending on fuel pressure the venturi jet pump consumes 15-45 LPH – allow for this when sizing pumps
• The hanger eliminates the OEM post-pump filter – a low-micron aftermarket filter must be installed downstream
• No check valve is included – if fuel pressure must hold after shutdown, fit a check valve (the 20-0946 feed kit filters include one)
• OEM wiring should not be used with pumps drawing more than 15A – a single pump can reuse the OEM controller wiring, but upgraded wiring is recommended for full output
• Radium recommends upgrading the feed and return lines when running multiple pumps
• Cars without the OEM fuel tank pressure sensor (many non-North American cars) need the 20-0421 plug
• Product may differ slightly from photos
• Radium gives no RHD/LHD statement for this hanger
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution X 2008-2015 (4B11T)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
