Radium Engineering Fuel Pump Hanger for Mitsubishi Evo X

Radium Fuel Pump Hanger - Mitsubishi Evo X

Application: Mitsubishi Lancer Evolution X (2008–2015)
Part Type: In-tank fuel pump hanger (single or twin pump)
Part Number: 20-1640, 20-1642, 20-0644-00

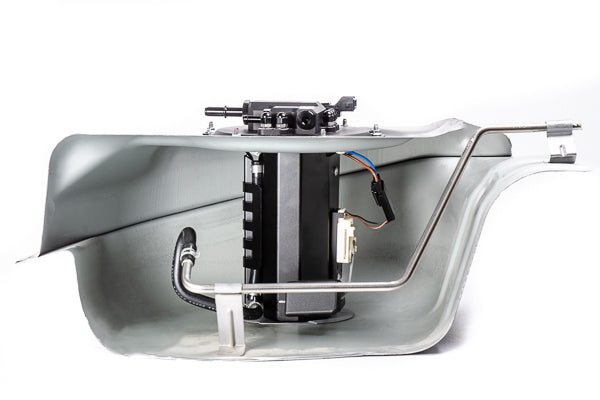

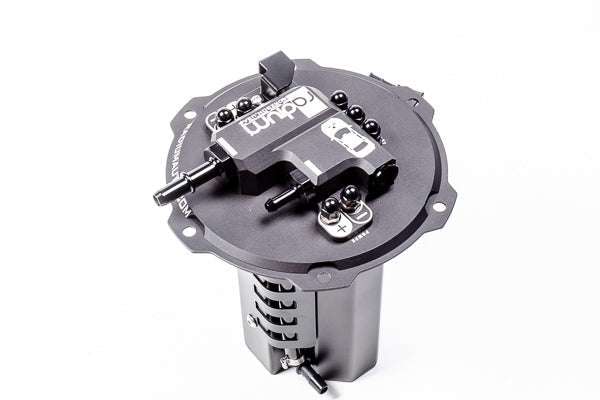

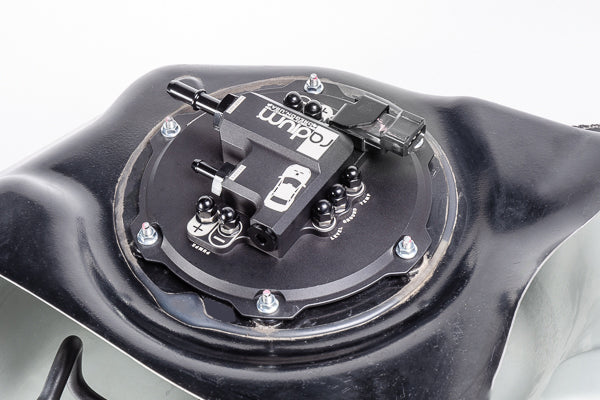

The Radium Evo X Fuel Pump Hanger replaces the factory in-tank pump module and runs one or two aftermarket pumps, while keeping the OEM fuel level sender, fuel temperature sensor and tank pressure sensor in use. Adapter fittings connect to the OEM lines, and 8AN and 6AN adapters are included for aftermarket AN hose.

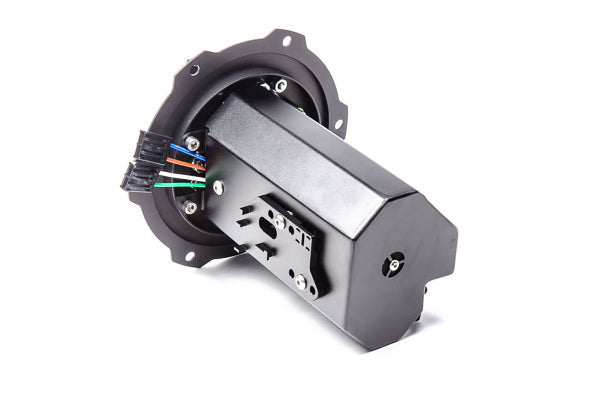

To fight fuel starvation, a one-piece anodised aluminium collector box surrounds the pump inlets with a 355lph one-way fill valve, refilled by fuel returning from the regulator. The venturi jet pump has been redesigned to remove the restriction found in the stock system.

Key Features

• Twin Pump Capable: Runs 1 or 2 fuel pumps

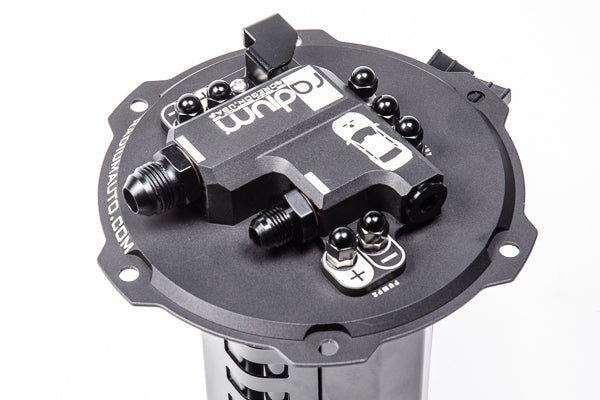

• 8AN ORB Feed: Single merged 8AN ORB female pump-out port
• 6AN ORB Return: 6AN ORB female return port
• Collector Box: Anodised aluminium with 355lph one-way fill valve
• Venturi Siphon: Redesigned jet pump without the stock restriction
• Retains OEM Sensors: Fuel level, fuel temperature and tank pressure sensors
• High-Current Electrical: Anti-rotation stainless terminals
• Fuel Compatibility: Suits alternative fuels

Available Configurations

• 20-1640: Walbro GSS342 (255lph) or AEM 50-1220
• 20-1642: Walbro F90000267, F90000274 or F90000285
• 20-0644-00: Deatschwerks DW400 (Radium now lists the DW400 hanger as 20-1644)

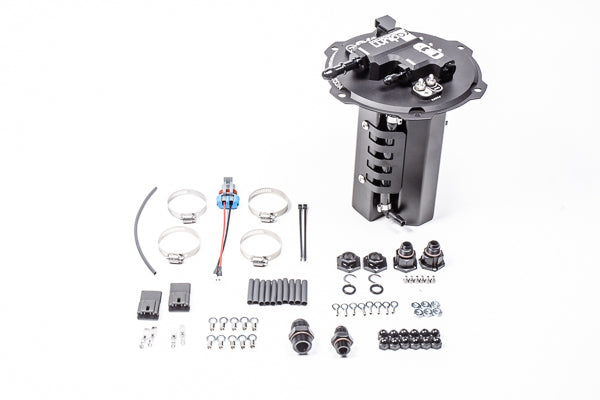

What's Included

• Partially assembled fuel pump hanger with components for 1 or 2 compatible pumps
• Electrical parts bag for external wiring
• Adapter fittings for the OEM lines, plus 8AN and 6AN adapters for AN hose
• Sock filters for Walbro pumps (AEM and Deatschwerks supply their own)

Optional Parts

• Radium Engineering Evo X Fuel Feed - Stainless Filter (20-0946-03) – 10 micron filter, bracket and 8AN PTFE feed hose with built-in check valve
• Radium Fuel Hanger Return - Mitsubishi Evo X (20-0249) – 6AN PTFE return hose kit
• Radium Fuel Tank Pressure Sensor Plug - Mitsubishi Evo X (20-0421) – for vehicles without the OEM tank pressure sensor
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – upgraded wiring, one kit per aftermarket pump

Important Notes

• Fuel pumps sold separately
• The hanger removes the OEM post-pump filter – a low-micron aftermarket filter must be installed downstream to protect the injectors
• The venturi jet pump uses 15–45 lph depending on pressure – allow for this when sizing pumps
• Fit a check valve if fuel pressure must hold after shutdown (the 20-0946 feed kit has one built in)
• Vehicles without the OEM tank pressure sensor (Mitsubishi 8651A025) on the top hat need the 20-0421 plug
• Upgrade the feed and return lines when running multiple pumps; upgraded wiring is recommended
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution X (2008–2015)
