Radium Engineering Fuel Pump Hanger for Honda Civic Type R FL5 2022+

Radium Engineering Fuel Pump Hanger, 2022+ FL5 Honda Civic Type R

Application: 2022+ Honda Civic Type R (FL5)
Part Type: Fuel pump hanger (1–3 pumps, pumps not included)
Part Number: 20-1090, 20-1092

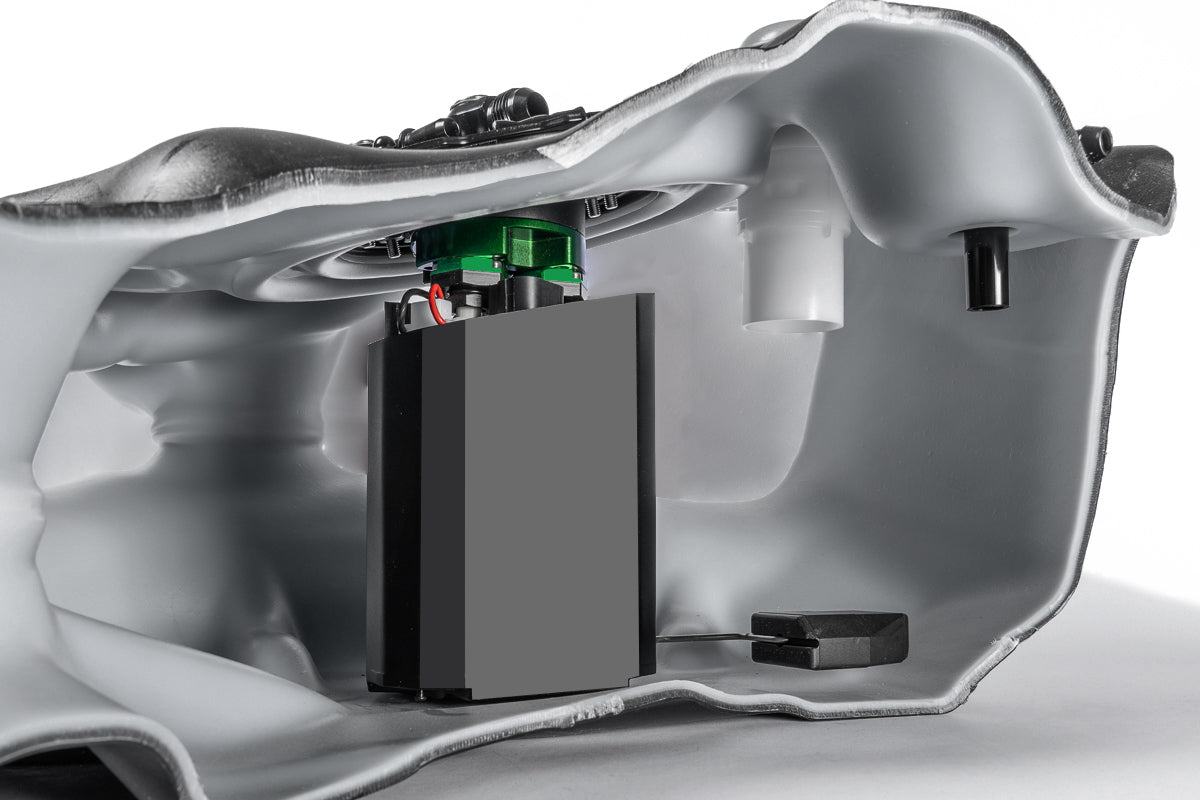

The Radium Engineering fuel pump hanger for the 2022+ FL5 Honda Civic Type R is a drop-in upgrade that accepts one, two or three aftermarket fuel pumps and reuses the OEM fuel level sensor. Hardware is supplied to configure the hanger for one to three pumps, so some components will not be used depending on the setup.

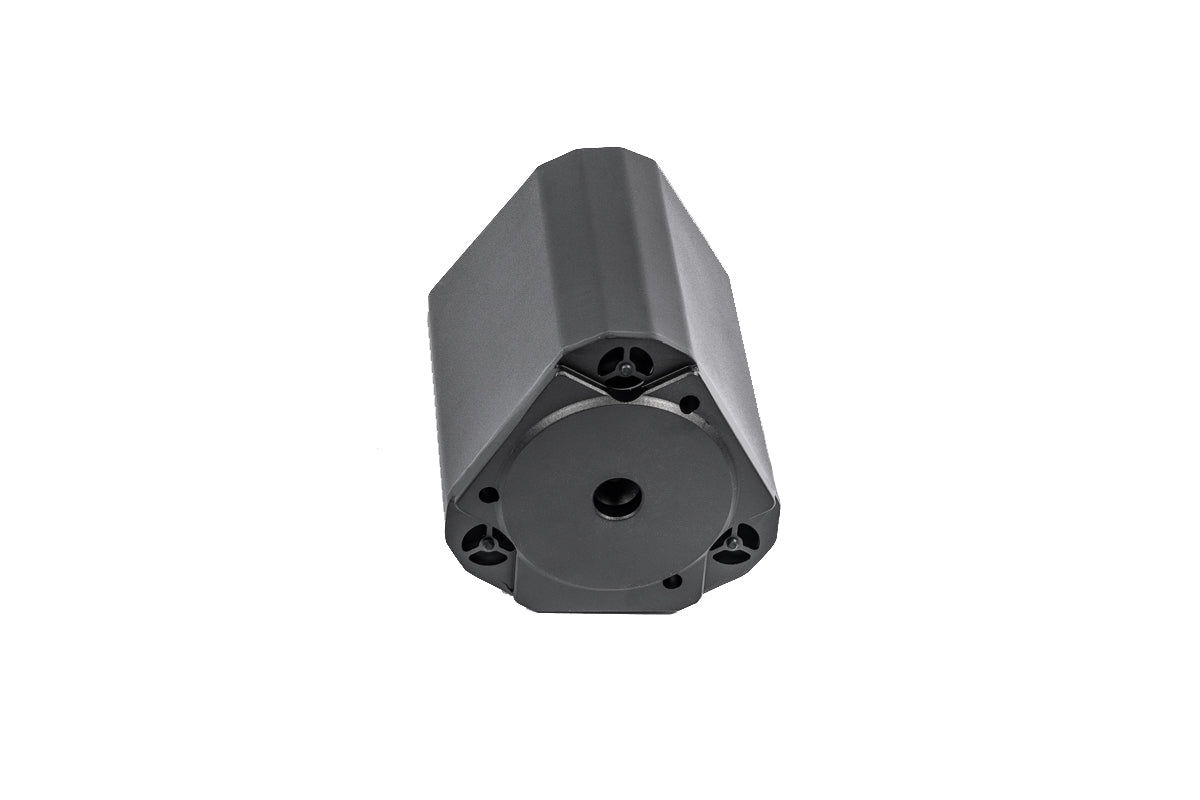

An integrated one-piece collector keeps fuel around the pump inlets during aggressive driving. Three one-way fill valves in the collector base (355LPH each) let fuel in but not out, and the collector is continuously replenished by returning fuel from the regulator. Custom stainless steel electrical studs with an anti-rotation design handle high current, with hermetically sealed, serviceable connections.

Key Features

• Drop-In Installation: Reuses the OEM fuel level sensor
• 1–3 Pumps: Hardware supplied for one, two or three pumps

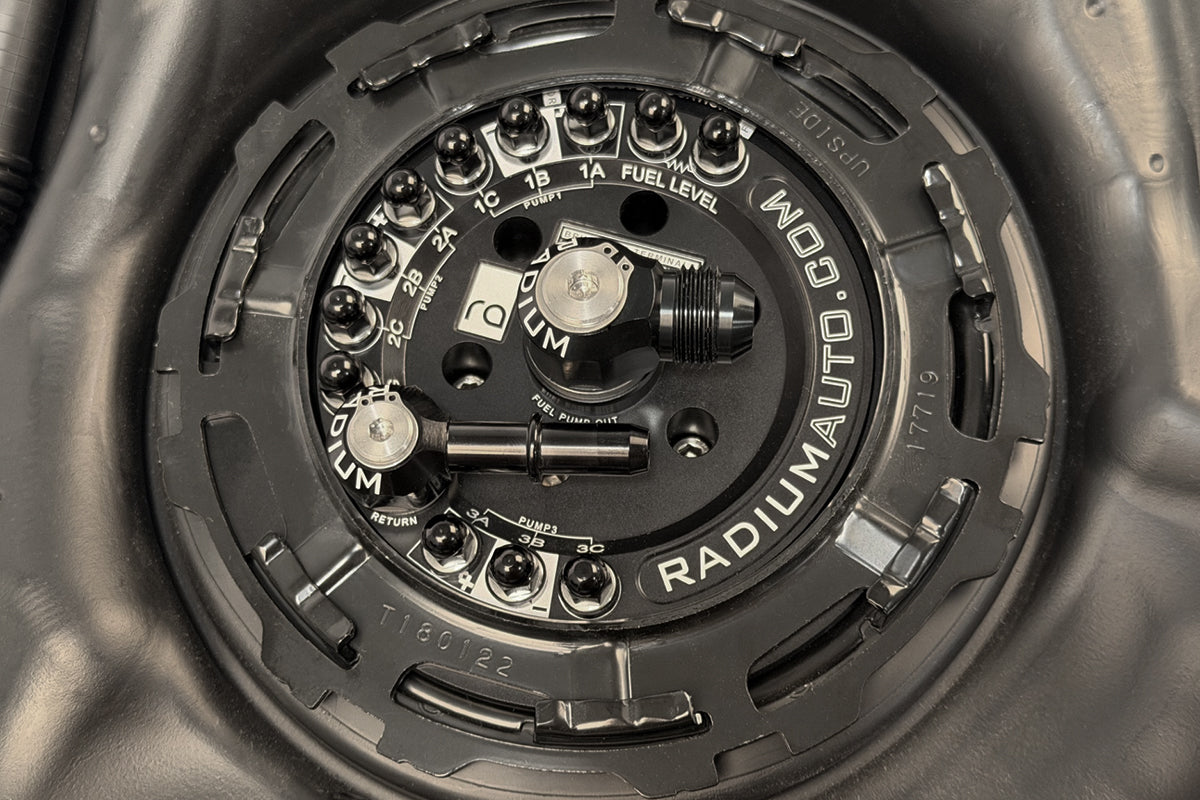

• Merged Outlet: 10AN ORB (7/8"-14) female pump-out port with low-profile 8AN male fitting
• Return Inlet: 6AN ORB (9/16"-18) female with low-profile SAE quick connect so the factory feed line can be reused as the return
• Fuel Starvation Protection: Collector with three 355LPH one-way fill valves and return-fuel replenishment
• High-Current Electrical: Anti-rotation stainless studs, hermetically sealed serviceable connections
• Fuel Compatibility: Petrol, methanol and E85 compliant

Available Configurations

• 20-1090: For AEM 50-1220 and DeatschWerks DW440 (brushless) pumps
• 20-1092: For Ti Automotive Walbro F90000267, F90000274 and F90000285 pumps; also Fuelab 49614 and Protec 11928 brushless pumps (see notes)

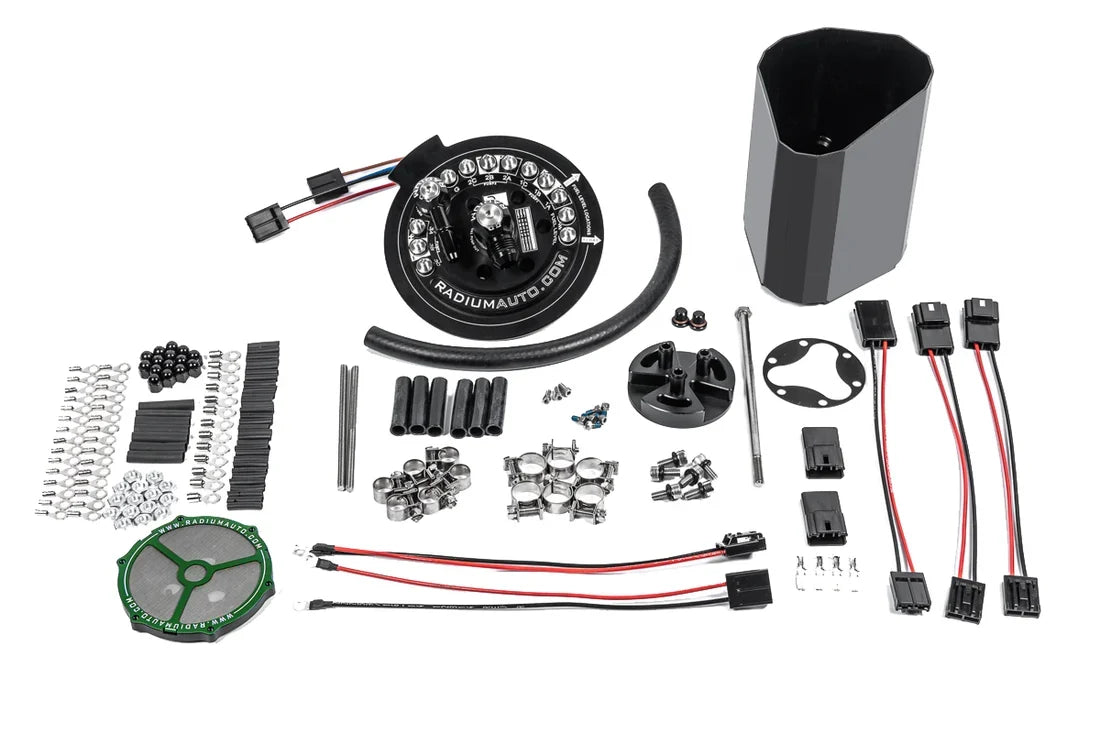

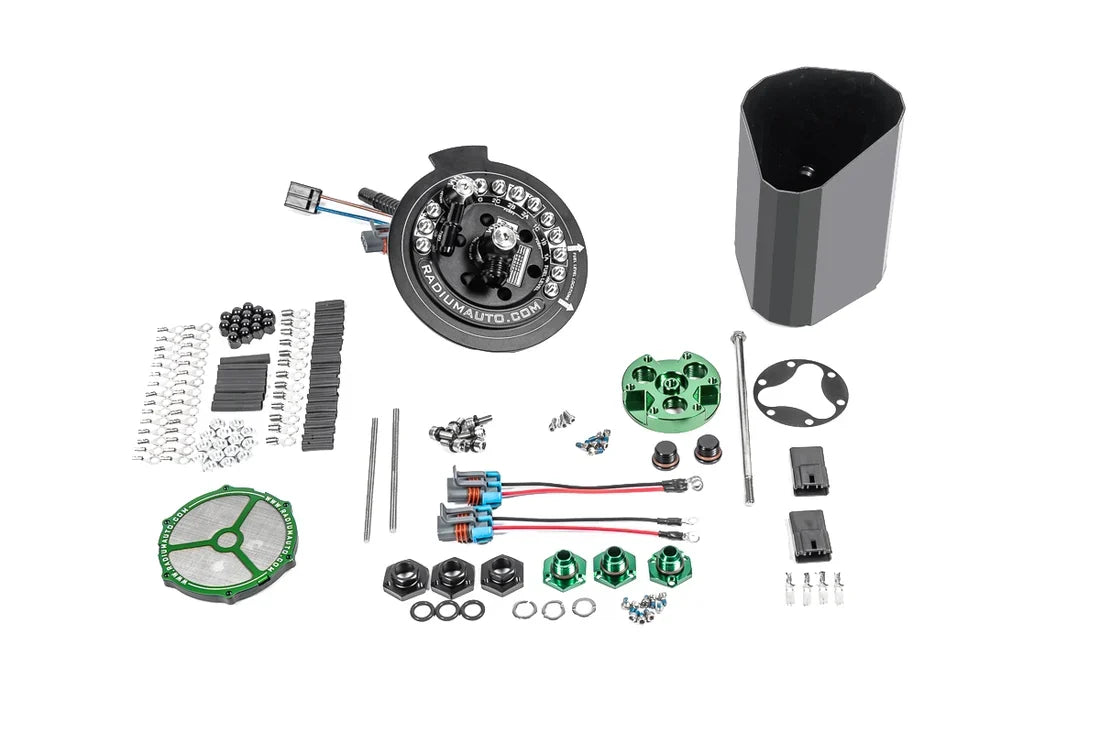

What's Included

• Partially assembled fuel pump hanger
• Hardware for installing 1 to 3 pumps
• Electrical parts kit for external wiring

Optional Parts

• Radium Engineering Fuel Hanger Plumbing Kit, 2022+ FL5 Honda Civic Type R (20-1095-03 / 20-1095-05) – includes the required external regulator and filter
• Radium Engineering Fuel Pump Filter Base Adapter – 12mm Brushless Pumps (13-1187) – required for Fuelab 49614 and Protec 11928 pumps
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump

Important Notes

• Not compatible with the FK8 Civic Type R
• Fuel pumps are not included
• An external fuel pressure regulator and a low-micron external fuel filter are required – both are included in the 20-1095 plumbing kits
• Single-pump installs can reuse the OEM wiring (upgrade recommended for full pump power); each additional pump needs a dedicated relay, fuse and wiring kit
• 20-1092 with Fuelab 49614 or Protec 11928: these pumps need the 13-1187 base, and the supplied upper triple pump block and adapters are not compatible – use the Radium Triple Pump Block with 10mm standard barbs, submersible hose for 10mm barbs and EFI hose clamps
• Other pumps may fit but have not been verified by Radium

Vehicle Fitment

• 2022+ Honda Civic Type R (FL5)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
