Radium Engineering Fuel Hanger Plumbing Kit, 2022+ FL5 Honda Civic Type R

Radium Engineering Fuel Hanger Plumbing Kit, 2022+ FL5 Honda Civic Type R

Application: 2022+ Honda Civic Type R (FL5) with Radium fuel pump hanger
Part Type: Fuel hanger plumbing kit
Part Number: 20-1095-03, 20-1095-05

Radium Engineering FL5 fuel hanger plumbing kits complete the installation of the Radium 2022+ Civic Type R fuel pump hanger, supplying the regulator, filter, fuel lines, fittings and mounting hardware between the in-tank hanger and the engine bay.

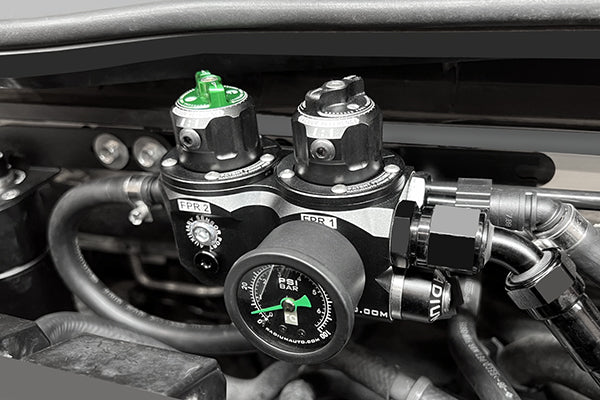

An 8AN PTFE line runs from the hanger outlet behind the fuel tank to a high-flow filter mounted on the left-hand side of the tank with a two-piece billet mount, then on towards the front of the vehicle; billet aluminium retainers replace the factory plastic fuel/brake line retainers. In the engine bay, 6AN EFI hose and SAE quick connects convert the OEM feed line into a return, and at the rear a 6AN PTFE line and quick connect join the OEM line to the hanger return port. The firewall-mounted dual fuel pressure regulator (DFPR) uses OEM threaded holes and provides two independent outputs.

Key Features

• Dual Fuel Pressure Regulator: Black knob and 0–100psi gauge set the low-pressure supply for the OEM direct injection system
• Port Injection Ready: Independent second output (green knob) for a future port injection system – plugged with 8AN ORB plug

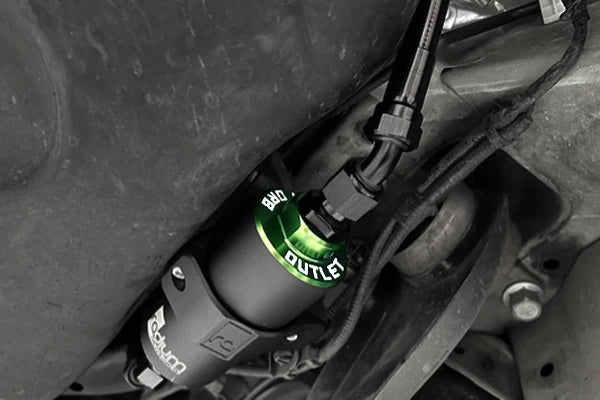

• High-Flow Filter: Mounted on the LH side of the tank with a two-piece billet mount
• 8AN PTFE Feed: Large feed line from hanger to engine bay
• OEM Line Reuse: SAE quick connects convert the OEM feed line into the return
• Billet Line Retainers: Replace the factory plastic fuel/brake line retainers

Available Configurations

• 20-1095-03: 10 micron stainless steel filter element
• 20-1095-05: 6 micron microglass filter element

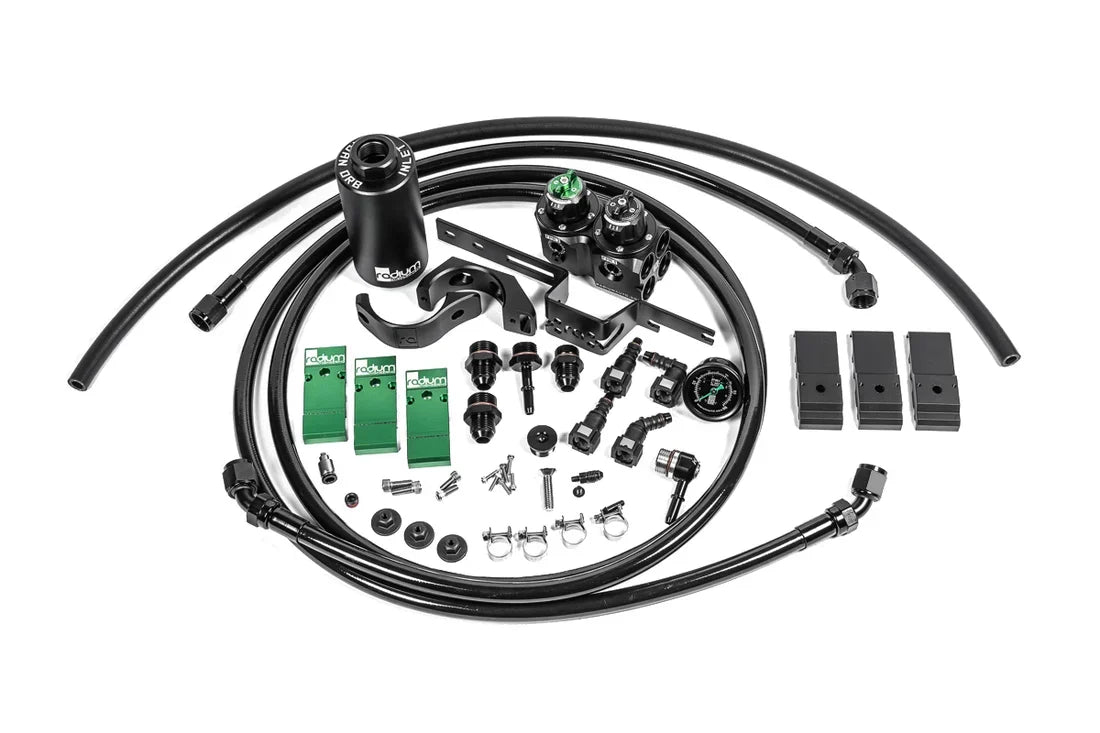

What's Included

• DFPR fuel pressure regulator
• 0–100psi fuel pressure gauge
• Fuel filter (-03 10 micron stainless or -05 6 micron microglass)
• 8AN fuel filter adapter fittings
• Fuel/brake line retainers (x3)
• 8AN PTFE fuel feed hoses
• SAE quick connect adapters
• Stainless steel hardware
• 5/32in vacuum tubing
• Miscellaneous adapter fittings

Optional Parts

• Radium Engineering Fuel Pump Hanger, 2022+ FL5 Honda Civic Type R (20-1090 / 20-1092) – the Radium hanger this kit is designed for

Important Notes

• Designed for use with the Radium FL5 fuel pump hanger (sold separately)
• Adding port injection later requires an 8AN ORB DFPR adapter and fuel line for the second regulator output
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• 2022+ Honda Civic Type R (FL5)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
