Radium Engineering Single Catch Can, 8An Kit, Fluid Lock

Radium Single Catch Can, 8An Kit, Fluid Lock

Application: Universal – engines with crankcase ventilation (PCV/CCV) oil build-up, where no vehicle-specific Radium kit is available
Part Type: Universal single catch can kit, 8AN, Fluid Lock
Part Number: 20-1808-FL

Radium's universal single catch can kits are for engines suffering oil build-up from the crankcase ventilation system. Radium offers bolt-in kits for many vehicles, and these universal kits are the next-best option where no direct-fit kit exists. Each kit combines Radium's patented universal Fluid Lock catch can with a universal mounting bracket, PCV hose, adapter fittings and PushLok hose ends.

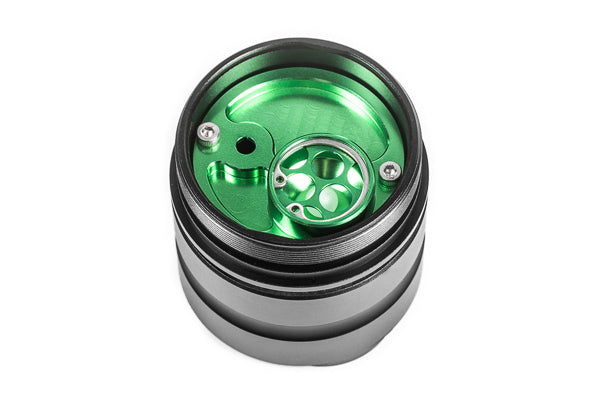

The Fluid Lock design uses a patented internal mechanism that stops the can overfilling and traps collected fluid until it is emptied, so contaminants aren't drawn into the intake if servicing is missed. Choose the kit by measuring the breather fittings on the engine – the 8AN kit suits 1/2in (12.7mm) ID hose.

Key Features

• Fluid Lock Design: Patented internal mechanism prevents overfilling and holds collected fluid until emptied
• Capacity: 7 fl oz (207ml) reservoir
• Construction: Machined 6061 aluminium with O-ring sealed halves and ports, suitable for forced induction
• Ports: 10AN ORB main inlet and outlet, adapted to 8AN with the supplied fittings

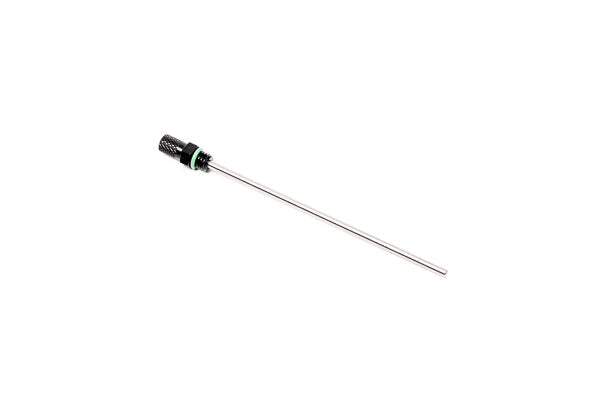

• Integrated Dipstick: M8x1.25mm threaded dipstick for checking the oil level
• Easy Draining: Unscrew the lower half of the body, or use the plugged 4AN ORB drain port where space is tight
• Complete Kit: Can, bracket, 1/2in PCV hose, fittings and three styles of 8AN PushLok hose ends

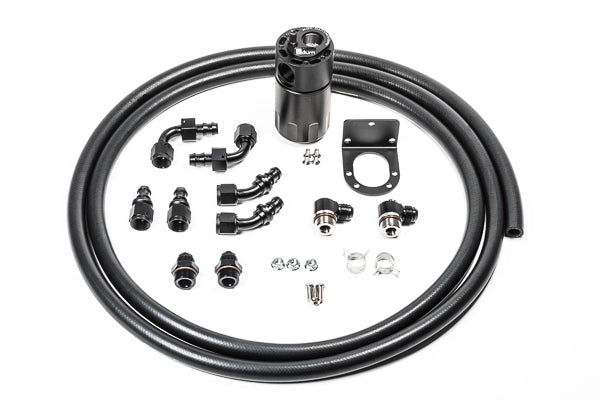

What's Included

• Fluid Lock catch can
• 10AN ORB to 8AN male low-profile swivel fittings (x2)
• 10AN ORB to 8AN male fittings (x2)
• 8AN PushLok straight hose ends (x2)
• 8AN PushLok 45° hose ends (x2)
• 8AN PushLok 90° hose ends (x2)
• PCV hose, 1/2in ID, 3.05m (10ft)
• Spring clamps for 1/2in hose (x2)
• Aluminium mounting bracket
• Stainless M6x1mm bolts
• Flanged M6x1mm nuts
• Service interval decal

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – for draining the can remotely

Important Notes

• Some engines need more than one catch can, depending on the PCV system design
• Catch cans are not designed for use with aftermarket crankcase vacuum pumps
• Not every included fitting will be used on every install; extra fittings are sold separately
• If the can fills and isn't emptied, an internal valve closes to keep contaminants out of the engine while normal venting continues
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
