Radium Remote Mount, Vented Female Dry Break, 2.25"

Radium Remote Mount, Vented Female Dry Break, 2.25"

Application: Universal – remote mounted dry break filler for fuel cells or tanks using 2.25in ID filler hose
Part Type: Remote mount vented female dry break filler
Part Number: 20-1204-V

A remote mounted fuel filler is not located directly on the fuel tank or fuel cell but somewhere else on the vehicle, such as a guard. The system has three main parts: the remote filler (the housing and cap on the outside of the vehicle), the remote fill neck (the barb or AN connection on the fuel cell or FCST) and the filler hose that joins them.

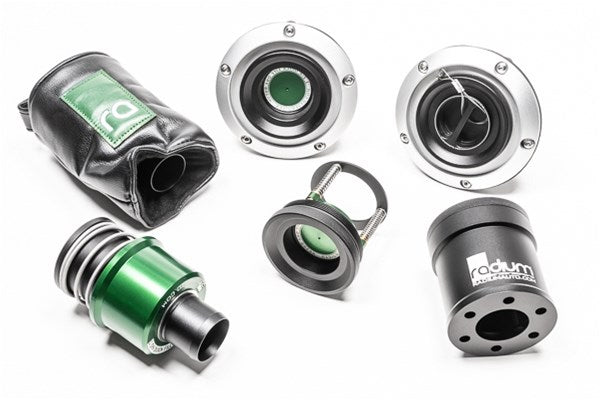

Dry breaks allow quick fuel filling with no mess. The male dry break probe connects to a dump can fuel jug and the female receiver installs on the vehicle's fuel filler; when the two couplings mesh, both valve seals open and close with synchronised timing so no fuel leaks. Used with a Radium 20-0535 DSV valve, there is no need to monitor the fill as the vent shuts off automatically when full.

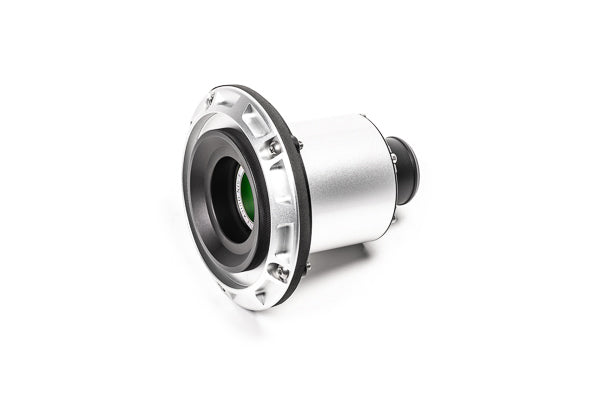

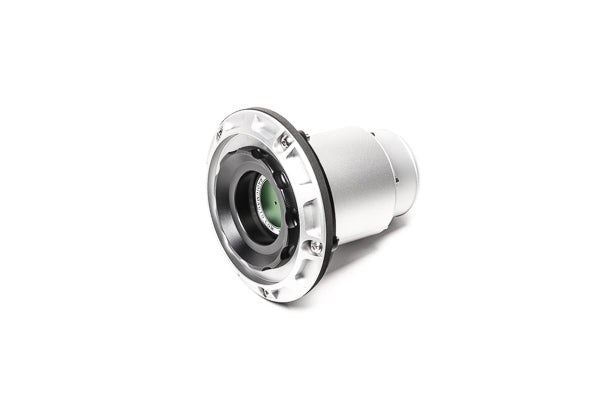

This quick fill filler mates with 1.5in male dry break dump cans and is designed for remote mounting to an external surface such as a guard. It includes the 1.5in female vented dry break, gasket, stainless steel hardware, aluminium housing and aluminium nut ring, and the vented cap has roll-over protection in case the vehicle is ever inverted.

Key Features

• Dry Break: Radium 20-0549-V 1.5in female vented dry break with roll-over protection
• Outlet: Machined hose barb for 2.25in ID filler hose
• Mounting: 77mm (3.03in) hole, stainless hardware on a 108mm (4.25in) PCD with aluminium nut ring
• Flange: 121mm (4.75in) OD
• Height: 104mm (4.08in) from dry break to barb
• Fuel Compatibility: Unleaded and leaded petrol, diesel, AV gas, methanol, ethanol, E15 and E85

What's Included

• 1.5in female vented dry break (20-0549-V)
• Aluminium housing
• Aluminium nut ring
• Gasket
• Stainless steel hardware

Optional Parts

• Radium Dry Break, 1.5", Male, PRV (20-0996) – mating 1.5in male dry break probe with PRV
• Radium Quick Fill Dump Can, 6Gal, 1.5" Dry Break | PRV (20-1697-01) – Radium quick fill dump can with 1.5in dry break
• Radium Dry Break Filler Replacement Dust Cap (20-0604) – dust cap to keep debris out
• Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – DSV for automatic vent shut-off when the cell is full
• Radium Remote Mount Filler Adapter, 1.5" (20-1015) – outlet adapter for 1.5in hose
• Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) – 24AN outlet adapter

Important Notes

• Fill necks, hose and other tank-side accessories are not included
• Mount on a relatively flat surface higher than the fuel tank fill point; Radium's instructions call for a 77mm (3.03in) hole and five 6mm (1/4in) bolt holes
• Mates with Radium 20-0996 or 20-0496 male dry breaks and other dry breaks of the same size
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
