Radium Dry Break, 1.5", Male, PRV
Tax included. Shipping calculated at checkout
Description

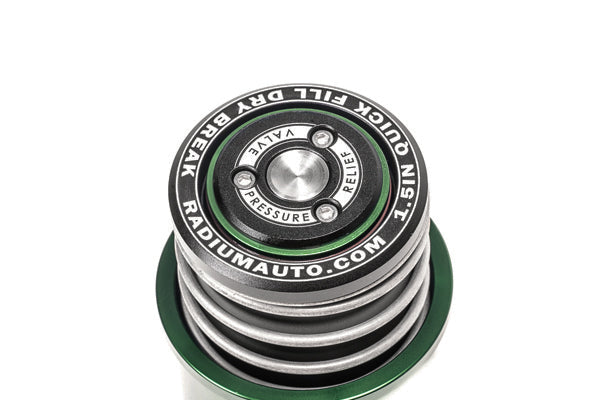

Radium Dry Break, 1.5", Male, PRV
Application: Quick fill dump cans using a 1.5in ID hose; mates with 1.5in female dry breaks
Part Type: Male dry break probe with pressure relief valve
Part Number: 20-0996
Dry breaks allow quick fuel filling with no mess. The male dry break probe connects to a dump can fuel jug and the female receiver installs on the vehicle's fuel filler; when the two couplings mesh, both valve seals open and close with synchronised timing so no fuel leaks. Used with a Radium 20-0535 DSV valve, there is no need to monitor the fill as the vent shuts off automatically when full.
The 20-0996 probe installs onto the fill spout of a dump can and features a 1.5in OD barb. Its PRV (pressure relief valve) lets the sealed side of the dump can be vented when it warms up – simply push down on the centre stainless steel valve to purge the air pressure.
Key Features
- Pressure Relief Valve: Push the centre stainless valve to vent a warm, sealed dump can
- Hose Barb: 1.5in OD
- Construction: Anodised aluminium with stainless steel hardware
- Seals: Aflas O-rings, recommended for methanol
- Fuel Compatibility: Unleaded and leaded petrol, diesel, AV gas, methanol, ethanol, E15 and E85
- Interchangeable: Compatible with other dry breaks of the same size
What's Included

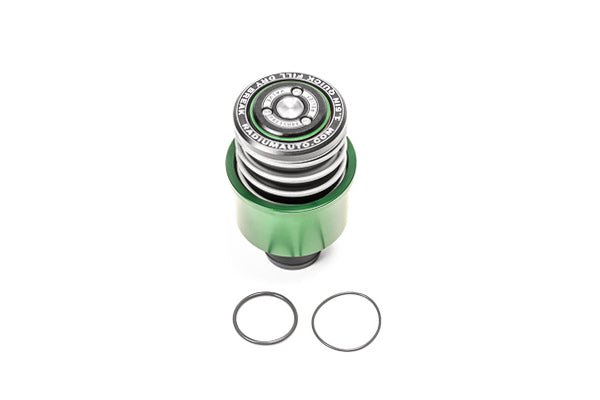

- Male dry break probe with PRV
- Aflas O-rings
Optional Parts
- Radium Dump Can Dry Break Probe Cover (15-0004) – probe cover to keep dirt off the probe
- Radium Dry Break Probe Restrictor, 1" (20-0704) – 1in restrictor for WRL / ZRS rules
- Radium Dry Break, 1.5In, Female, Vented (20-0549-V) – mating 1.5in female vented dry break
- Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – DSV for automatic vent shut-off when the cell is full
Important Notes
- Probe cover sold separately
Vehicle Fitment
- Quick fill dump cans with a 1.5in ID fill hose (replacement probe for Radium dump cans)
- Mates with Radium 20-0495-V, 20-0504-V and 20-0549-V female dry breaks and 20-1004-V, 20-1104-V, 20-1204-V remote fillers
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
