Radium Engineering Quick Fill Dump Can, 6Gal, 1.5" Dry Break | PRV

Radium Quick Fill Dump Can, 6Gal, 1.5" Dry Break | PRV

Application: Universal – motorsport refuelling with 1.5" dry break receptacles
Part Type: Quick fill dump can, 1.5" dry break with PRV
Part Number: 20-1697-01

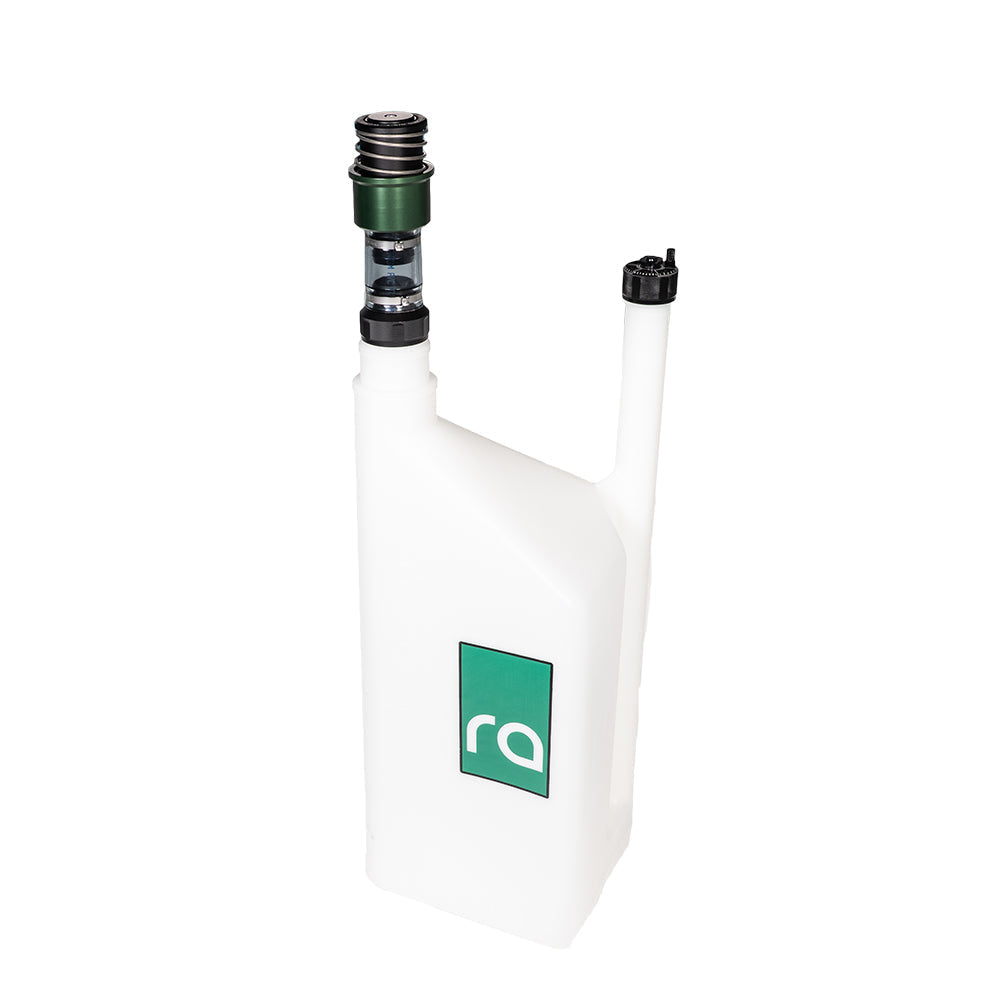

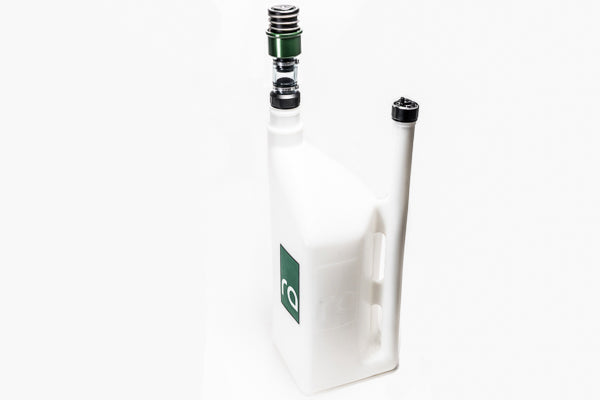

Radium Engineering quick fill dump cans are built for motorsport, where fast refuelling during pit stops matters – they can fill up to 14 times faster than a standard fuel jug. The key is the large 1.675" (43mm) OD vent tube that runs from the bottom of the can, allowing air to replace the outgoing fuel without the 'gurgle' caused by a vacuum. The can is moulded from a polymer that is safe for all fuel types, matches the standard 9.5" x 9.5" fuel jug footprint and has graduations in US gallons on one side and litres on the other.

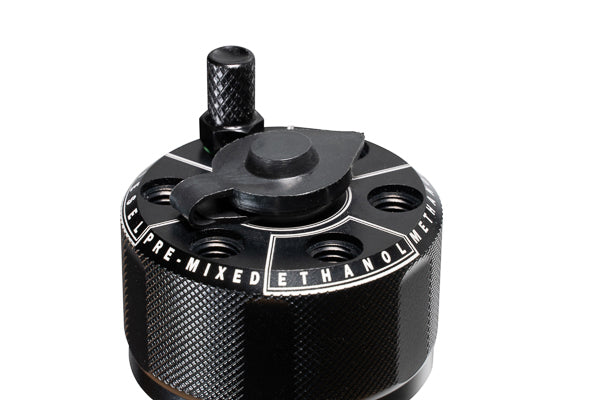

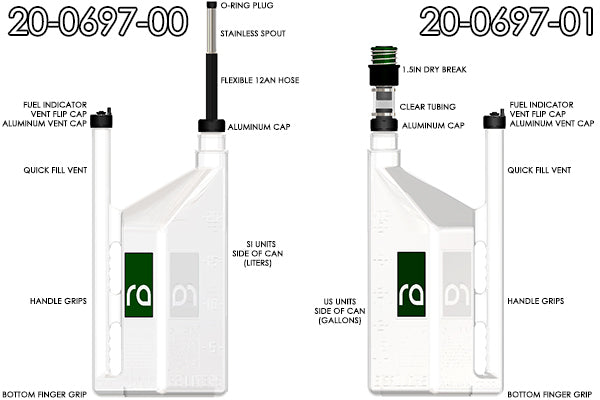

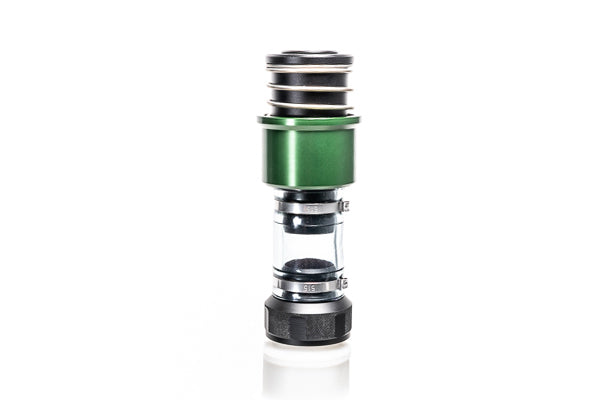

This version includes a Radium 1.5" dry break probe and a clear short tube for monitoring the fill. Its PRV (pressure relief valve) lets the sealed side of the can be vented when exposed to warm temperatures – simply push down on the centre stainless steel valve. The knurled aluminium pour and vent caps unscrew for quick filling, and the vent cap features six fuel-type indicators (UNLEADED, LEADED, METHANOL, ETHANOL, PRE-MIXED, DIESEL).

Key Features

• 1.5" Dry Break Probe: Mates with compatible 1.5" dry break receptacles
• Pressure Relief Valve: Push-to-vent stainless steel PRV
• High Flow Vent: 1.675" (43mm) OD vent tube prevents vacuum 'gurgle'
• Fast Fill: Up to 97 L/min (25.75 gpm) with the vent cap removed
• Fuel-Type Indicator: Six-position indicator on the vent cap
• All Fuel Types: Moulded polymer safe for petrol, diesel, AV gas, methanol, ethanol, E15 and E85

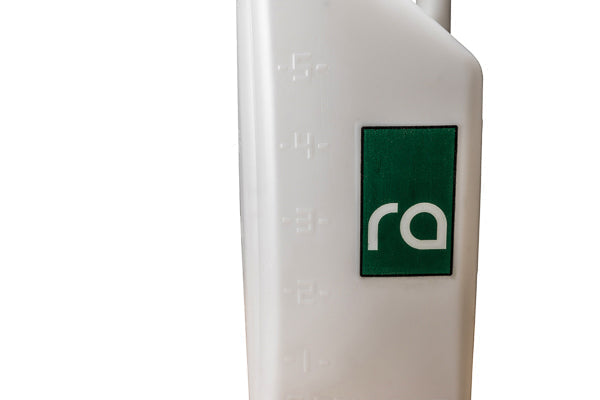

• Graduated: Moulded US gallon and litre graduations

What's Included

• Quick fill dump can with Radium 1.5" dry break probe and PRV, clear short tube, knurled aluminium pour and vent caps, and plastic vent flip cap

Optional Parts

• Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – large tank vent recommended for maximum fill flow
• Radium Dump Can Cap Assembly - Dry Break Filler (20-1687-01) – replacement dry break cap assembly
• Radium Quick Fill Dump Can Caps (20-0997) – filler cap for storing or transporting multiple cans

Important Notes

• The plastic pour spout can be cut to suit 2.5" and 3" dry breaks
• For maximum flow efficiency, the fuel tank or fuel cell should have a large vent (Radium 20-0535)
• For a slower, more controlled fill, unlatch the plastic flip cap. Removing the entire vent cap gives a quicker fill – use this method with caution
• Radium's published volume for this dump can is 19 litres (5 US gallons)

Vehicle Fitment

• Universal – see Application

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
