Radium Dump Can Cap Assembly - Dry Break Filler

Radium Dump Can Cap Assembly - Dry Break Filler

Application: Radium Quick Fill Dump Cans (standard filler cans converted to dry break)
Part Type: Dump can cap assembly – 1.5in dry break with PRV
Part Number: 20-1687-01

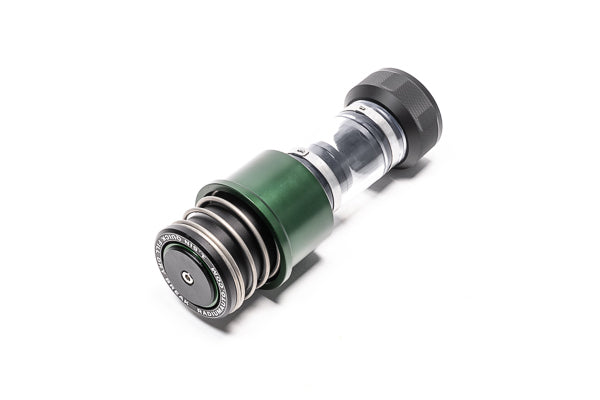

The Radium Dump Can Cap Assembly (Dry Break, PRV) is used to convert a Radium standard filler dump can to a dry break for fast, sealed pit-lane refuelling.

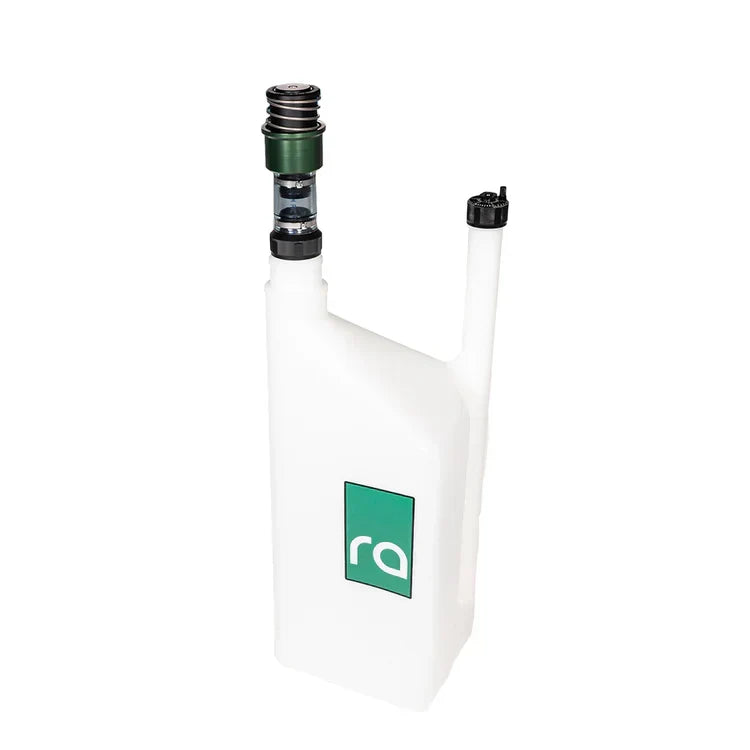

It is the dry break arrangement used on Radium's 20-1697-01 Quick Fill Dump Can: a 1.5in dry break probe with a clear short tube to monitor filling, plus a pressure relief valve (PRV) that lets the sealed side vent when the fuel is warm.

Key Features

• Dry Break Conversion: Converts a standard filler Radium dump can to a 1.5in dry break
• Pressure Relief Valve: Vents the sealed side when warm
• Fill Monitoring: Clear short tube to monitor filling
• Fast Fill: Radium measured 19.02 gpm (vent cap on, flip cap open) and 25.75 gpm (vent cap off) with its dry break dump can

What's Included

• Dump can cap assembly, dry break with PRV (dump can not included)

Optional Parts

• Radium Quick Fill Dump Can, 6Gal, Standard Filler (20-0697-00) – Radium quick fill dump can to convert
• Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – large high-flow vent recommended on the fuel tank/cell for maximum dry break flow

Important Notes

• Cap assembly only – dump can sold separately
• For maximum flow, the fuel tank or fuel cell should have a large vent (Radium 20-0535)
• The plastic pour spout on the dump can may be cut to suit 2.5in and 3in dry breaks

Vehicle Fitment

• Radium Quick Fill Dump Cans with standard filler (conversion to dry break)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
