Radium Engineering PCV Fluid Lock Catch Can Kit for Ford Mustang GT 2018+

Radium PCV Fluid Lock Catch Can Kit, Ford Mustang GT (2018+)

Application: Ford Mustang GT 5.0 Coyote – S550 (2018-2023) and S650 (2024+)
Part Type: PCV Fluid Lock oil catch can kit
Part Number: 20-1267-FL

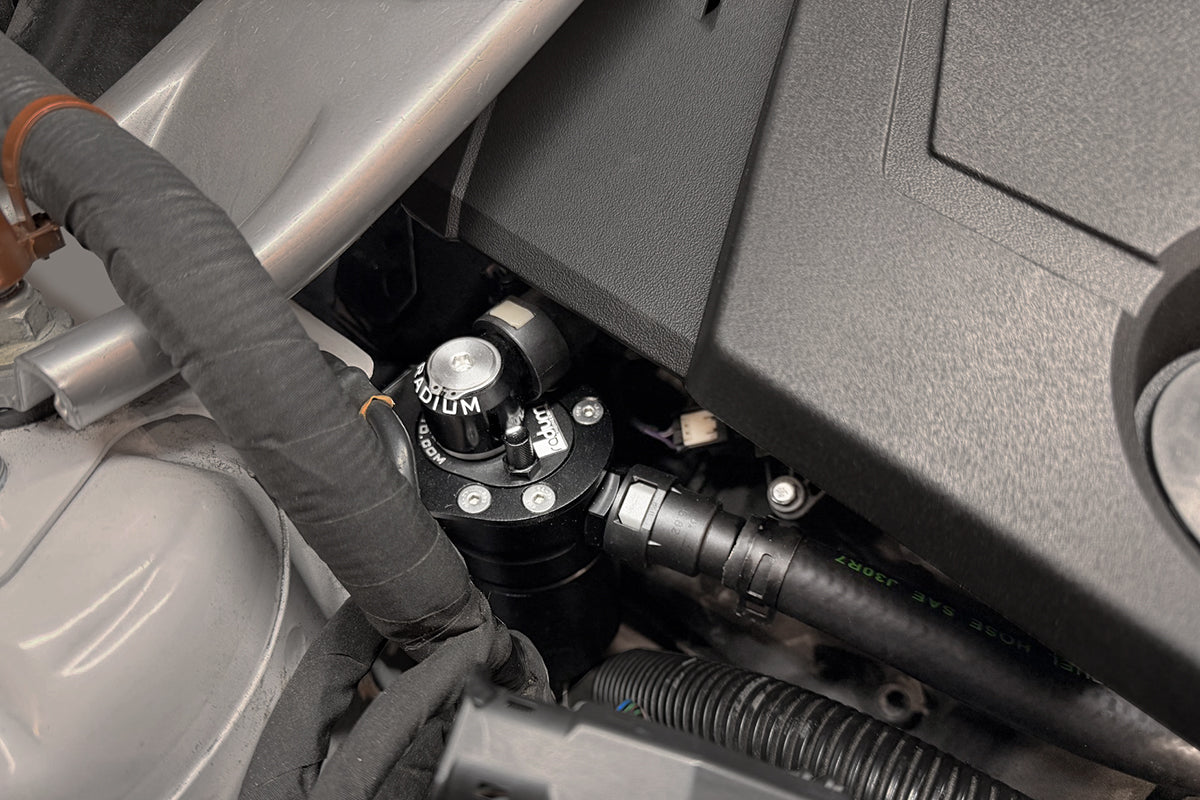

The Radium 20-1267-FL PCV Catch Can Kit suits the 2018-2023 S550 and 2024+ S650 Mustang GT. It mounts on the front RH strut tower and installs inline between the PCV valve and the intake manifold, using 16mm SAE quick connect fittings and OEM-style spring clamps. The catch can separates oil and water condensation from the crankcase gases before they are drawn into the intake, preventing oil build-up in the intake, intercooler system, throttle body and intake manifold. This effectively raises octane, can improve performance through cleaner inlet air and can lower hydrocarbon emissions, while the closed system keeps oil vapour out of the cabin.

Radium's Fluid Lock design, introduced in 2022, adds a patented mechanism that stops the reservoir overfilling and traps the collected fluid until the can is emptied, so contaminants can't spill into the intake if servicing is missed.

Key Features

• Fluid Lock: Patented Fluid Lock system stops overfilling and traps collected fluid
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required
• Quick Connect Plumbing: 16mm SAE quick connect fittings and hose ends

What's Included

• Anodised oil catch can with integrated condenser and dipstick
• Anodised laser-cut Mustang specific mounting bracket
• 16mm SAE quick connect fittings
• 16mm SAE quick connect hose ends
• Rubber 5/8in (10AN) PCV/fuel hose
• Black OEM-style 5/8in spring clamps
• Stainless steel mounting hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• There is no fixed emptying interval – start checking the integrated dipstick after 3-4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve not closing under heavy load
• Mounts on the front RH strut tower – Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with iilumolab before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Mustang GT S550 (2018-2023) – 5.0 Coyote
• Ford Mustang GT S650 (2024+) – 5.0 Coyote

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
