Radium PCV Fluid Lock Catch Can Kit, Ford F-150 / Raptor EcoBoost V6 (2015-2020)

Radium PCV Fluid Lock Catch Can Kit, Ford F-150 / Raptor EcoBoost V6 (2015-2020)

Application: Ford F-150 and Raptor 3.5L EcoBoost V6 (2015-2020)
Part Type: PCV Fluid Lock oil catch can kit
Part Number: 20-0481-FL

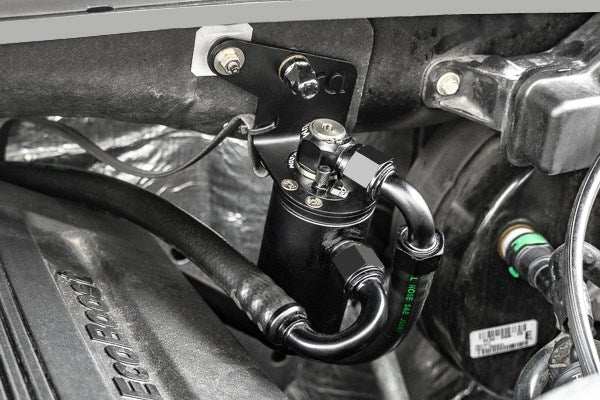

The Radium 20-0481-FL PCV Catch Can Kit suits the 2015-2020 Ford F-150 and Raptor with the 3.5L EcoBoost V6. The catch can separates oil and water condensation from the crankcase gases before they are drawn into the intake, preventing oil build-up in the intake, intercooler system, throttle body and intake manifold. This effectively raises octane, can improve performance through cleaner inlet air and can lower hydrocarbon emissions, while the closed system keeps oil vapour out of the cabin.

Radium's Fluid Lock design, introduced in 2022, adds a patented mechanism that stops the reservoir overfilling and traps the collected fluid until the can is emptied, so contaminants can't spill into the intake if servicing is missed. The kit includes everything needed for a complete installation, with an F-150 specific bracket and no drilling required.

Key Features

• Fluid Lock: Patented Fluid Lock system stops overfilling and traps collected fluid
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required
• F-150 Specific Bracket: Anodised aluminium bracket for a direct fit

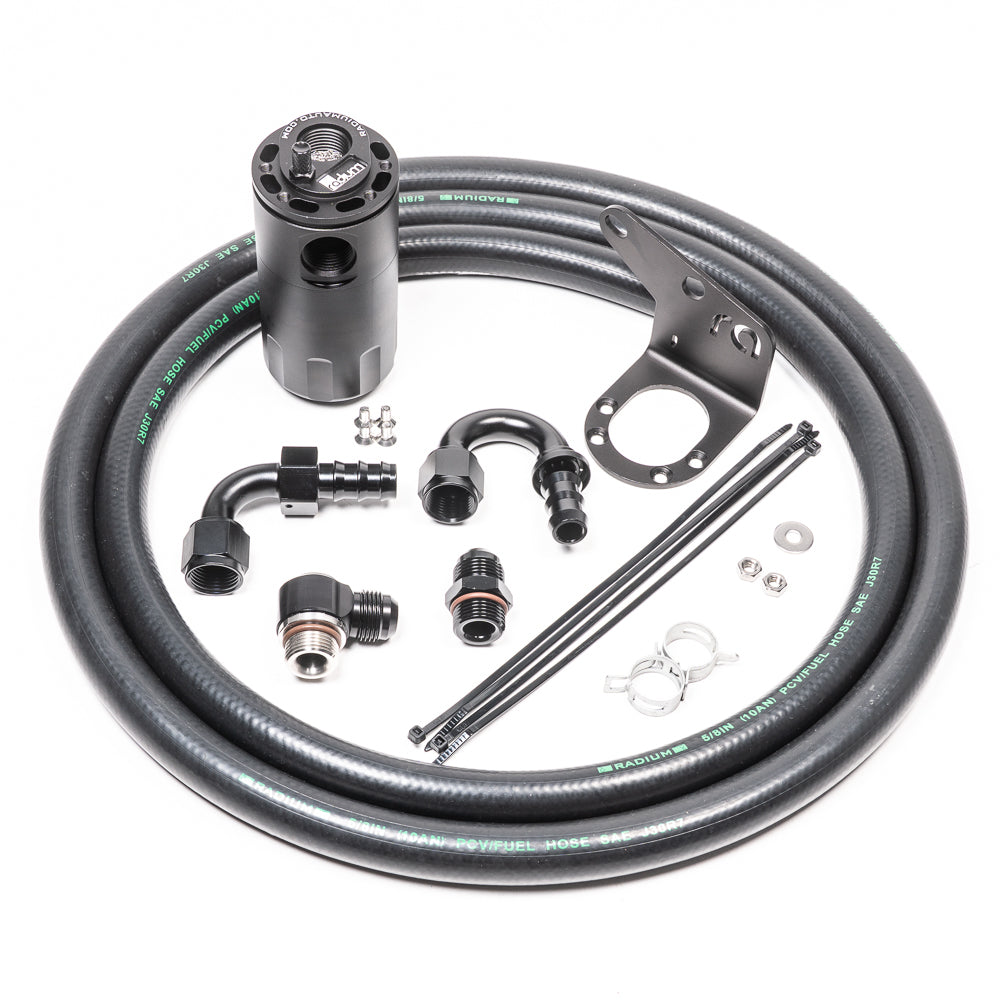

What's Included

• Fluid Lock catch can with integrated dipstick
• Anodised aluminium F-150 specific mounting bracket
• Anodised aluminium AN adapter fittings and hose ends
• 5/8in Radium PCV hose
• Stainless steel mounting hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• Radium lists the 3.5L EcoBoost V6 only – the 2.7L EcoBoost is not listed
• There is no fixed emptying interval – start checking the integrated dipstick after 3-4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve not closing under heavy load
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with Coore before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford F-150 (2015-2020) – 3.5L EcoBoost V6
• Ford F-150 Raptor (2015-2020) – 3.5L EcoBoost V6

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
