Radium Fuel Surge Tank Install Kit - Mitsubishi Evo 7-9

Radium Fuel Surge Tank Install Kit - Mitsubishi Evo 7-9

Application: Mitsubishi Lancer Evolution VIII / IX
Part Type: Fuel surge tank (FST) install kit
Part Number: 20-0120

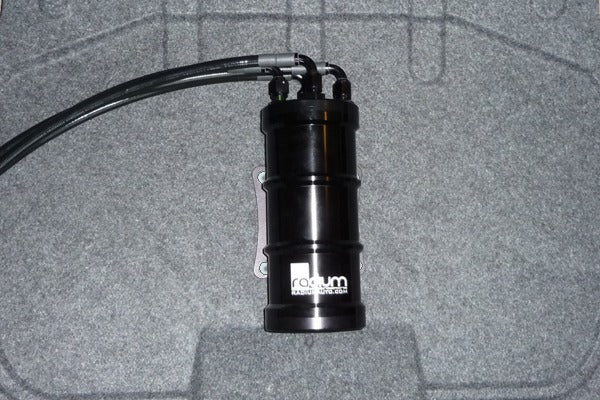

This Radium install kit fits a Radium Fuel Surge Tank (FST) with a single 39mm fuel pump to the Mitsubishi Lancer Evolution VIII and IX, eliminating fuel starvation in all driving conditions. The FST mounts in the boot, centred behind the rear seat in a collision-safe area, leaving most of the boot usable.

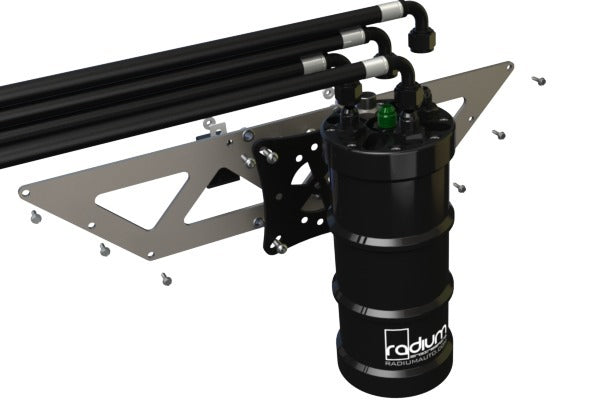

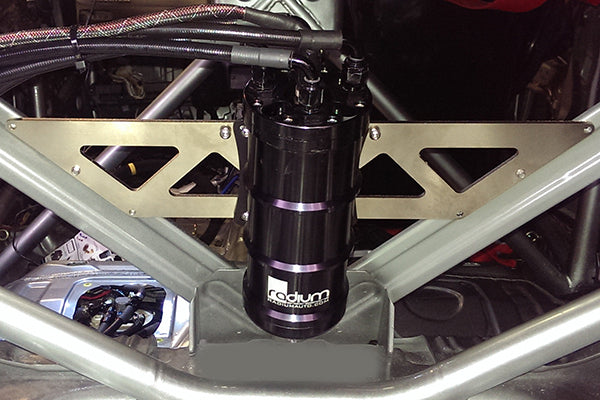

The aluminium bracket mounts to the V-brace in front of the rear seat carpet cover, and the FST sits on a black anodised bracket isolated through the OEM carpet cover to reduce pump noise and vibration. The wiring uses flying leads with Raychem solderless butt splices and a weatherproof fuse and relay, so assembly takes under 30 minutes with no soldering.

Key Features

• Collision-Safe Mounting: FST centred behind the rear seat, leaving most of the boot usable
• Noise & Vibration Isolation: Bracket isolated through the OEM carpet cover
• PTFE Hoses: Pre-assembled -6AN PTFE hoses, compatible with ethanol, methanol and E85
• Barricade Hose: Non-permeating hose included
• Solder-Free Wiring: Harness with weatherproof relay and fuse and solderless heat-shrink connectors

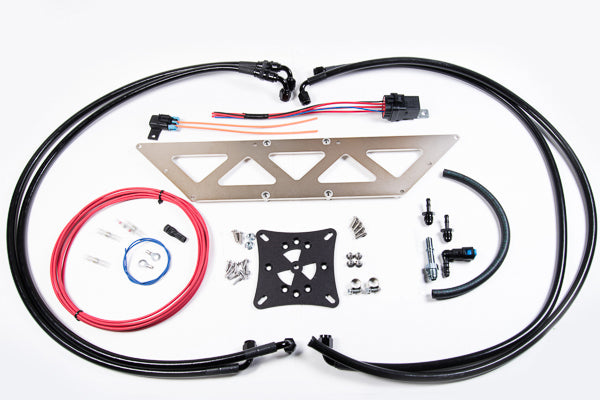

What's Included

• Pre-assembled -6AN PTFE hoses
• Aluminium mounting brackets
• AN and OEM-style adapter fittings
• Stainless steel hardware
• Non-permeating barricade hose
• Wiring harness with relay and fuse
• Solderless heat-shrink connectors

Optional Parts

• Radium Standard Single Pump FST Fuel Surge Tank (20-0960) – the single-pump surge tank this kit installs (required, sold separately)

Important Notes

• Radium lists this kit for the Evolution VIII and IX only
• The fuel surge tank and surge tank fuel pump are sold separately
• Not designed for the Radium MPFST
• A slightly higher static fuel pressure is normal with a high-flow pump due to the OEM return port restriction – the OEM venturi jet pump in that port can be modified to improve return flow (covered in the instructions)
• A drop-in main tank pump upgrade may be required – as an estimate, the main tank pump should flow roughly 40–50% of the surge tank pump's flow
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution VIII
• Mitsubishi Lancer Evolution IX

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
