Radium Engineering Standard Single Pump FST Fuel Surge Tank

Radium Standard Single Pump FST Fuel Surge Tank

Application: Universal
Part Type: Single pump fuel surge tank (FST)
Part Number: 20-0960

A fuel surge tank keeps the engine supplied on vehicles with poor fuel tank baffling, and can upgrade a standard fuel system without modifying the stock tank or pump – ideal for high-demand builds such as forced induction. The fuel held in the surge tank buffers the internal pump, while the main tank pump and the regulator return keep it full and excess fuel overflows back to the main tank.

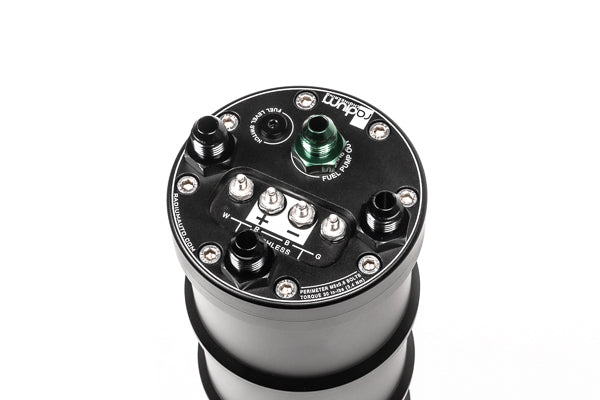

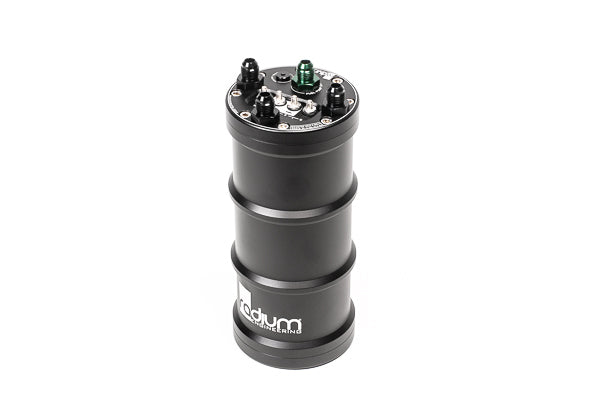

The Radium single pump FST uses a 1.5 litre extruded, anodised aluminium canister with removable O-ring sealed billet caps. The internal pump feeds the rail through a green 6AN outlet, and three interchangeable black 6AN ORB ports handle the lift pump inlet, overflow to the main tank and regulator return, with an internal deflector to reduce foaming and aeration.

Key Features

• 1.5 Litre Capacity: Extruded anodised aluminium canister
• Removable Caps: O-ring sealed billet aluminium caps
• 6AN Plumbing: All top fittings 6AN ORB, three interchangeable ports
• Anti-Aeration: Internal deflector reduces foaming and aeration
• High-Current Electrical: Stainless anti-rotation studs, anodised aluminium acorn nuts, ETFE in-tank wiring
• Level Switch Port: 1/8in NPT port for the optional fuel level switch
• Flexible Mounting: Can be mounted vertical through to horizontal

What's Included

• 1.5 L extruded anodised aluminium canister
• Removable O-ring sealed billet aluminium caps
• 6AN ORB fittings
• Stainless hardware
• Stainless clamps for 39–45mm pumps
• Large and small ID pump connections
• Plug-and-play pump wiring
• Pre-pump sock filters (for listed pumps)
• Anti-rotation electrical terminals

Optional Parts

• Radium Fuel Surge Tank Mounting Bracket, Universal (Side / Floor Mount) (13-0054) – mounting bracket for the FST
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – relay kit recommended to drive the internal pump
• Radium Fuel Level Switch, 1/8" NPT (20-0461) – fits the 1/8in NPT level switch port
• Radium Fuel Level Diagnostic Indicator (20-0508) – LED indicator for the fuel level switch

Important Notes

• Fuel pump sold separately
• An overflow return to the main tank is required on all installations – tanks without a return port need the hanger top or filler neck modified
• The FST pump outlet is 6AN male only
• Mount away from collision-prone areas, heat sources and moving suspension parts
• Verified pumps: Walbro F90000267, F90000274, F90000285, F90000295, GSS341, GSS342; AEM 50-1000, 50-1200, 50-1220; Bosch BR540; DeatschWerks DW400, DW440 (brushless), DW810 (brushless); Protec 11928 (brushless); Fuelab 49614 (brushless); Ti Automotive E5LM (brushless)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application
