Radium Fuel Rails - GM LS7 Engine

Radium Fuel Rails - GM LS7 Engine

Application: GM LS7 – Chevrolet Corvette Z06, Corvette 427, Camaro Z28 and Falcon F7
Part Type: Billet aluminium upgrade fuel rails (pair)
Part Number: 20-0361

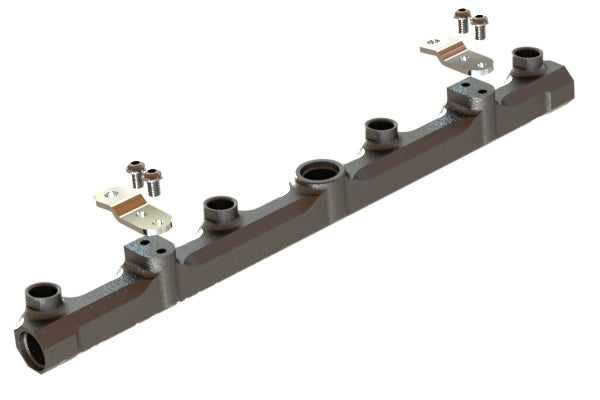

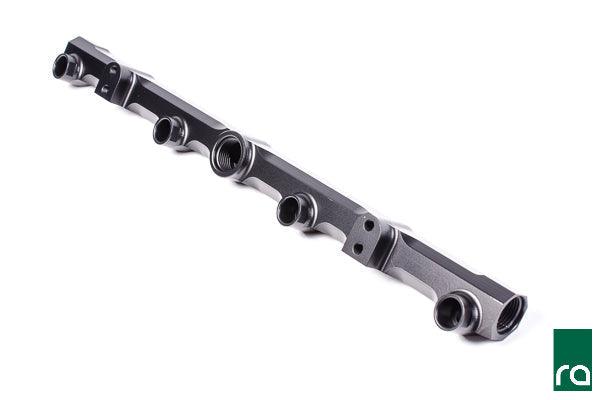

The Radium Fuel Rails for the GM LS7 are high-flow replacements for the factory rails, with a large internal bore to support high power requirements. They are CNC-machined from extruded 6063 aluminium, black anodised and laser etched, and mount with polished stainless steel feet that accept the factory hardware.

All end ports and the lower centre ports are tapped for 8AN ORB (3/4"-16) fittings, so the rails can be plumbed to suit the build, and the lower centre ports can carry optional adapters. As the LS7 intake manifold is wider than other LS manifolds, Radium recommends pairing these rails with its LS plumbing kit, an inline adapter and a gauge.

Key Features

• Large Internal Bore: Supports high power requirements
• Billet Construction: CNC-machined extruded 6063 aluminium
• Finish: Black anodised and laser etched
• 8AN ORB Ports: All end ports and lower centre ports tapped 8AN ORB (3/4"-16)
• Factory Mounting: Polished stainless steel mount feet accept the factory hardware
• Upgrade Rail: Uses OEM or OEM-equivalent injectors

What's Included

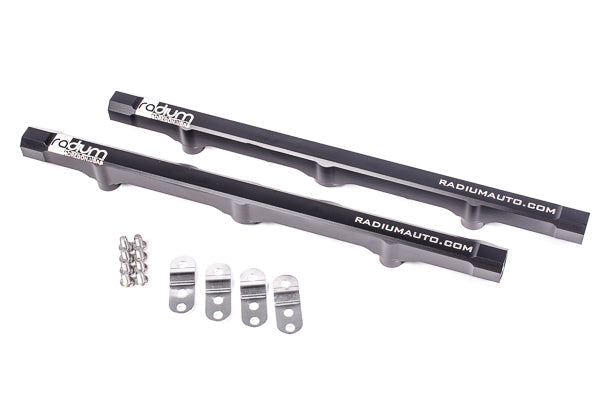

• Anodised billet aluminium fuel rails (x2)
• Stainless steel mount feet (x4)
• Stainless steel mounting hardware

Optional Parts

• Radium Fuel Rail Plumbing Kit, LS1 / LS2 / LS3 / LS6 / L76 / L99 (20-0232-PK) – Plug-and-play plumbing that reuses the OEM fuel feed line
• Radium 14-0148-06 Inline 6AN Male to 6AN Female Fitting with 1/8" NPT Port (14-0148-06) – Inline adapter for mounting a gauge in the feed line
• Radium Fuel Pressure Gauge 0-100psi (20-0029) – Inline fuel pressure gauge

Important Notes

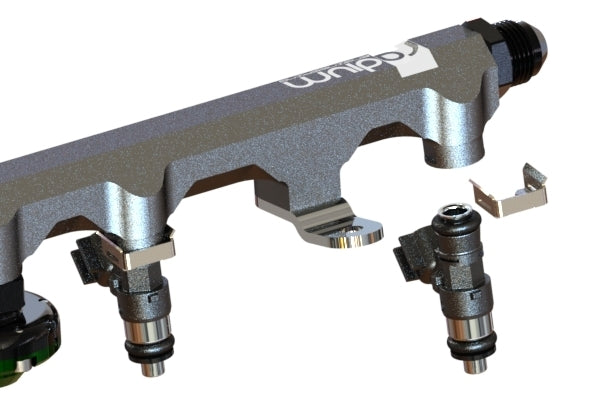

• This is an upgrade rail, not a top-feed conversion rail – OEM or OEM-equivalent injectors must be used (same height and upper/lower O-ring diameters and styles)
• Radium does not make injector recommendations – consult your tuner for flow rate and the injector manufacturer for correct dimensions
• Fittings are not included – select 8AN ORB fittings to suit the application and allow clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Chevrolet Corvette Z06 LS7 (2006-2013)
• Chevrolet Camaro Z28 LS7 (2014-2015)
• Chevrolet Corvette 427 LS7 (2013)
• Falcon F7 LS7 (2012+)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
