Radium Engineering Fuel Pump Hanger for Subaru WRX, STI 94-07/Forester 97-08/Liberty 1989-1998

Radium Fuel Pump Hanger - Subaru WRX, STI 94-07/Forester 97-08/Liberty 89-98

Application: Subaru Impreza/WRX/STI (1993-2007), Forester (1997-2008), Legacy/Liberty (1989-1999), Outback (1994-1999), Saab 9-2X (2005-2006)
Part Type: Billet aluminium fuel pump hanger – pumps not included
Part Number: 20-0340-00, 20-0342-00

The Radium Fuel Pump Hanger is a billet aluminium replacement for the factory in-tank pump assembly on early Subarus and the Saab 9-2X. It supports one or two aftermarket high-flow fuel pumps, which merge into a single 8AN ORB outlet, and mounts in the factory tank using the OEM gasket and hardware.

The OEM fuel level sender and temperature sensors are retained, securing to the hanger's mounting bracket. A collector box with integrated check valve and a venturi jet pump with an integrated pressure relief valve sized for high-flow pumps keep the pumps supplied with fuel.

Key Features

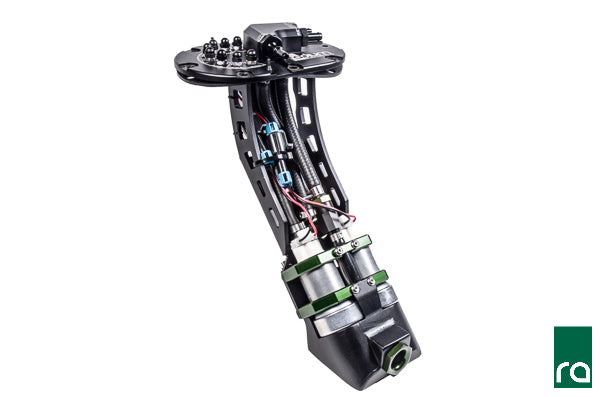

• Single or Dual Pumps: Merge into a single 8AN ORB outlet

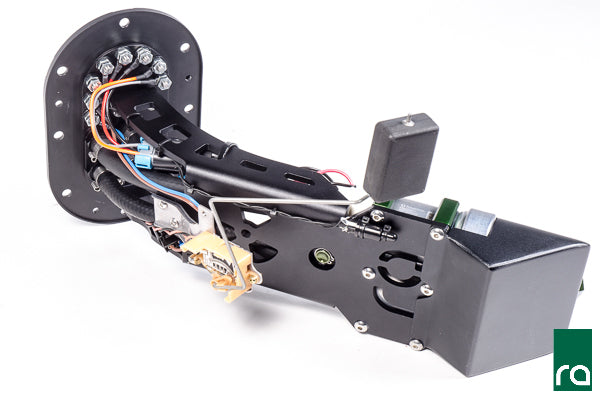

• OEM Sender Retained: Factory fuel level sender and temperature sensors reused

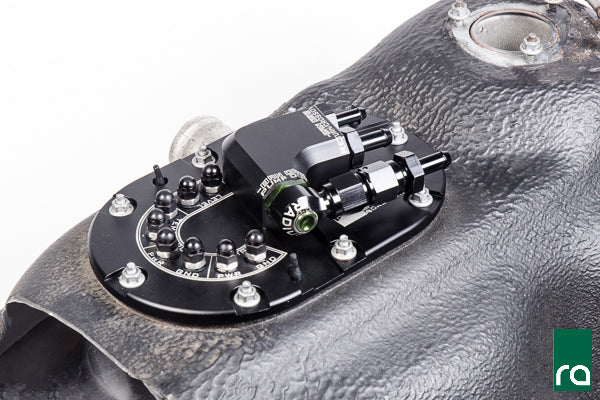

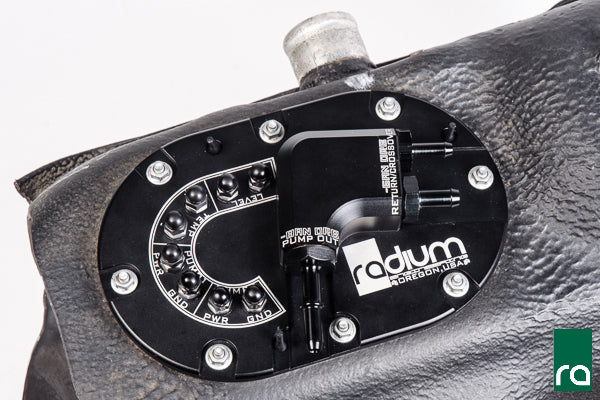

• Factory Mounting: Uses the OEM gasket and hardware
• Fuel Collection: Anodised aluminium collector box with integrated check valve
• PRV Jet Pump: Venturi jet pump with integrated pressure relief valve sized for high-flow pumps

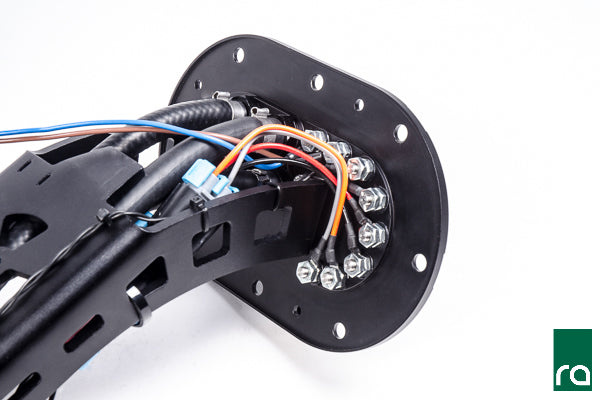

• Quality Wiring: Anti-rotation stainless terminals and ETFE-insulated in-tank wiring

Available Configurations

• 20-0340-00: Suits Walbro GSS342, AEM 50-1200, AEM 50-1230 and AEM 50-1235

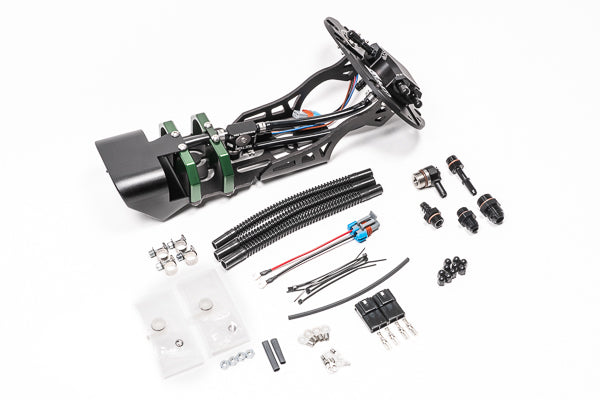

• 20-0342-00: Suits Walbro F90000267, F90000274, F90000285 and F90000295

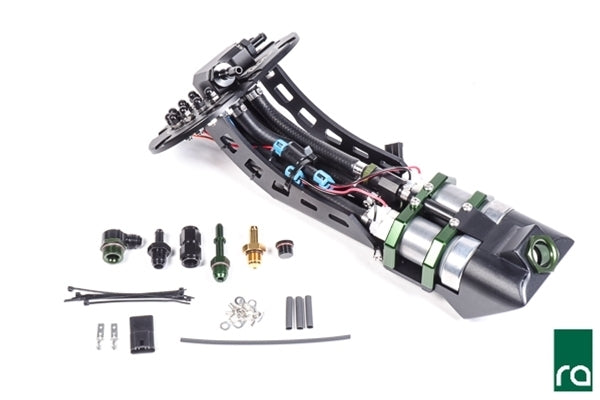

What's Included

• Hanger assembly with collector box and integrated check valve
• Venturi jet pump
• OEM hose adapter fittings including SAE quick-disconnect feed fitting
• SAE quick-disconnect return fitting for newer models
• 6AN male fittings for aftermarket hoses
• Stainless steel electrical studs and terminals
• Non-conductive acorn nuts
• ETFE-insulated in-tank wiring
• Stainless steel ring terminals and heat shrink
• Submersible rubber fuel hose
• Stainless steel hardware and clamps

Optional Parts

• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – Recommended heavier-gauge wiring for high-flow pumps
• Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb (20-1533) – Check valve for AEM 50-1230 / 50-1235 pumps (20-0340-00)
• Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) – Check valve for Walbro F90000295 pumps (20-0342-00)

Important Notes

• Fuel pumps are not included
• Not compatible with the JDM WRX STI Spec C
• AEM 50-1230 / 50-1235 and Walbro F90000295 pumps have no internal check valve – a separate check valve kit is recommended
• Upgrading to heavier-gauge pump wiring is recommended for high-flow pumps; single-pump setups may reuse the OEM controller
• Other similar pumps may fit but are not verified by Radium
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Subaru Impreza, WRX and STI (1993-2007) – excludes JDM WRX STI Spec C
• Subaru Forester (1997-2008)
• Subaru Legacy / Liberty (1989-1999)
• Subaru Outback (1994-1999)
• Saab 9-2X (2005-2006)
