Radium Fuel Pressure Test Kit

Radium Fuel Pressure Test Kit

Application: Universal – any fuel rail or regulator with a 1/8" NPT female port
Part Type: Remote gauge mount / fuel pressure test kit
Part Number: 20-0392

Mounting a fuel pressure gauge or pressure transducer directly to the fuel rail isn't always possible, or the gauge may not be easy to see in that location. The Radium Fuel Pressure Test Kit contains everything needed to remote-mount a gauge or transducer from any fuel rail or pressure regulator with a 1/8" NPT female port.

A Schrader valve is also included for pressure testing, bleeding air from the lines, fuel sampling, or safely relieving fuel pressure before service. The kit can be used as a one-off diagnostic tool or left on the vehicle as a permanent installation.

Key Features

• Remote Mounting: Relocate a gauge or transducer away from the rail
• Schrader Valve: Pressure testing, bleeding air, sampling or relieving pressure
• High-Pressure Hose: 406mm (16") PTFE 3AN hose
• Universal Fit: Connects to any 1/8" NPT female port
• Temporary or Permanent: Use as a test tool or leave installed

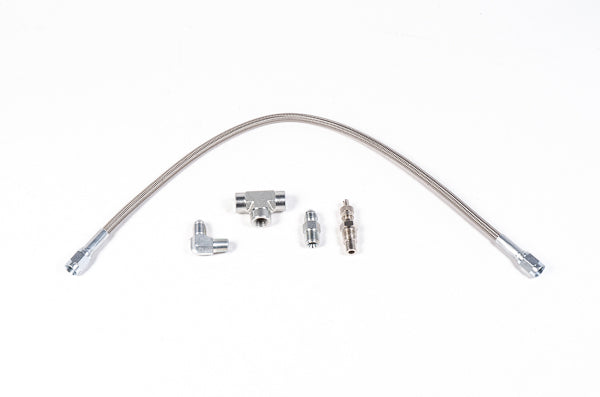

What's Included

• 406mm (16") high-pressure PTFE 3AN hose
• 1/8" NPT to 3AN male adapter, 90°
• 1/8" NPT to 3AN male adapter, straight
• 1/8" NPT female 3-way tee fitting
• 1/8" NPT Schrader valve with cap

Optional Parts

• Radium Fuel Pressure Gauge 0-100psi (20-0029) – Gauge to suit the kit
• Radium 8AN ORB to Schrader Valve Adapter (20-0440) – Schrader valve for any 8AN ORB female port

Important Notes

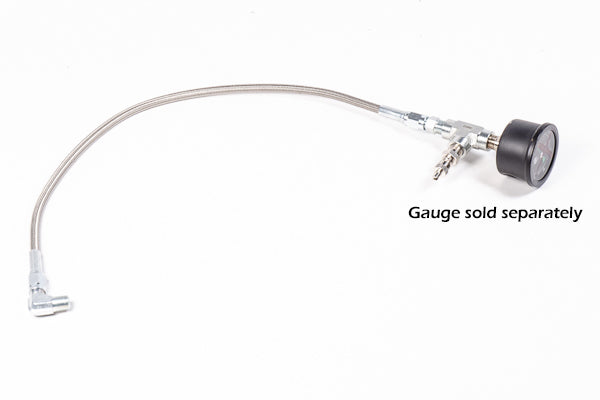

• Fuel pressure gauge or transducer not included – order separately
• Use PTFE tape or paste on all NPT threads

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
