Radium 8AN ORB to Schrader Valve Adapter

Radium 8AN ORB to Schrader Valve Adapter

Application: Universal – any 8AN ORB female port
Part Type: 8AN ORB Schrader valve adapter kit
Part Number: 20-0440

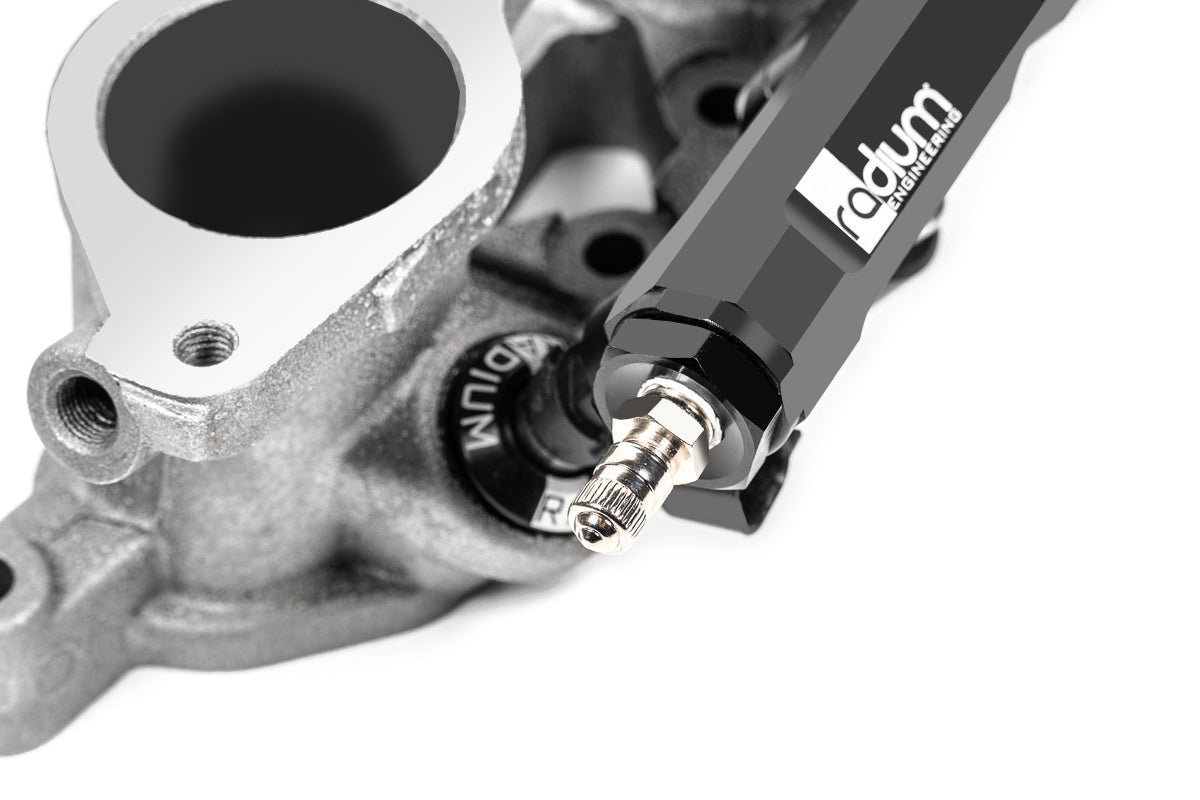

This Radium Engineering Schrader valve kit threads into any 8AN ORB female port, giving a convenient service point for pressure testing, bleeding air out of the line, fuel sampling or relieving fuel pressure before working on the system.

It can be used as a single-use tool, or left on the vehicle as a permanent component.

Key Features

• Connection: 8AN ORB male to 1/8" NPT
• Valve: 1/8" NPT Schrader valve with cap
• Uses: Pressure testing, bleeding air, fuel sampling and relieving pressure before service
• Flexible: Temporary service tool or permanent fitting

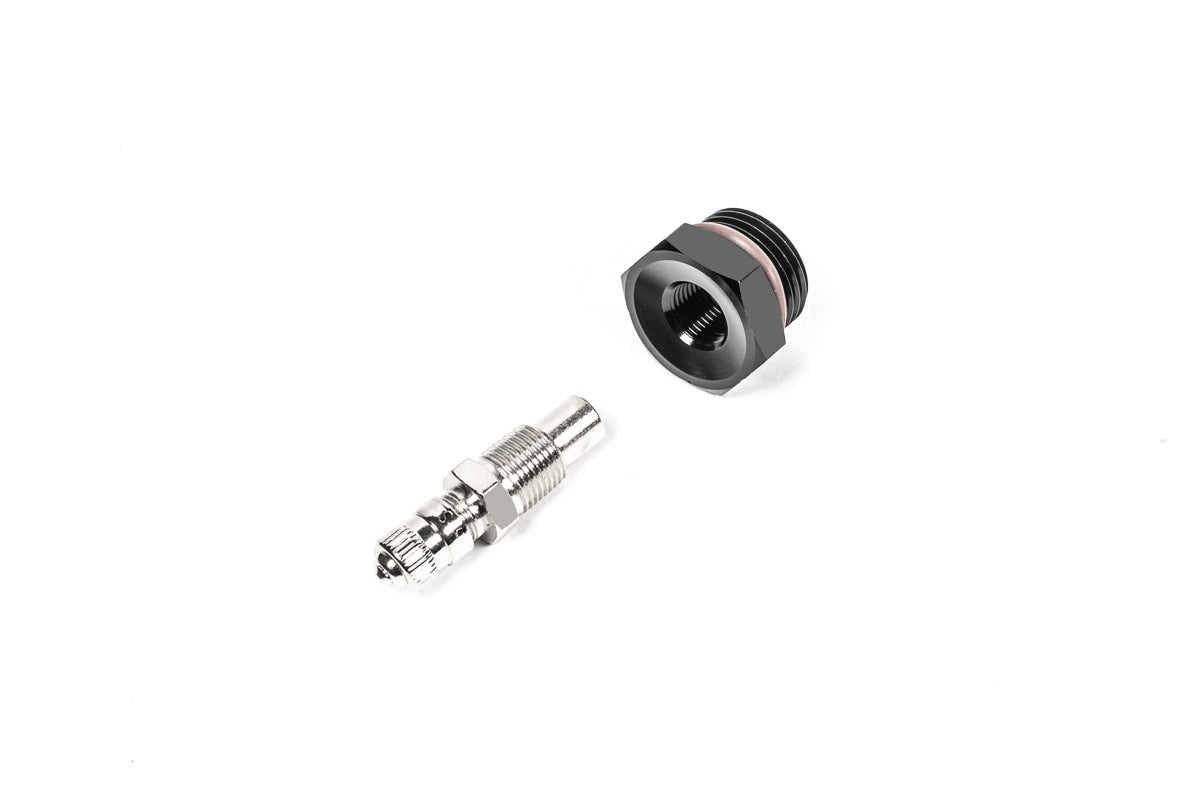

What's Included

• 8AN ORB to 1/8" NPT adapter
• 1/8" NPT Schrader valve with cap

Optional Parts

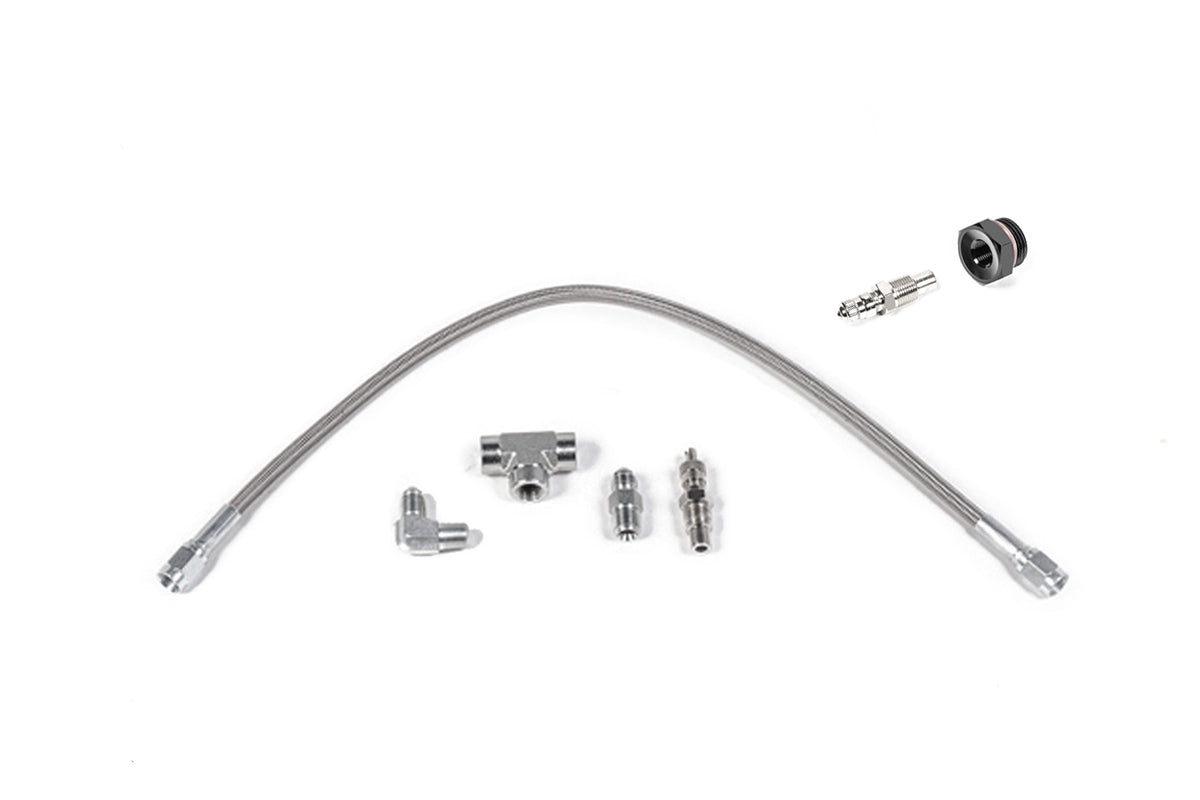

• Radium Fuel Pressure Test Kit (20-0392) – remote-mount kit for a fuel pressure gauge or transducer (also includes a Schrader valve)

Important Notes

• Apply PTFE thread paste to the Schrader valve threads and lightly oil the 8AN ORB O-ring before fitting
• Radium's instructions: hand tighten the Schrader valve into the adapter then add 1.5 to 3 turns; a 7/8in spanner fits the 8AN ORB adapter
• Pressure gauge not included
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
