Radium Fuel Hanger Feed Kit w/Microglass Filter - Nissan GT-R R35

Radium Fuel Hanger Feed Kit w/Microglass Filter - Nissan GT-R R35

Application: Nissan R35 GT-R (LHD only per Radium) with Radium 20-0572 hanger and 20-0556-02 fuel rails
Part Type: Fuel hanger feed kit with microglass filter
Part Number: 20-0851-05

The Radium Engineering Fuel Hanger Feed Kit connects the Radium R35 GT-R fuel hanger directly to Radium fuel rails, for cars where the stock R35 lines may not flow enough for high-flow pumps. New PTFE feed lines are supplied and the factory feed line is reused as the regulator return.

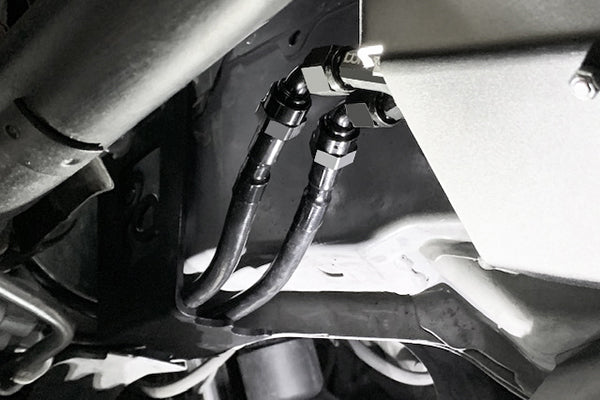

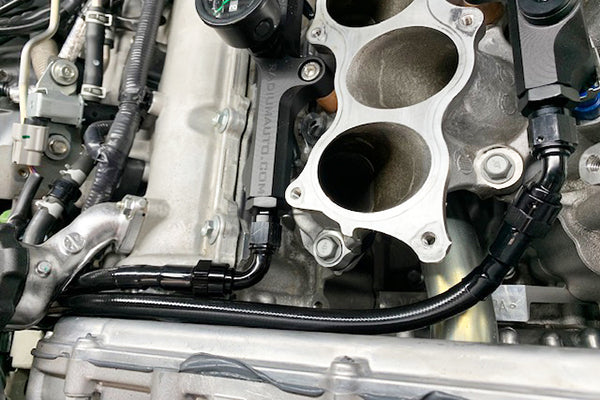

Because fitment is tight, the 10AN pump outlet is split into two 6AN feed lines that run parallel under the vehicle, secured with billet aluminium retainers and OEM hardware. The lines pass through a serviceable fuel filter with check valve, mounted with a GT-R-specific heat shield bracket, before connecting to the 6AN male fittings on the front ports of the fuel rails. This 20-0851-05 version uses the microglass filter element.

Key Features

• Direct Hanger-to-Rail Feed: PTFE feed lines from the Radium hanger to Radium fuel rails

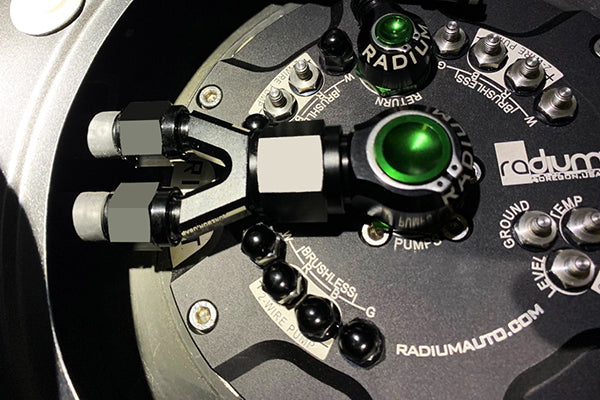

• Dual 6AN Lines: 10AN outlet split into two 6AN lines for tight fitment
• Filter with Check Valve: Check valve holds fuel pressure after the engine is shut off

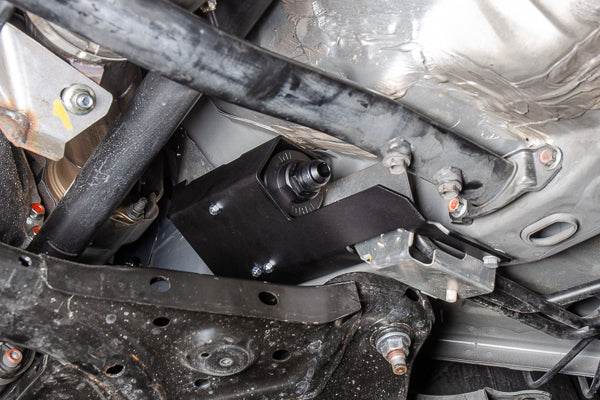

• Heat Shielded: GT-R-specific filter heat shield bracket

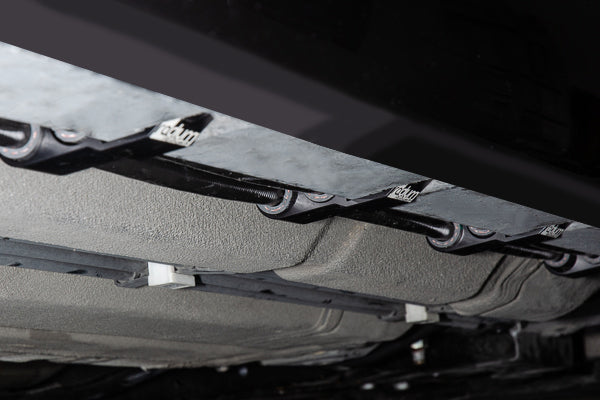

• Secure Routing: Billet aluminium line retainers use OEM hardware
• OEM Line Reused: Factory feed line becomes the regulator return

Available Configurations

• 20-0851-05: Microglass filter element (this listing)
• 20-0851-03: Stainless filter element (sold separately)

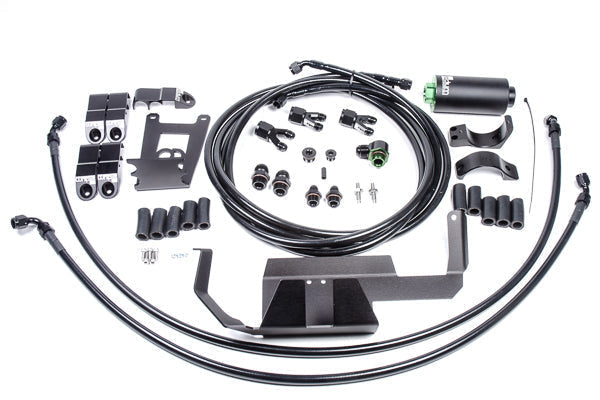

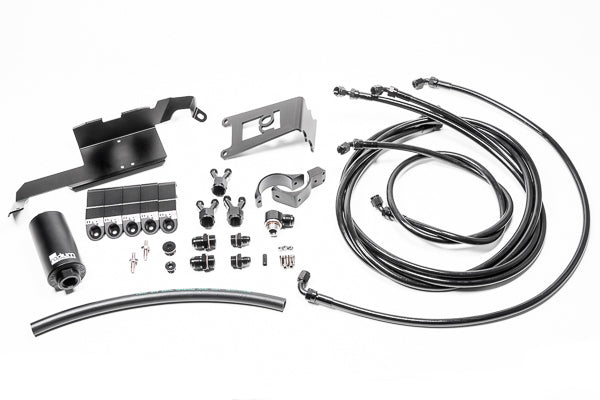

What's Included

• Fuel filter with check valve (microglass element)
• 10AN ORB to 10AN male low-profile fitting
• 10AN to 6AN Y-adapter fittings
• Fuel line retaining mounts
• R35 filter heat shield bracket
• 60mm two-piece filter clamp
• 6AN PTFE fuel hoses
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Hanger - Nissan GT-R R35 (20-0572) – Radium R35 GT-R fuel pump hanger
• Radium Fuel Rail Kit - Nissan GT-R R35 (20-0556-02) – Radium R35 GT-R fuel rails – required, not included
• Radium Engineering Fuel Hanger Feed Kit - Nissan R35 GT-R (Stainless Filter) (20-0851-03) – same feed kit with stainless filter element

Important Notes

• Radium lists this feed kit as compatible with LHD vehicles only – contact us before ordering for an Australian-delivered or JDM RHD GT-R
• Fuel rails are not included
• Required with the Radium hanger, as the factory post-pump filter is removed
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan R35 GT-R (LHD only per Radium)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
