Radium Engineering Fuel Pump Hanger for Nissan GT-R R35

Radium Fuel Pump Hanger - Nissan GT-R R35

Application: Nissan R35 GT-R
Part Type: In-tank fuel pump hanger (pumps not included)
Part Number: 20-0572

The Radium Engineering R35 GT-R Fuel Hanger is a drop-in replacement for the factory in-tank fuel pump unit, holding up to three 39mm aftermarket pumps (brushed or brushless) with no permanent vehicle modifications. The pumps feed an anodised aluminium collector box that stays full to prevent fuel starvation during aggressive driving, and the hanger is compatible with alternative fuels such as methanol, ethanol and E85.

The R35 saddle tank uses two OEM venturi jet pumps; with upgraded pumps these would restrict return flow and cause high pressure and poor regulator performance, so Radium has rerouted the venturi plumbing to keep its function without restricting the regulator return. Three integrated one-way fill valves (355 LPH each, 1065 LPH total) at the base of the collector box let fuel in but not out. High-current anti-rotation stainless studs, hermetically sealed serviceable connections, non-conductive anodised acorn nuts and ETFE-insulated in-tank wiring complete the package, and the factory temperature and fuel level sensors are reused.

Key Features

• Drop-In Replacement: Replaces the OEM in-tank pump unit
• 1-3 Pumps: Accepts up to three 39mm brushed or brushless pumps
• Fuel Starvation Protection: Collector box with three integrated one-way fill valves (1065 LPH total)
• Venturi Rerouting: Retains venturi function without restricting regulator return
• Ports: 10AN ORB outlet and 8AN ORB return, each with 6AN male adapter
• High-Current Electrics: Anti-rotation stainless studs and sealed connections
• OEM Hard-Line Compatible: Swivelling adapters and short 6AN PTFE hoses connect to OEM piping
• Fuel Compatibility: Gasoline, methanol and ethanol compliant

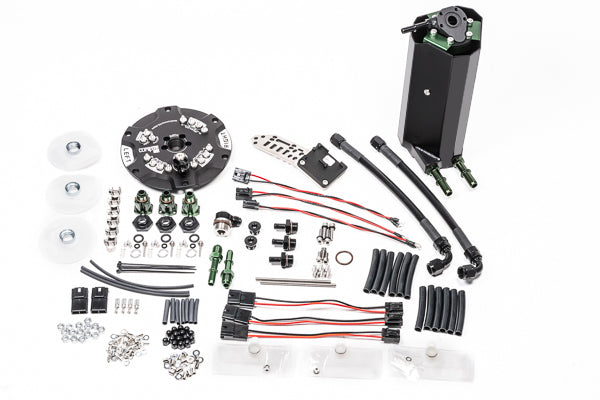

What's Included

• Partially assembled fuel hanger with everything needed to install 1-3 compatible pumps
• Sock filters for all three pump inlets
• Electrical hardware for pumps and OEM sensors
• Electrical kit for external wiring on top of the hanger
• Check valves for brushless pump installations

Optional Parts

• Radium Fuel Hanger Feed Kit w/Microglass Filter - Nissan GT-R R35 (20-0851-05) – feed kit with microglass filter – aftermarket post-pump filtration is required
• Radium Engineering Fuel Hanger Feed Kit - Nissan R35 GT-R (Stainless Filter) (20-0851-03) – feed kit with stainless filter
• Radium Fuel Rail Kit - Nissan GT-R R35 (20-0556-02) – Radium R35 GT-R fuel rails

Important Notes

• Fuel pumps are not included

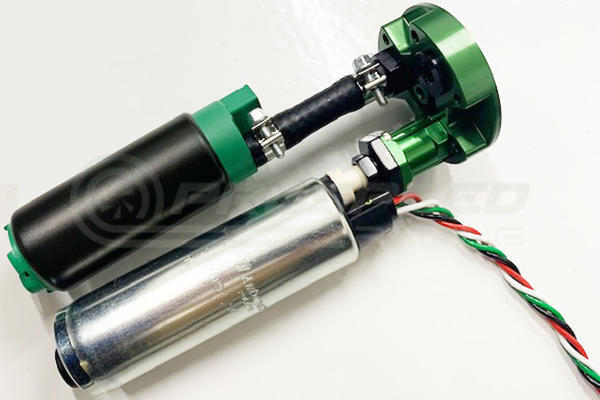

• Radium-verified pumps: AEM 50-1200, Walbro GSS342, Injector Dynamics BPC100 and Ti Automotive BKS1001 (E5LM) brushless – other similar pumps may fit but are unverified
• The factory post-pump filter is removed, so an aftermarket filter must be installed downstream (Radium 20-0851 feed kits)
• Venturi jets consume approx. 15-45 LPH depending on fuel pressure – allow for this when sizing pumps
• Each brushless pump requires its own stand-alone controller
• Two pumps may use the OEM wiring in some cases; a third pump requires custom wiring
• Radium lists its matching 20-0851 feed kits as LHD only – contact us to confirm plumbing for RHD cars
• Radium recommends reviewing the installation instructions before purchase – contact us for a copy

Vehicle Fitment

• Nissan R35 GT-R
