Radium FPRD RA Fuel Pressure Regulator Damper

Radium FPRD RA Fuel Pressure Regulator Damper

Application: Universal – EFI fuel systems (return-style, plumbed after the fuel rail)
Part Type: Adjustable fuel pressure regulator with integrated fuel pulse damper (RA-series)
Part Number: 20-1528-00, 20-1528-01

The Radium FPR-D combines a fully functional, adjustable high-performance fuel pressure regulator and a fuel pulse damper in one high-flow unit. The integrated damper smooths out the pressure pulses created by injector operation and the fuel pump, giving a steadier fuel pressure signal.

Like all RA-series regulators it features tool-less pressure adjustment and a 360° swivelling vacuum reference port, and it can be mounted in any orientation – even upside down.

Key Features

• Regulator + Damper: Adjustable EFI fuel pressure regulator with a built-in fuel pulse damper
• High Flow Ports: 10AN ORB (7/8"-14) inlet (side) and outlet (bottom) ports
• Auxiliary Port: 1/8" NPT port for a fuel pressure gauge or sensor (plug included)
• Vacuum Reference: 360° swivelling, double O-ring sealed port with interchangeable 10-32 threaded fittings
• Any Orientation: Can be mounted in any orientation, including upside down
• Fuel Compatibility: All gasoline types (unleaded, leaded, oxygenated, pre-mix) and alcohol blends (methanol, ethanol, E85)

Available Configurations

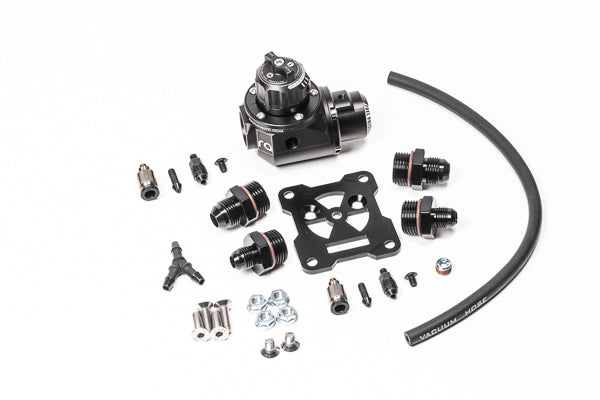

• 20-1528-00: Black

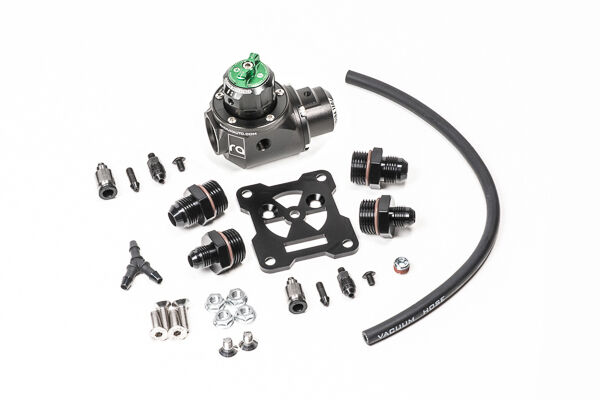

• 20-1528-01: Green

What's Included

• Main rotating assembly with damper
• Mounting bracket with M6x1mm hardware
• 5mm barbed vacuum fitting (x2)
• Vacuum plug fitting, returnless (x2)
• 1/4" push-to-connect fitting (x2)
• 3AN male vacuum fitting (x2)
• 6AN male adapter (x2)
• 8AN male adapter (x2)
• 1/8" NPT port plug
• Vacuum hose Y-adapter
• Vacuum hose, 5/32" ID

Optional Parts

• Radium Fuel Pressure Gauge 0-100psi (20-0029) – fits the 1/8" NPT port to monitor fuel pressure
• Radium Diaphragm Service Replacement FPR (18-0017) – replacement FPR diaphragm
• Radium Diaphragm Service Replacement FPD (18-0018) – replacement FPD (damper) diaphragm

Important Notes

• Single inlet and single return port – cannot be used in a dead-head system and must be plumbed after the fuel rail (use the Radium MPR for dead-head systems)
• Not for use with mechanical fuel pumps or direct-injection high-pressure pumps – their pulses will quickly rupture the damper diaphragms
• Damper works most efficiently at 2.8-7.2 bar (40-105 psi) static base pressure; outside this range the damper vacuum/boost reference line is required
• Use a medium-strength wicking thread locker on the vacuum fitting; returnless systems require the vacuum plug
• A rapid fuel pressure drop after the engine or pump is switched off is normal for aftermarket regulators – pressure resets as soon as the pump is reactivated
• Long cranking or slow pressure build-up is not caused by the regulator – it usually points to the feed line draining back to the tank (e.g. a leaking pump module, venturi jet pump or missing check valve)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – any EFI fuel system (return-style, regulator after the fuel rail)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
