Radium Engineering Roll Over Valve - 12AN ORB to 8AN Male

Radium Engineering Roll Over Valve - 12AN ORB to 8AN Male

Application: Fuel cells and fuel tanks with a 12AN ORB vent port and standard filler
Part Type: Roll over vent valve
Part Number: 20-0934

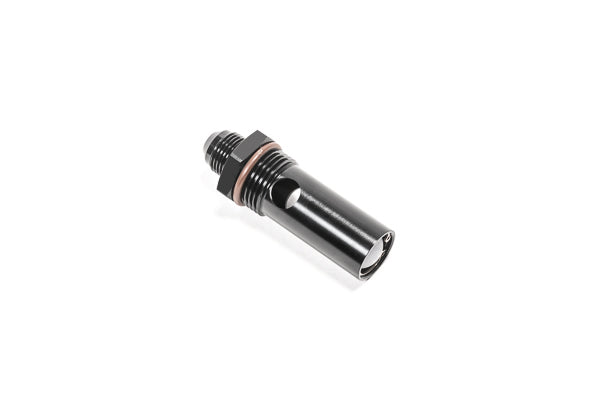

Radium vent valves provide roll-over protection for fuel cells and fuel tanks. The 20-0934 roll over valve has a 12AN ORB inlet and an 8AN male outlet, and comes standard on Radium FCST units built after August 2023.

It is a one-piece machined billet 6061 aluminium part with type II anodising, disassembles for cleaning, inspection and maintenance, and is compatible with all fuel types including methanol and E85.

Key Features

• Roll-Over Protection: Ball valve vent for fuel cells and fuel tanks
• Ports: 12AN ORB inlet to 8AN male outlet
• Construction: One-piece machined billet 6061 aluminium, type II anodised
• Serviceable: Disassembles for cleaning, inspection and maintenance
• Fuel Compatibility: All fuel types including methanol and E85

What's Included

• Roll over valve
• Ball valve
• FKM O-ring
• Stainless steel retaining ring

Optional Parts

• Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – dynamic safety vent valve for dry break fillers
• Radium DSV, 12AN ORB to 12AN Male, High Fill (20-0935) – high fill DSV for dry break fillers

Important Notes

• Cannot be used with dry break fillers – use a Radium DSV (20-0535 / 20-0935) instead
• Not suitable for early 20-014x-xx FCST units, which have only 8AN ORB vent ports
• At least one section of vent tubing should sit above the highest point of the fuel fill point
• Vent tubing is not included

Vehicle Fitment

• Universal – see Application
