Radium Engineering DSV, 12AN ORB to 12AN Male, High Fill

Radium DSV, 12AN ORB to 12AN Male, High Fill

Application: Radium FCST / FCST-X and other fuel cells or tanks with a 12AN ORB female vent port
Part Type: Dynamic safety vent valve (DSV), high fill

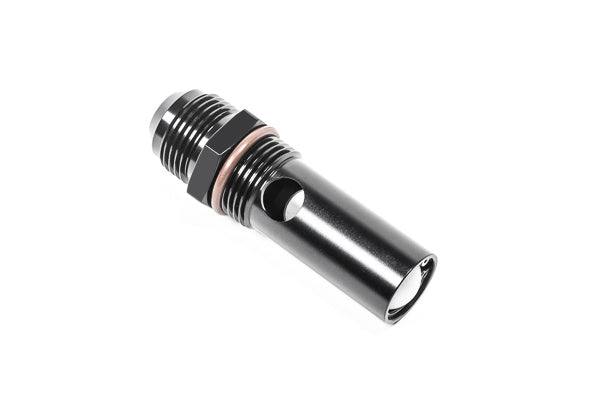

Part Number: 20-0935

Radium Engineering Dynamic Safety Valves (DSV) provide both fuel fill shut-off and roll-over protection. When the tank is full, the upper sealing ball floats up and shuts off the vent, which stops fuel travelling up and out of the vent line. With a dry break refuelling system a small amount of pressure then builds in the cell and the dump can begins to "chug" – this is by design and tells the operator the cell is full and the dry break can be released.

The 20-0935 high fill DSV is intended for fuel cells with a larger footprint, a taller filler height, or both. It shuts off venting later than the low fill 20-0535, so more fuel goes in – ideal for large cells and remote fillers mounted well above the cell.

Key Features

• Function: Fuel fill shut-off and roll-over protection
• High Fill: Later shut-off for large cells and tall / remote fillers
• Ports: 12AN ORB to 12AN male
• Construction: One-piece billet 6061 aluminium, Type II anodised
• Fuel Compatibility: All fuel types, including methanol and E85
• Serviceable: Can be disassembled for cleaning and maintenance

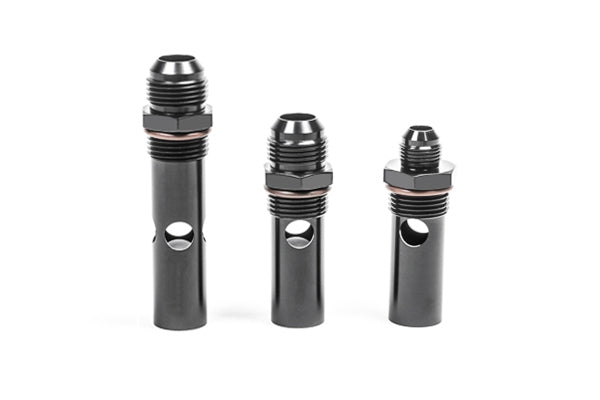

Optional Parts

• Radium DSV Valve Extension Adapter (20-1035) – raises the shut-off point further for high remote fill locations
• Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – low fill DSV for small cells with a shorter filler height

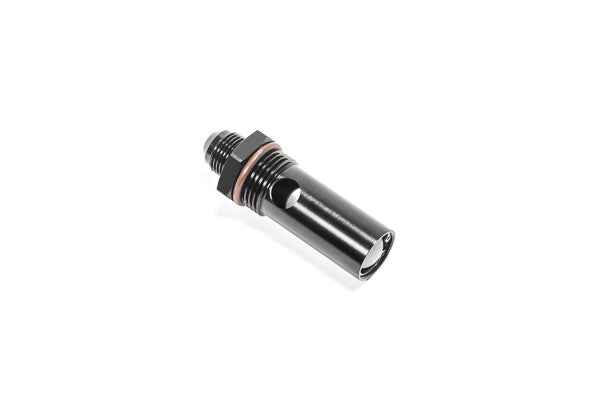

• Radium Engineering Roll Over Valve - 12AN ORB to 8AN Male (20-0934) – Radium's roll-over valve for standard (non dry break) fillers

Important Notes

• The top shut-off ball must sit lower than the highest point of the fuel fill point

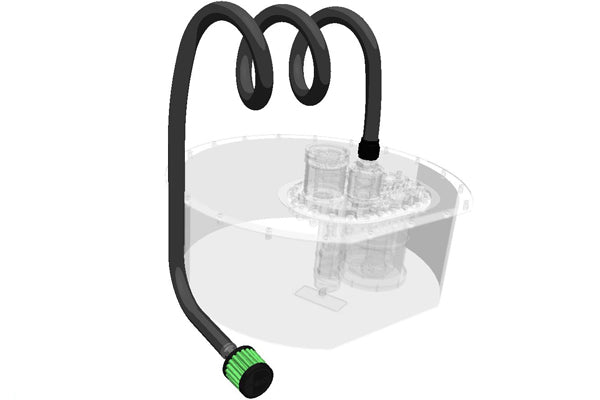

• At least one section of vent tubing (not included) must sit above the highest fill point
• Designed for use with vented dry break receivers that do not pressurise
• Not for early 20-014X-XX FCST units, which only have 8AN ORB vent ports

Vehicle Fitment

• Radium FCST and FCST-X fuel cell surge tanks
• Other fuel cells or tanks with a 12AN ORB female vent port
