Radium Engineering Dual Pump Add-On Mid 2003–2019 Corvette

Radium Engineering Dual Pump Add-On Mid 2003–2019 Corvette

Application: Chevrolet Corvette – Mid 2003–2013 with Radium 20-0980 hanger, or 2014–2019 C7 with Radium 20-1010 hanger
Part Type: Dual pump add-on for Radium Corvette fuel hangers
Part Number: 20-0937

The Radium Engineering 20-0937 Dual Pump Add-On adds a second collector and bracketry so a second fuel pump can be run with a Radium Corvette fuel hanger – either the 20-0980 (Mid 2003–2013) or the 20-1010 (2014–2019 C7), both sold separately.

Because the Corvette fuel tank opening is small, both pumps can't be installed at the same time, so Radium's system sends each pump into the tank individually. Both pump outlets merge into the hanger's single 10AN ORB outlet, and check valves permit fuel pump staging.

Key Features

• Second Pump Capability: Adds a second anodised collector and stainless bracketry for pump 2
• Merged Outlet: Both pumps feed the hanger's single 10AN ORB outlet
• Pump Staging: Check valves allow the second pump to be staged
• Fits Both Generations: Compatible with the Radium 20-0980 and 20-1010 Corvette fuel hangers

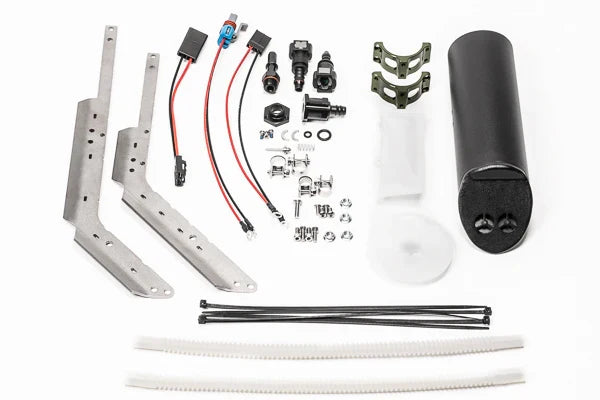

What's Included

• Second anodised collector box
• Stainless steel brackets
• Two wiring harness styles
• Installation hardware

Optional Parts

• Radium Engineering Fuel Hanger 2014–2019 C7 Corvette – Pumps Not Included (20-1010) – required hanger for 2014–2019 C7
• Radium Fuel Pump Hanger, Chevrolet Corvette (Mid 2003-2013) - Pumps Not Included (20-0980) – required hanger for Mid 2003–2013
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – suggested by Radium for wiring pump 2

Important Notes

• Requires a Radium 20-0980 or 20-1010 fuel hanger – it cannot be used on its own
• Fuel pump not included
• The second pump needs its own wiring, relay and trigger (e.g. Radium 17-0031 wiring kit and 20-0236 adjustable pressure switch)
• Radium lists Mid 2003–2013 fitment (with 20-0980) as vehicles after VIN 35114930, manufactured from November 2002
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mid 2003–2013 Chevrolet Corvette (after VIN 35114930) with Radium 20-0980 fuel hanger
• 2014–2019 Chevrolet Corvette C7 with Radium 20-1010 fuel hanger

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
