Radium Dual Fluid Lock Catch Can Kit, Nissan 350Z Z33 / Skyline V35 / Infiniti G35

Radium Dual Fluid Lock Catch Can Kit, Nissan 350Z Z33 / Skyline V35 / Infiniti G35

Application: Nissan Skyline (V35) and Infiniti G35 (V35) per Radium's compatibility list – see notes
Part Type: Dual (PCV + CCV) Fluid Lock oil catch can kit
Part Number: 20-0729-FL

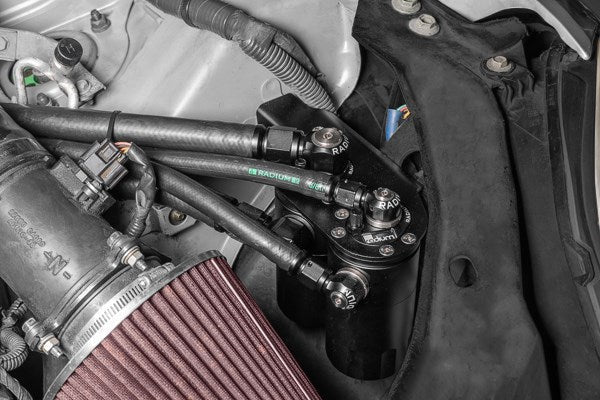

The Radium Dual Catch Can Kit combines a PCV catch can and a CCV catch can on a single Nissan-specific bracket in the front LH portion of the engine bay. The PCV can runs inline between the PCV valve and the intake, where metered vacuum at idle, cruise and deceleration would otherwise draw crankcase vapour, unspent fuel and oil sludge into the manifold. The CCV can runs inline between the crankcase vent port and the intake pipe, catching the high crankcase flow seen under high load (WOT).

Radium catch cans are pressure sealed, so no extra inline check valve is required. Radium's patented Fluid Lock system (introduced with the 2022 redesign of its 7 fl oz catch can) prevents overfilling and traps collected fluids until the can is emptied, so an unserviced can can't release contaminants back into the intake.

Key Features

• Direct Fitment: No drilling required
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed, integrated dipstick
• Capacity: 207ml (7 fl oz)
• Fluid Lock: Patented system prevents overfilling and traps collected fluid until emptied
• Dual Kit: PCV and CCV cans on one bracket
• Pressure Sealed: No extra inline check valve required

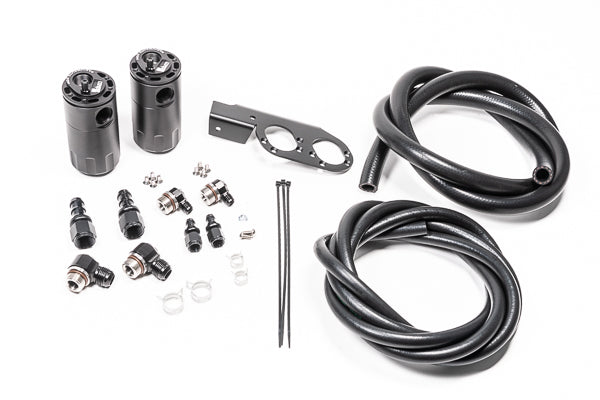

What's Included

• Baffled oil catch cans (x2)
• Nissan-specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose

Optional Parts

• Radium Engineering PCV Fluid Lock Catch Can Kit - Nissan 350Z Z33 / Skyline V35 / Infiniti G35 V35 (VQ35DE) (20-0728-FL) – PCV-only kit for VQ35DE
• Radium Catch Can Petcock Drain Kit (20-0024) – easier draining where space allows

Important Notes

• Not compatible with the OEM Nissan air filter box – an aftermarket intake is required
• Radium's compatibility list shows only the V35 Skyline and G35 ("excluding VQ35HR"), while the kit name and Radium's install instructions reference VQ35DE/HR and the 350Z – confirm fitment with Coore before ordering, especially for Z33 or VQ35HR
• Per Radium's instructions: some RHD VQ35HR engines need the hood switch addressed, and some LHD VQ35HR engines need two ground points relocated
• A throttle re-learn may be needed after installation
• No fixed emptying interval – check the integrated dipstick from 3–4 weeks of driving; PCV cans typically collect more than CCV cans. Empty by unscrewing the lower reservoir, or fit the Petcock Drain Kit where space allows
• Excessive oil collection can indicate an engine issue such as excessive blow-by, crankcase windage from overfilled oil, poor breather port placement or baffling, or a PCV valve leaking under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan Skyline (V35) – per Radium's compatibility list
• Infiniti G35 (V35) – per Radium's compatibility list
• Nissan 350Z / Fairlady Z (Z33) – covered in Radium's install instructions but not on its compatibility list; confirm with Coore

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
