Radium Dual Fluid Lock Catch Can Kit, Lotus Evora

Radium Dual Fluid Lock Catch Can Kit, Lotus Evora

Application: Lotus Evora and Evora S (supercharged), 2010-2021
Part Type: Dual Fluid Lock catch can kit
Part Number: 20-0026-FL

The Radium Engineering 20-0026-FL dual catch can kit draws oil and water condensation out of the crankcase gases that would otherwise be drawn into the intake manifold. This prevents oil build-up in the intake, intercooler, throttle body and intake manifold, effectively raising octane, and can improve engine performance through cleaner inlet air and lower hydrocarbon emissions. The closed system also keeps oil vapours out of the cabin.

This kit is designed specifically for the Lotus Evora and Evora S and includes a dedicated mounting bracket plus all the hoses, fittings and hardware for a direct-fit installation with no drilling. Both cans are Radium Fluid Lock catch cans, with a patented mechanism that stops the reservoir overfilling and traps the collected fluid until it is emptied.

Key Features

• Direct Fitment: Evora-specific bracket, hoses and fittings – no drilling required

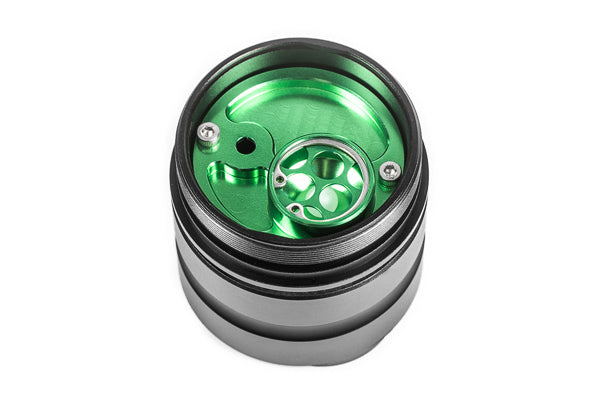

• Fluid Lock: Patented mechanism prevents overfilling and holds collected fluid until emptied
• Separation: 2-step oil separation baffling
• Dipstick: O-ring sealed dipstick for checking the level
• Capacity: 207ml (7 fl oz) per can
• Ports: 10AN ORB inlet and outlet, 4AN ORB drain port

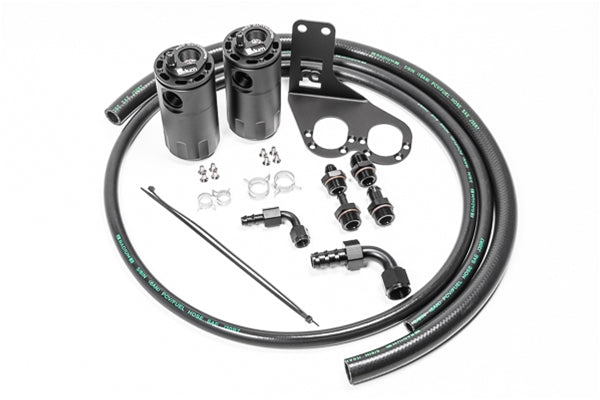

What's Included

• Fluid Lock catch cans (x2)
• Anodised aluminium mount bracket
• 3/8in PCV hose
• 5/8in PCV hose
• 10AN ORB to 6AN male fitting
• 10AN ORB to 10AN male fitting
• 10AN ORB to 3/8in barb fitting
• 10AN ORB to 5/8in barb fitting
• Pushlok hose ends (x2)
• Installation hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the cans without removing the lower reservoirs, where there is space under the cans

Important Notes

• Compatible with the Lotus Evora and Evora S (supercharged) only
• There is no set emptying interval – check the level with the integrated dipstick from 3-4 weeks of driving and repeat as needed
• Cans can be emptied by unscrewing the lower reservoir, or drained with the optional Petcock Drain Kit where there is space under the cans
• Excessive oil collection can point to an engine issue: blow-by from engine damage, crankcase windage from an over-full oil level, poorly placed or baffled breather ports, or a PCV valve leaking under load
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with Coore before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Lotus Evora (2010-2021)
• Lotus Evora S (supercharged)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
