Radium Dual Catch Can Kit, Toyota Supra MK5 A90, Fluid Lock

Radium Dual Catch Can Kit, Toyota Supra MK5 A90, Fluid Lock

Application: 2020+ Toyota GR Supra (MK5) – B58 3.0L turbo only
Part Type: Dual (PCV + CCV) Fluid Lock oil catch can kit
Part Number: 20-0751-FL

Radium recommends the Dual Catch Can Kit for the ultimate in engine protection on the MK5 Supra – it combines the 20-0749-FL PCV kit and the 20-0750-FL CCV kit. The PCV can runs inline between the ventilation valve and the intake pipe, trapping metered crankcase vapour, unspent fuel and oil sludge; the CCV can runs inline between the crankcase vent port and the intake pipe, catching the high crankcase flow under WOT that would otherwise reach the intercooler.

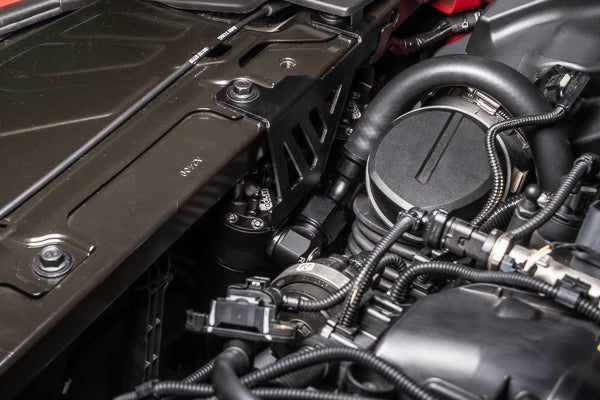

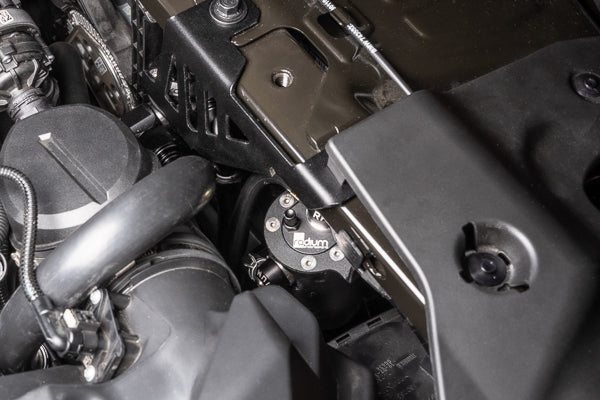

The PCV can mounts to threaded bosses on the front radiator support, clear of aftermarket turbo and intake parts, and the CCV can mounts to two holes on the front radiator support and was designed to clear strut braces. Radium catch cans are pressure sealed, so no extra inline check valve is required. Radium's patented Fluid Lock system (introduced with the 2022 redesign of its 7 fl oz catch can) prevents overfilling and traps collected fluids until the can is emptied, so an unserviced can can't release contaminants back into the intake.

Key Features

• Direct Fitment: No drilling required
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed, integrated dipstick
• Capacity: 207ml (7 fl oz)
• Fluid Lock: Patented system prevents overfilling and traps collected fluid until emptied
• Dual Kit: PCV and CCV sides covered
• Strut Brace Clearance: CCV can designed to clear strut braces

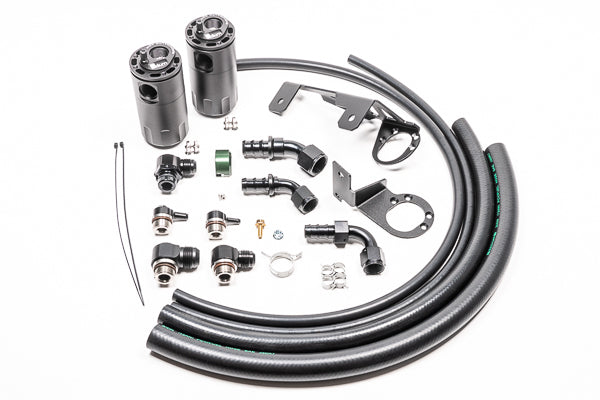

What's Included

• 20-0749-FL PCV catch can kit (catch can, MK5 GR Supra-specific bracket, AN fittings and hose ends, stainless hardware, Radium PCV hose)
• 20-0750-FL CCV catch can kit (catch can, MK5 GR Supra-specific bracket, AN fittings and hose ends, stainless hardware, Radium hose)

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – easier draining where space allows

Important Notes

• Fits the turbocharged 3.0L (B58) only
• No fixed emptying interval – check the integrated dipstick from 3–4 weeks of driving; PCV cans typically collect more than CCV cans. Empty by unscrewing the lower reservoir, or fit the Petcock Drain Kit where space allows
• Excessive oil collection can indicate an engine issue such as excessive blow-by, crankcase windage from overfilled oil, poor breather port placement or baffling, or a PCV valve leaking under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• 2020+ Toyota GR Supra (MK5) – B58 3.0L turbo only

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
