Radium Engineering Dual Catch Can Kit for Ford Focus ST 2015-2018, Fluid Lock

Radium Dual Catch Can Kit, 15-18 Ford Focus ST, Fluid Lock

Application: Ford Focus ST 2015-2018 (2.0L EcoBoost)
Part Type: Dual (PCV + CCV) catch can kit
Part Number: 20-0358-FL

A catch can separates oil and water condensation from crankcase gases before they reach the intake, preventing oil build-up on the intake, intercooler walls, throttle body and intake manifold. Cleaner intake air helps effective octane and performance, and the closed system keeps oil vapour out of the cabin.

The 20-0358-FL dual kit combines the PCV kit (mounted on the front LH core support near the radiator) with the CCV kit (mounted at the back LH side of the engine bay) for the 2015-2018 Focus ST. Fluid Lock is Radium's patented catch can design that stops the reservoir overfilling and holds collected fluid until it is emptied.

Key Features

• Dual Protection: PCV can on the front LH core support plus CCV can at the back LH side of the engine bay
• Fluid Lock Design: Radium's patented Fluid Lock mechanism stops the reservoir overfilling and holds collected fluid until it is emptied, so contaminants can't spill back into the intake
• Large Ports: 10AN ORB inlet and outlet ports with a 4AN ORB drain port
• Efficient Separation: 2-step oil separation baffling
• Easy Checking: O-ring sealed dipstick shows how much fluid has been collected
• Capacity: 207ml (7 fl oz)
• Direct Fitment: No drilling required

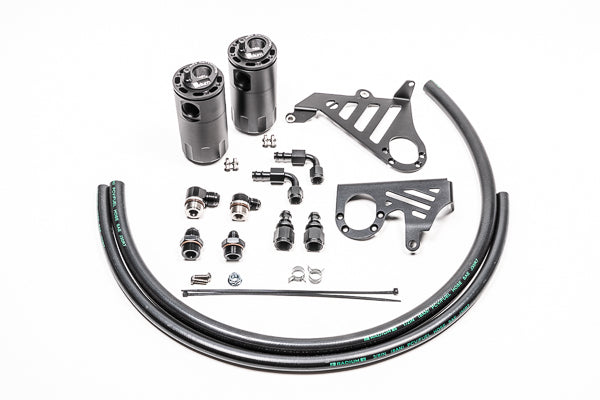

What's Included

• 2 x Fluid Lock catch cans
• 2 x mounting brackets
• 3/8" and 1/2" PCV hose
• 10AN ORB to 6AN male and 10AN ORB to 8AN male fittings
• 10AN ORB to 6AN male and 10AN ORB to 8AN male swivel fittings
• 4 x PushLok hose ends
• Mounting hardware

Optional Parts

• Radium Sound Symposer Delete kit - Ford Focus ST LW/LZ 11-18 (20-0356) – required for this kit on the Focus ST (sold separately)
• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the reservoir, where there is room underneath

Important Notes

• Requires the 20-0356 Sound Symposer Block-Off (or another symposer delete kit) – sold separately
• Radium's fitment listing does not specify RHD/LHD – please contact us to confirm fitment on Australian-delivered vehicles
• There is no fixed emptying interval – check the dipstick after 3–4 weeks of driving and repeat as needed (PCV cans generally collect more than CCV cans)
• Empty by unscrewing the lower reservoir, or fit the optional Petcock Drain Kit where there is room under the can
• Excessive oil collection can indicate an engine problem such as excessive blow-by, an overfilled sump, poor breather port placement/baffling or a PCV valve leaking under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Focus ST 2015-2018 (2.0L EcoBoost)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
