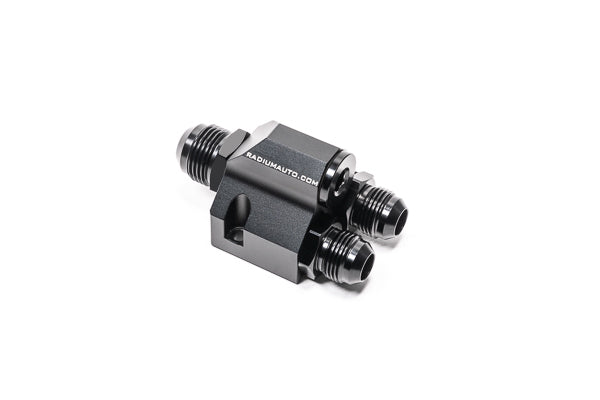

Radium Distribution Block 3 x 10AN ORB to 1 x 12AN ORB w/Fittings

Radium Distribution Block 3 x 10AN ORB to 1 x 12AN ORB w/Fittings

Application: Universal
Part Type: Fuel distribution block with fittings (1 x 12AN ORB in, 3 x 10AN ORB out)
Part Number: 20-0737

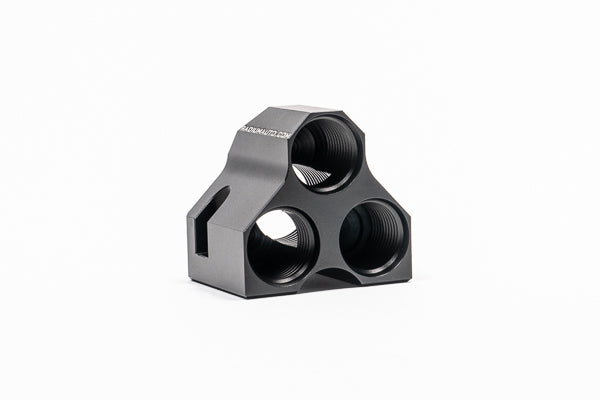

The Radium 20-0737 distribution block uses a one inlet, three outlet design – a 12AN ORB female inlet feeding three 10AN ORB female outlets. It is CNC machined from 6061 aluminium to give the most direct path for unrestricted flow.

The anodised surface resists corrosion, so the block can be used with alcohol, petrol, coolant, water, air and oil. It is supplied with the 12AN and 10AN male adapter fittings, a 10AN ORB plug and mounting hardware.

Key Features

• 1-In, 3-Out: 12AN ORB female inlet, three 10AN ORB female outlets
• CNC Machined 6061 Aluminium: Direct path for unrestricted flow
• Anodised Finish: Corrosion resistant
• Multi-Fluid: Alcohol, petrol, coolant, water, air and oil
• Fittings Included: Ready to plumb with AN male adapters

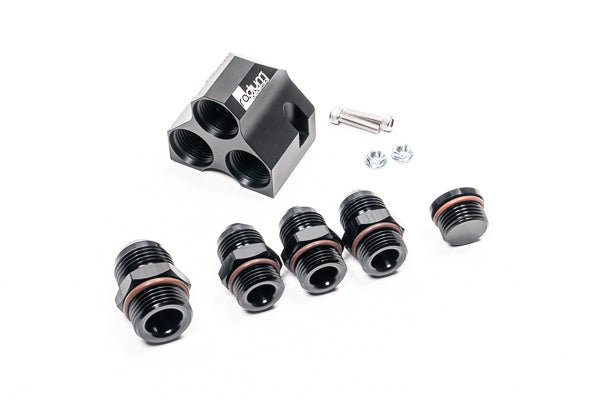

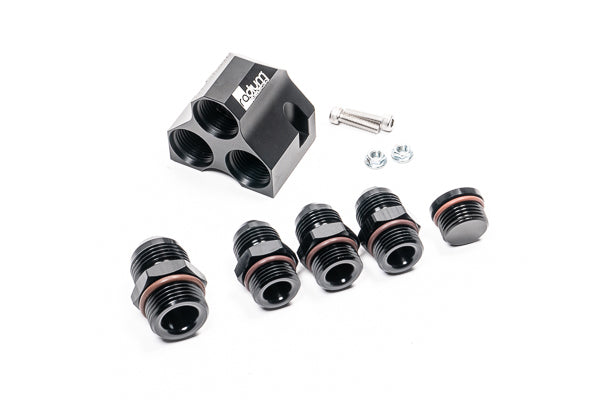

What's Included

• Aluminium threaded block (x1)
• 12AN ORB to 12AN male fitting (x1)
• 10AN ORB to 10AN male fitting (x3)
• 10AN ORB plug fitting (x1)
• Stainless M5 x 0.8mm bolts (x2)
• M5 x 0.8mm flange nuts (x2)

Optional Parts

• Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings (20-0237) – smaller 10AN ORB inlet / 3 x 8AN ORB outlet version

Important Notes

• Lubricate the O-rings with oil before installing the fittings

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
