Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings
Tax included. Shipping calculated at checkout
Description
Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings
Application: Universal
Part Type: Fuel distribution block with fittings (1 x 10AN ORB inlet, 3 x 8AN ORB outlets)
Part Number: 20-0237

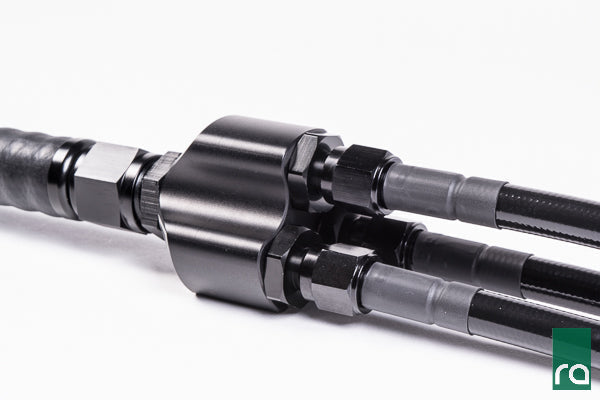

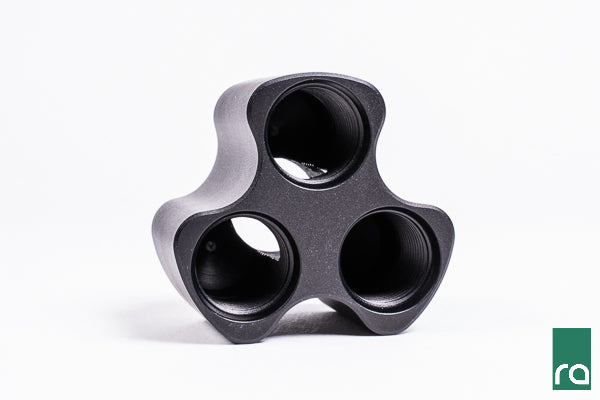

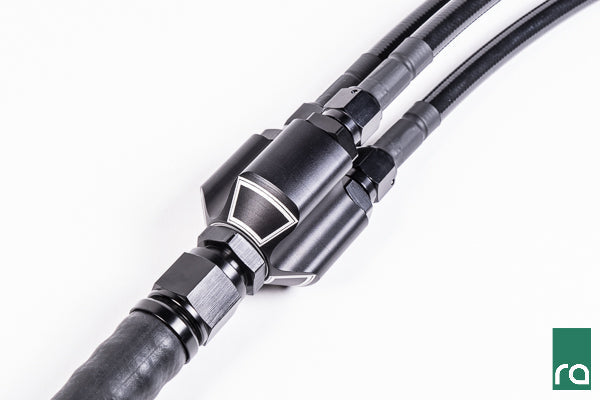

This CNC-machined 6061 aluminium distribution block from Radium Engineering provides the most direct path for unrestricted flow. It features three 8AN ORB female ports on one side and one larger 10AN ORB female port on the opposing side, and comes with a full set of fittings for 6AN, 8AN and 10AN plumbing combinations.
Because the surface is anodised for corrosion resistance, the block can be used with all fluids including alcohol (ethanol/methanol), petrol, coolant, water, air and oil.
Key Features
- Unrestricted Flow: Designed for the most direct flow path
- Port Layout: 1 x 10AN ORB female inlet and 3 x 8AN ORB female outlets on opposing sides
- Billet Construction: CNC-machined 6061 aluminium
- Anodised Finish: Corrosion resistant
- Fluid Compatibility: Alcohol (ethanol/methanol), petrol, coolant, water, air and oil
- Fittings Included: Supplied with 6AN, 8AN and 10AN male adapter fittings

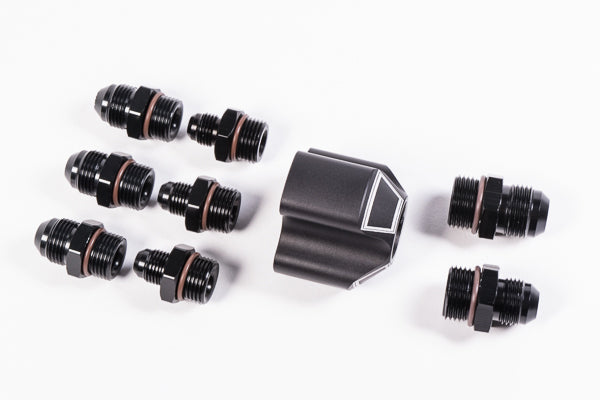

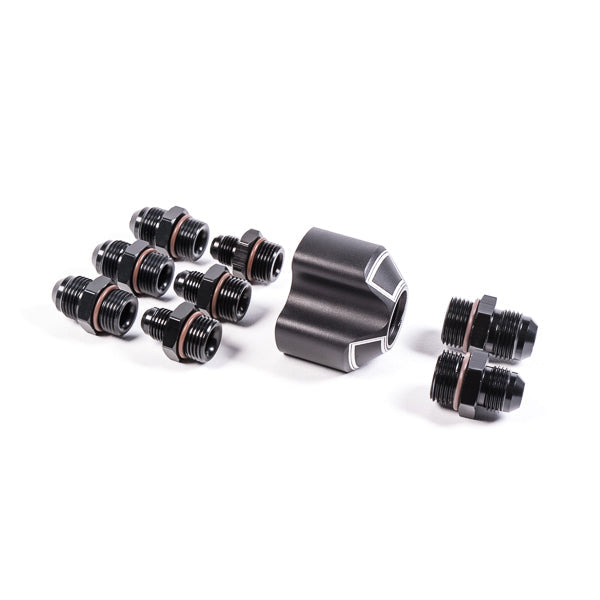

What's Included
- Aluminium threaded distribution block (x1)
- 8AN ORB to 6AN male fitting (x3)
- 8AN ORB to 8AN male fitting (x3)
- 10AN ORB to 8AN male fitting (x1)
- 10AN ORB to 10AN male fitting (x1)
Important Notes
- Lubricate the O-rings with oil before installing the fittings
Vehicle Fitment
- Universal – see Application
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
