Radium Catch Can Kit Fluid Lock Golf VW 20+

Radium Catch Can Kit Fluid Lock Golf VW 20+

Application: VW Golf Mk8 GTI and Golf R (2020-2024) – models with OEM IQ.Light matrix headlights only
Part Type: Fluid Lock CCV oil catch can kit
Part Number: 20-0887-FL

This Radium kit fits a catch can to collect oil and water condensation from the crankcase gases before they reach the intake. That keeps oil out of the intake, intercooler piping, throttle body and intake manifold and reduces hydrocarbon emissions, while the closed system keeps oil vapour out of the cabin. Everything needed for installation is included.

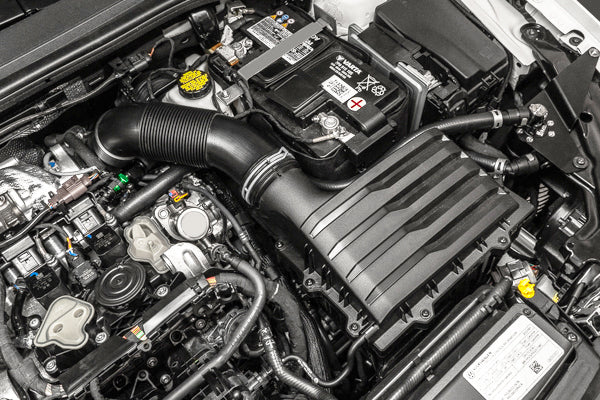

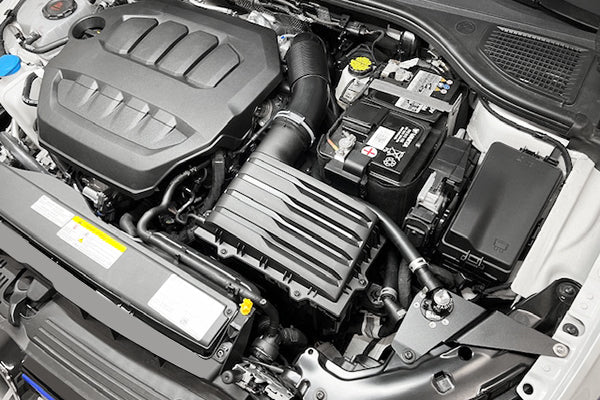

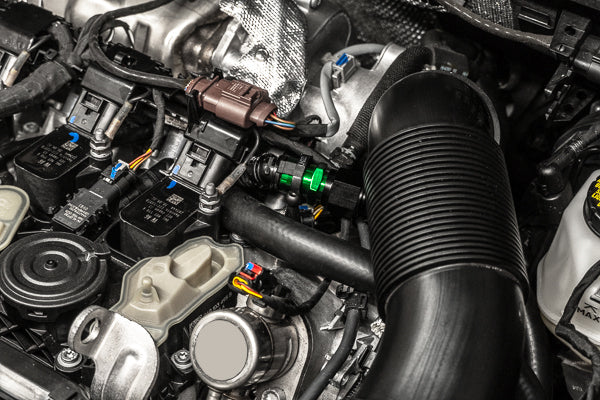

The can mounts to OEM holes on an anodised aluminium bracket behind the left-hand headlight and runs inline between the crankcase vent (CCV) port and the turbo inlet pipe. No drilling or permanent modification is needed, and it fits under the OEM engine cover. Radium's patented Fluid Lock design stops the reservoir overfilling and holds collected fluid until it is emptied.

Key Features

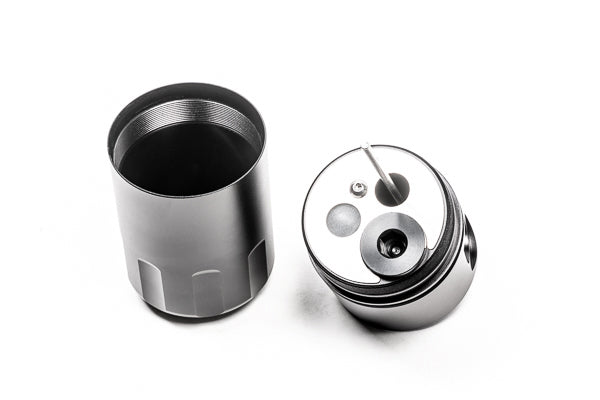

• Fluid Lock Design: Patented mechanism prevents overfilling and traps collected fluid until emptied
• Capacity: 7 fl oz (207ml)
• Two-Step Baffling: Two-stage oil separation baffling
• Integrated Dipstick: O-ring sealed dipstick for checking the fluid level
• Ports: 10AN ORB inlet and outlet, 4AN ORB drain
• Direct Fitment: Mounts to OEM holes behind the LH headlight – no drilling, fits under the engine cover
• Quick-Connect Plumbing: Quick-connect hose ends and fittings with 10AN (5/8in) PCV hose

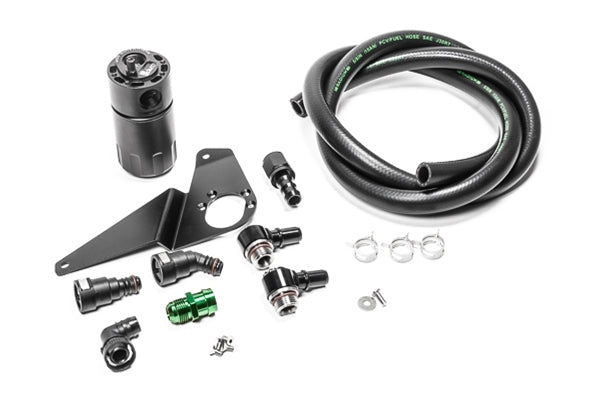

What's Included

• Baffled Fluid Lock oil catch can
• Anodised aluminium bracket
• Quick-connect hose ends
• Quick-connect fittings
• 10AN (5/8in) PCV hose
• 10AN adapter fittings
• Stainless hardware
• Spring clamps

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – optional drain kit where there is space below the can

Important Notes

• Only compatible with OEM IQ.Light matrix beam headlights
• Radium's fitment list is for US-market vehicles – contact us to confirm fitment for Australian-delivered cars
• There's no fixed emptying interval – check the dipstick from 3-4 weeks after installation and repeat as needed
• To drain, unscrew and remove the lower reservoir, or fit the optional petcock drain kit
• Excessive oil collection can indicate engine problems such as blow-by, overfilled oil, poor breather design or a PCV valve not closing under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• VW Golf GTI Mk8 (2020-2024)
• VW Golf R Mk8 (2020-2024)
• VW Golf R20 (2023)
• VW Golf GTI 380 (2024)
• VW Golf R 333 (2024)
• OEM IQ.Light matrix headlights only

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
